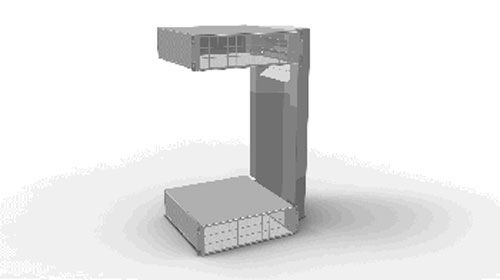

Vertiv (Knürr) SmartAisle?, e.g. SwitchTube 48,3 cm ( 19 inch ) Core 460 mm, 12-21U, for cooling the switch from the cold aisle, light gray

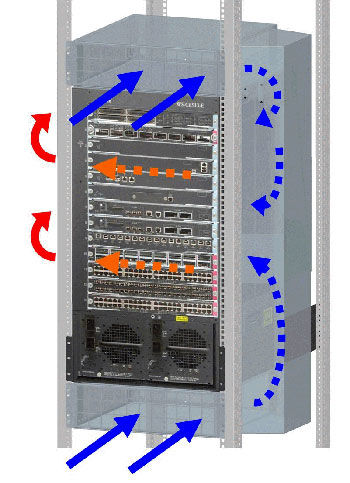

* Order-related, cannot be canceled *, Description – For applications with and without raised floor – Can be used for switches with side cooling for energy-efficient cooling – Suction of cooling air from the cold aisle (ideally with enclosure) – Suitable for Knürr Miracel® and DCM® cabinet cabinet width 800 mm – Requires 3 or 6 U of the 48,3 cm ( 19 inch ) installation space – Suitable for different switch heights – Height-variable installation of the switches in the cabinet possible – INFO: Cold/warm separation is necessary in the rack – Suitable, for example, for CISCO Catalyst 6506( -E), 6509(-E), 6513, MDS 9509 Director Material – Tube: Sheet steel – Sealing foam: PUR ether foam (UL94 HF-1) Surface – Powder-coated, RAL 7035, light gray Scope of delivery – 2 suction inserts – 1 Height-adjustable side air duct - Sealing foam - Mounting material Delivery condition - As a set IMPORTANT - Suitable for cooling a maximum of 5 kW heat load (at ?T = 13 K) per switch tube - On many switches, part of the front intake perforation is covered (as these are often very far at the front behind the front 48,3 cm ( 19 inch ) profiles). – May not be usable with switches with different cooling directions. Note Subsequent installation may be difficult due to the existing cabling and accessory components.
