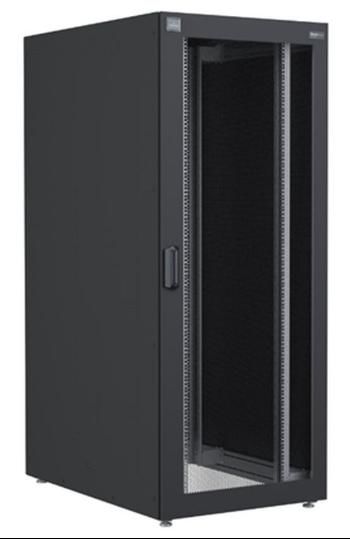

Vertiv (Knürr) MIRACEL 2.0 SERVER H2200 B800 T1200 47U

* Order-related, cannot be canceled*, – With fixed 19” installation at the front and rear for installations in accordance with IEC 297-3. – Perforated single-leaf front and rear doors. – Special 48,3 cm ( 19 inch ) server profiles to accommodate all standard 48,3 cm ( 19 inch ) servers. – Installations according to IEC 297-3. – Cable entry via base and cover. – Cable entry on the back of the lid can be completely removed, making it possible to assemble or disassemble the lid after wiring. Marshalling space – 80 mm at the front. Load capacity – 8000 N static. Protection class – IP 20. Tests – Earthing according to VDE 0100 T 540. – Earthing according to DIN EN 60950. – IP test according to EN 60529. Material/Surface – Base frame extruded aluminum. – Corner connector made of die-cast aluminum, blank. – Cladding parts made of galvanized sheet steel, powder-coated structure. – Sheet steel doors, powder-coated structure. – 19” profiles, sheet steel 2.5 mm, galvanized. Color – visible surfaces and trim parts RAL 7021 black gray. Box contents: 1 x base frame. – 4 x 19” server profiles made of sheet steel including HE marking. – 2 x side panels with quick-release fasteners. – 1 x lid with cable entry at the back (three-part sliding plates, can also be opened completely). – 1 x front door, single-leaf with handle and holder for locking cylinder. – 1 x rear door, single-leaf with handle and holder for locking cylinder. – 1 x ground set, complete (VDE 0100). – 4 x Leveling Feet Delivery condition – Assembled. Note For drawers, pull-out shelves and slide-in rails, please order profile adapter 01.147.640.9
