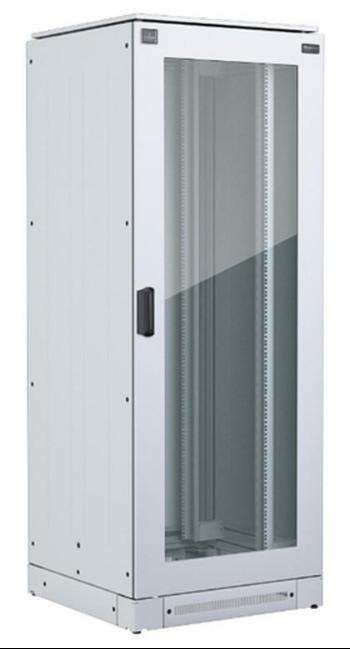

Vertiv (Knürr) cabinet, Miracel 2, 47U, B800/T 800

* Order-related, cannot be canceled * With fixed 48,3 cm ( 19 inch ) installation on the front and back for installations in accordance with IEC 297-3. Installation of slide-in rails, drawers, pull-out shelves and cable management Cable entry via base and cover. Cable entry on the lid, on the back after lid assembly or disassembly Wiring possible. Dissipation of heat loss via raised roof Door - opening angle 160° with internal hinge
Switching space
on the front 123 mm
Load capacity
8000 N static
Protection class
IP 20
Tests
Earthing according to VDE 0100 T 540 IP test according to EN 60529
Material / surface
Base frame extruded aluminum profile -Die-cast blank. Cladding parts, galvanized sheet steel, powder-coated structure. Doors, sheet steel, powder-coated structure, glass filling on the front with 4 mm toughened safety glass, 48,3 cm ( 19 inch ) profiles, 1.5 mm sheet steel, galvanized.
Color
final number for ordering: .1: RAL 7035 light gray final number for ordering: .8: RAL 7021 black gray
Scope of delivery 1 Base frame. 4 48,3 cm ( 19 inch ) hole grid profiles sheet steel including HE marking. For cabinet depth 600mm only 2x 48,3 cm ( 19 inch ) profiles 2 side parts with quick-release fasteners. 1 Raised lid with cable entry (three-part sliding plates, can also be opened completely) at the back. 1 front door, single-leaf, toughened safety glass, with handle and holder for locking cylinder. 1 rear door, single-leaf, sheet steel, with handle and holder for locking cylinder. 1 base with ventilation slots at the front and back, closed at the side, filter mat can be retrofitted. 1 earthing set, complete (VDE 0100). 4 leveling feet. Delivery
assembled
