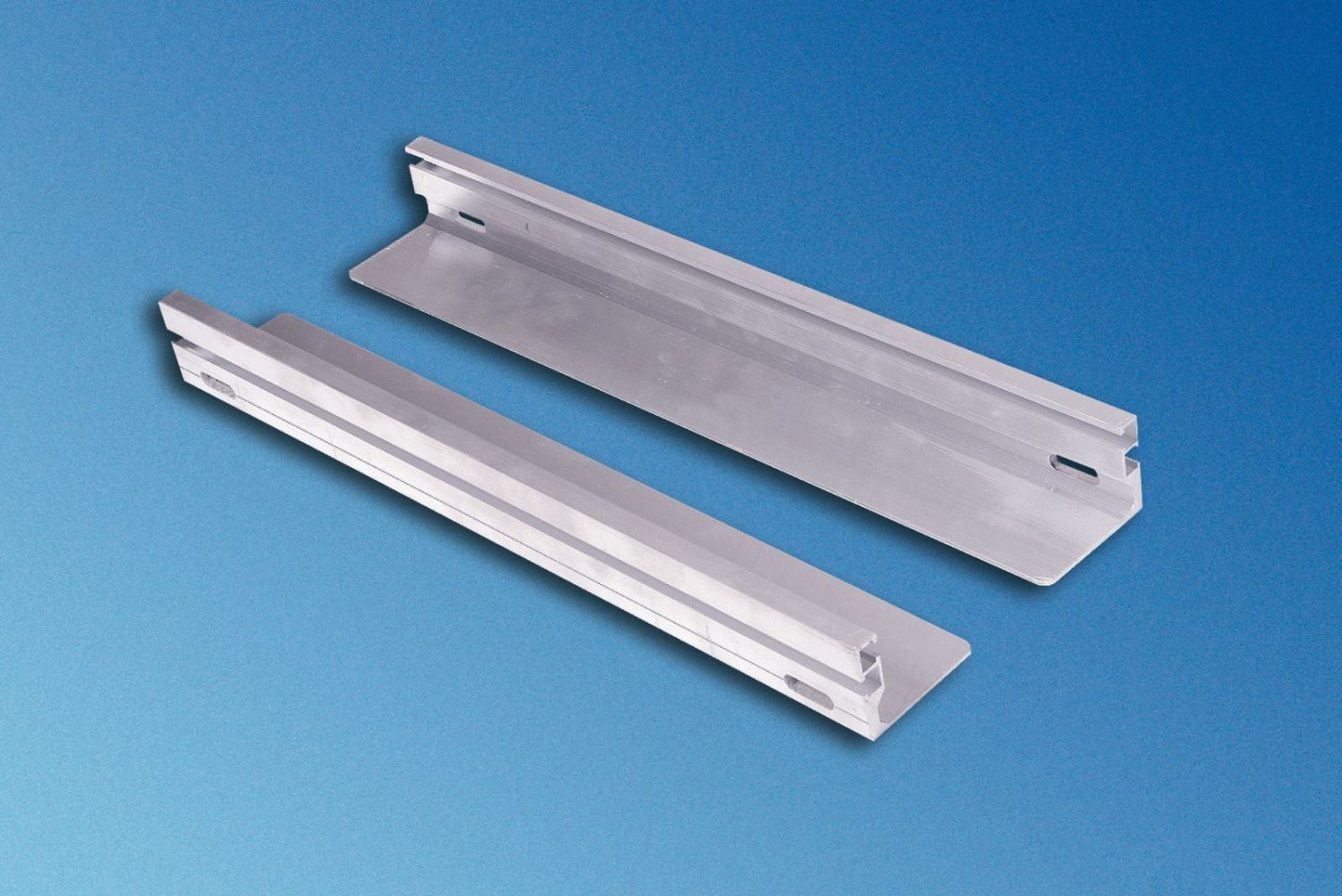

Vertiv 011031030 (Knürr) enclosure accessory L-rail, T 800, L=536 mm, pairwise
|
47,22 EUR 48,02 EUR |
|
|
( 56,19 EUR incl. VAT ) ≈ £39.48 | ≈ $52.18 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 215539 |
| Mfg Part No: | 011031030 |
| Weight: | 0.2 kg |
Product information for Vertiv 011031030:
The Vertiv chassis rail, manufacturer's number 011031030, is an accessory for 48,3 cm ( 19 inch )-enclosure and 48,3 cm ( 19 inch )-housing applications. It serves as an insertion rail for securing devices within the enclosure and enables safe and stable mounting. The rail is grey, made of aluminium extrusion profile with a wall thickness of 1.4 mm, and features a bare surface. The length is 536 mm, and it is designed for a profile spacing of 565 mm. The rails are supplied in pairs and are intended for installation in 48,3 cm ( 19 inch )-enclosure structures.
Applications
The chassis rail is specifically designed for use in 48,3 cm ( 19 inch )-enclosure and -housing applications. It is suitable for mounting servers, network devices, and other IT components installed in standard 48,3 cm ( 19 inch ) racks. The rail is suitable for enclosure rows, as it can be screwed from the inside, enabling flexible installation in row configurations. The height adjustment is adaptable to different chassis heights, ensuring universal use in various enclosure configurations.
Features and Equipment in Detail
The rail offers a maximum load capacity of 700 N when the load is evenly distributed. This corresponds to a practical load capacity sufficient for typical IT devices in rack environments. Installation is carried out using included mounting hardware, designed for securing to 48,3 cm ( 19 inch ) profiles. A total of four 48,3 cm ( 19 inch ) profiles are required for installation, and the rails are supplied in pairs. Thus, the rail is designed for use in standard 48,3 cm ( 19 inch ) rack systems.
Technology Explained Simply
The rail is made of an aluminium extrusion profile, known for its high strength and low weight characteristics. The wall thickness of 1.4 mm ensures sufficient stability, while the bare surface provides a robust and low-maintenance finish. The length of 536 mm and profile spacing of 565 mm are aligned with standard 48,3 cm ( 19 inch ) rack dimensions. The internal screw mounting allows for secure fastening, especially in enclosure rows where external accessibility may be limited.
Compatibility and Accessories
The rail is designed for use in 48,3 cm ( 19 inch )-enclosure and -housing applications and is compatible with standard 48,3 cm ( 19 inch ) rack systems. It is not intended for other profiles or non-standard enclosure constructions. The delivery includes both rails and the required mounting hardware, supplied in pairs.
Installation and Mounting
Installation is performed by screwing from the inside onto the 48,3 cm ( 19 inch ) profiles. The rails are height-adjustable to accommodate different chassis heights of the devices to be mounted. Installation requires the included mounting hardware, designed for securing to the 48,3 cm ( 19 inch ) profiles. The rails are designed for even load distribution, and the maximum load of 700 N should not be exceeded.
Operational Advantages
The rail provides stable and secure mounting for IT devices in 48,3 cm ( 19 inch ) racks. The internal screw mounting enables flexible installation in enclosure rows, improving accessibility and maintenance. Height adjustment ensures optimal fit for devices of varying heights. The use of aluminium extrusion profiles ensures high strength with low weight, facilitating handling and installation. The rail is designed for use in professional IT infrastructures and supports the reliability and stability of installed devices.
Applications
The chassis rail is specifically designed for use in 48,3 cm ( 19 inch )-enclosure and -housing applications. It is suitable for mounting servers, network devices, and other IT components installed in standard 48,3 cm ( 19 inch ) racks. The rail is suitable for enclosure rows, as it can be screwed from the inside, enabling flexible installation in row configurations. The height adjustment is adaptable to different chassis heights, ensuring universal use in various enclosure configurations.
Features and Equipment in Detail
The rail offers a maximum load capacity of 700 N when the load is evenly distributed. This corresponds to a practical load capacity sufficient for typical IT devices in rack environments. Installation is carried out using included mounting hardware, designed for securing to 48,3 cm ( 19 inch ) profiles. A total of four 48,3 cm ( 19 inch ) profiles are required for installation, and the rails are supplied in pairs. Thus, the rail is designed for use in standard 48,3 cm ( 19 inch ) rack systems.
Technology Explained Simply
The rail is made of an aluminium extrusion profile, known for its high strength and low weight characteristics. The wall thickness of 1.4 mm ensures sufficient stability, while the bare surface provides a robust and low-maintenance finish. The length of 536 mm and profile spacing of 565 mm are aligned with standard 48,3 cm ( 19 inch ) rack dimensions. The internal screw mounting allows for secure fastening, especially in enclosure rows where external accessibility may be limited.
Compatibility and Accessories
The rail is designed for use in 48,3 cm ( 19 inch )-enclosure and -housing applications and is compatible with standard 48,3 cm ( 19 inch ) rack systems. It is not intended for other profiles or non-standard enclosure constructions. The delivery includes both rails and the required mounting hardware, supplied in pairs.
Installation and Mounting
Installation is performed by screwing from the inside onto the 48,3 cm ( 19 inch ) profiles. The rails are height-adjustable to accommodate different chassis heights of the devices to be mounted. Installation requires the included mounting hardware, designed for securing to the 48,3 cm ( 19 inch ) profiles. The rails are designed for even load distribution, and the maximum load of 700 N should not be exceeded.
Operational Advantages
The rail provides stable and secure mounting for IT devices in 48,3 cm ( 19 inch ) racks. The internal screw mounting enables flexible installation in enclosure rows, improving accessibility and maintenance. Height adjustment ensures optimal fit for devices of varying heights. The use of aluminium extrusion profiles ensures high strength with low weight, facilitating handling and installation. The rail is designed for use in professional IT infrastructures and supports the reliability and stability of installed devices.
| Features | |
| Type | Chassis runner |
| Product colour | Grey |
