VDE-Kabel P056006 N2XCH 4x35 RM/16 cable halogen-free,
|
36,75 EUR |
|||||||||||
|
incl. 13,72 EUR copper surcharge ( 43,73 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 225237 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | P056006 | ||||||||||
| Weight: | 0 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for VDE-Kabel P056006:
according to VDE 0276-604
Application:
Wherever special protection against fire and fire damage for
Meschen and property Is Necessary and high security requirements
need to be met. Indoors and outdoors. Not Directly
Earth and water move.Exposure to flame, They preventDefault the
expansion of a fire and thereby develop extremely low
smoke. No Absspaltung of toxic and corrosive gases.
They are considered as insulated.

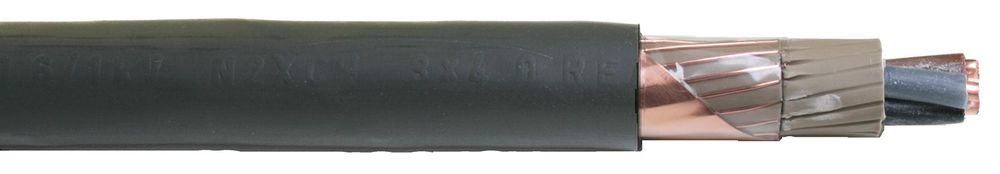

Building:
Conductor: bare copper wire according to VDE 0295,round solid or stranded
or sector stranded
> 50 mm ² are compacted
Insulation: cross-linked polyethylene 2XI1
Core identification according to VDE 0293
Filling compound
Concentric
Conductor: Bare copper wire
with counter helix of
Copper strip, PETP tape
Sheath: polymer blend
Halogen-free according to VDE 0207 T. 24
Color: black
Specifications:
Rated voltage: 06/1 kVTest voltage: 4000 V
Temperature range: +5 ° C - +50 ° C (during installation)
-30 ° C - +70 ° C (after installation)
Operating temp. +70 ° C (max.)
Bending radius: 12 x cable diameter (stranded)
Tests:
Burning characteristics: according to VDE 0472 T. 804,
Category C (= IEC 332-3)
Corrosivity of gases: according to VDE 0472 T. 813
Smoke density: according to VDE 0472 T. 816,
Category C (= IEC 1034-1)
Halogen-free: VDE 0472 T. 815
Ozone resistance: according to VDE 0472 T. 805
Features: Halogen-free
low fire propagation
minimal smoke
no corrosive gases
not directly in the ground and
Move water
Number of cores x cross-section mm ² 4 x 35 RM/16
Cu index (kg / m%): 152.6
Outer diameter approx: 31.0
Approximate weight (kg / m%): 215.0 Type: N2XCH 4X35/16
Quantity: 1 MTR
Type: N2XCH 4X35 RM/16
The final cable weight will be determined before invoicing. The calculation is based on the copper content and any additional weight due to drums, pallets, or outer packaging. Prices are subject to this subsequent calculation.
Please note that for cables, that are not in stock and must be produced, the manufacturer may need an order of a minimum length that can be 5-10km depending on cable type!
