VDE-Kabel NA2XS(F)2Y 3x1x240RM/25 12/20KV Fca medium voltage according to VDE 0276-620
|
74,22 EUR |
|
|
incl. 7,85 EUR copper surcharge ( 88,32 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1320613 |
|---|---|
| Mfg Part No: | |
| Weight: | 0.12 kg |
Product information for VDE-Kabel NA2XS(F)2Y 3 X 1 X 240,0 RM/25 12/20KV:
Application:
For laying in the ground, outdoors (however, the cable must be protected from sunlight), indoors and in cable ducts for power plants, industry and distribution networks. When laying in cable ducts and indoors, it must be taken into account that the PE sheath is not flame-retardant according to VDE 0472 T. 804, test type B.The cable is suitable for unfavorable operating conditions, especially if the penetration of water in the longitudinal direction must be avoided after mechanical damage.

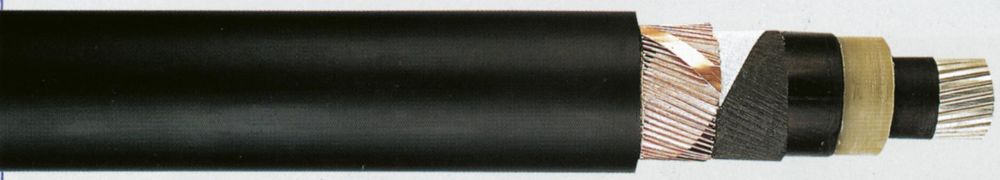

Structure:
Conductor: bare aluminum conductor in accordance with
VDE 0295, (RM) round,
multi-wire, extruded
inner conductive layer
Core insulation: VPE (cross-linked polyethylene)
extruded outer conductive layer gap sealing
(conductive tape and swelling tape)
Shield: copper wires and cross-conductive spiral
made of copper
foil banding
Outer jacket: black PE
Technical data:
Nominal voltage: 6/10 kV, 12/20 kV and 18/30 kV
Test voltage: 21 kV AC/5 min. at Uo/U=6/10 kV
30 kV AC/5 min. at Uo/U=12/20 kV
45 kV AC/5 min. at Uo/U=18/30 kV
Temperature range: -20 °C - +70 °C (during installation)
-30 °C - +70 °C (after installation)
Operating temperature: +90 °C (max.)
Bending radius: 15 x cable diameter min.
Type: NA2XS(F)2Y 3 X 1 X 240,0 RM/25 12/20KV
The final cable weight will be determined before invoicing. The calculation is based on the copper content and any additional weight due to drums, pallets, or outer packaging. Prices are subject to this subsequent calculation.
Please note that for cables, that are not in stock and must be produced, the manufacturer may need an order of a minimum length that can be 5-10km depending on cable type!
Questions & answers
What is the delivery time of VDE-Kabel NA2XS(F)2Y 3x1x240RM/25 12/20KV Fca medium voltage according to VDE 0276-620?
The article VDE-Kabel NA2XS(F)2Y 3x1x240RM/25 12/20KV Fca medium voltage according to VDE 0276-620 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of VDE-Kabel NA2XS(F)2Y 3 X 1 X 240,0 RM/25 12/20KV to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you VDE-Kabel NA2XS(F)2Y 3x1x240RM/25 12/20KV Fca medium voltage according to VDE 0276-620 always at the best possible price. We can give you a discount of 2% on VDE-Kabel NA2XS(F)2Y 3x1x240RM/25 12/20KV Fca medium voltage according to VDE 0276-620 if you choose payment in advance on ordering.
You can also send us a price proposal for your desired quantity of VDE-Kabel NA2XS(F)2Y 3x1x240RM/25 12/20KV Fca medium voltage according to VDE 0276-620 via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
