VDE-Kabel N983006 N2XCH 2x1.5 RE/1.5 sqmm B2ca, s1, d1, a1 cable halogen-free
|
4,65 EUR |
|||||||||||
|
incl. 0,52 EUR copper surcharge ( 5,53 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1427404 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | N983006 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for VDE-Kabel N983006:
according to VDE 0276-604
Application:
Wherever special protection against fire and fire damage to
people and property is necessary and high safety requirements
must be met. Indoors and outdoors. Do not lay directly in
soil and water. When exposed to flames, they prevent
a fire from spreading and produce extremely small amounts
of smoke. No release of corrosive and toxic gases.
They are considered to be insulated.

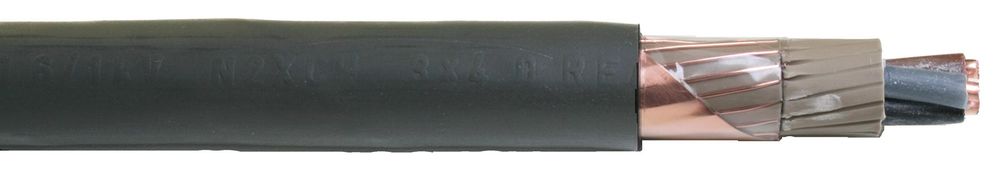

Construction:
Conductor: Bare copper conductor according to VDE 0295,
round single-wire or stranded
or sector stranded
50 mm2 are compacted
Core insulation: cross-linked polyethylene 2XI1Core marking: according to VDE 0293
Filling jacket
Concentric
conductor: made of bare copper wires
with opposing holding coil made of
copper tape, PETP tape
Outer sheath: Polymer mixture
halogen-free according to VDE 0207 T. 24
Sheath color: black
Technical data:
Nominal voltage: 06/1 kV
Test voltage: 4000 V
Temperature range: +5°C - +50°C (when laying)
-30°C - +70°C (after Laying)
Operating temperature: +70°C (max.)
Bending radius: 12 x cable diameter (multi-core)
Tests:
Combustion behavior: according to VDE 0472 T. 804,
test type C (=IEC 332-3)
Corrosiveness of the fire gases: according to VDE 0472 T. 813
Smoke gas density: according to VDE 0472 T. 816,
test type C (=IEC 1034-1)
Halogen-free: according to VDE 0472 T. 815
Ozone resistance: according to VDE 0472 T. 805
Properties: halogen-free
low fire propagation
minimal smoke development
no corrosive gases
not directly into the ground and
Lay water
Number of cores x nominal cross section mm: 4 x 2.5 RE/2.5
Cu number (Kg/% m): 12.8
Outer diameter approx.: 15.0
approx. Weight (kilograms/% meter): 33.0
' Sales unit: 1 MTR
Type: N2XCH 2 X 1,5 RE/1,5
The final cable weight will be determined before invoicing. The calculation is based on the copper content and any additional weight due to drums, pallets, or outer packaging. Prices are subject to this subsequent calculation.
Please note that for cables, that are not in stock and must be produced, the manufacturer may need an order of a minimum length that can be 5-10km depending on cable type!
