VDE-Kabel N739016 JH (St) H 100x2x0, 8 Bd halogenfr.ohne FE, fire alarm cable wires red star quad
|
28,98 EUR |
|||||||||||
|
incl. 9,07 EUR copper surcharge ( 34,49 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 239498 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | N739016 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for VDE-Kabel N739016:

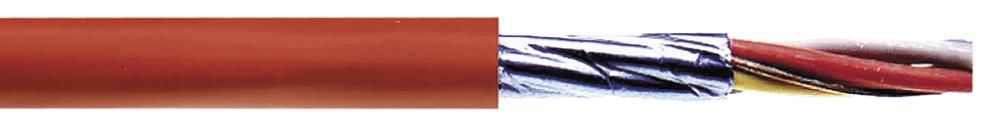

Fire alarm installation cable JH (St) H. .. Bd red
Application:
Halogen free installation cable with static screen and improved fire performance for telecommunication and information processing systems. This cable is used for telephone, measuring and signaling, in stations and private branch for telecommunication systems of all classes in dry and wet premises.
A laying on, in and under plaster is permitted. The static screen causes a reliable limit of external electromagnetic interference alternating fields. There are no fire damage by halogen-containing gases, the flue gas development is low.
Building:
Conductor: solid bare copper wire
0.6 or 0.8 mm
Insulation: cross-linked polymer HI1 by
VDE 0207 part 23
Core Kennzeichn. According to VDE 0815
Stranding: 4 cores to quads and
5 star quad to the bundle
Bundle in layers
Banding
Static
Screen: plastic laminated metal foil
(Metal side inside) and bare
Drain wire
Outer sheath: Polyolefin compound by HM2
VDE 0207 part 24 halogen-free
and flame retardant
Sheath color: gray RAL 7001 or red than
Fire Alarm Cable
Specifications: 0.6 mm 0.8 mm
Rated voltage: 300 V 300 V
Test voltage: 800V 800V
Schleifenwiderst. 130 Ohm / km 73.2 Ohm / km
Current Rating: 2.5 A 5.1 A
Operating capacity: 120 nF / km 100 nF / km
Isolationswiderst. 100 MOhm x km 100 MOhm x km
Capacitive Koppl. K1 300 pF 300 pF
(100 m, 800 Hz): K9-12 100 pF 100 pF
Leitungsdämpf. Approximately 1.7 dB / km 1.1 dB / km
(800Hz)
Temp: -. 5 ° C - + 50 ° C (during installation)
- 30 ° - 70 ° C (after installation)
Operating temperature: + 70 ° C (max.)
Bending radius: 7.5 x Leitungsdurc
Type: JH (ST) H 100x2x0, 8
Quantity: 1 MTR
Type: J-H(ST)H 100X2X0,8 B
The final cable weight will be determined before invoicing. The calculation is based on the copper content and any additional weight due to drums, pallets, or outer packaging. Prices are subject to this subsequent calculation.
Please note that for cables, that are not in stock and must be produced, the manufacturer may need an order of a minimum length that can be 5-10km depending on cable type!
Questions & answers
What is the delivery time of VDE-Kabel N739016 JH (St) H 100x2x0, 8 Bd halogenfr.ohne FE, fire alarm cable wires red star quad?
The article VDE-Kabel N739016 JH (St) H 100x2x0, 8 Bd halogenfr.ohne FE, fire alarm cable wires red star quad is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of VDE-Kabel N739016 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you VDE-Kabel N739016 JH (St) H 100x2x0, 8 Bd halogenfr.ohne FE, fire alarm cable wires red star quad always at the best possible price. We can give you a discount of 2% on VDE-Kabel N739016 JH (St) H 100x2x0, 8 Bd halogenfr.ohne FE, fire alarm cable wires red star quad if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 15 meters of VDE-Kabel N739016 JH (St) H 100x2x0, 8 Bd halogenfr.ohne FE, fire alarm cable wires red star quad we can offer you a price of 28,38 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of VDE-Kabel N739016 JH (St) H 100x2x0, 8 Bd halogenfr.ohne FE, fire alarm cable wires red star quad via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
