VDE-Kabel N730016 JH (St) H 4x2x0.8 Bd halogen-free without FE, fire red line 500m star quad

Your rating:
Average rating
Rating for VDE-Kabel N730016 JH (St) H 4x2x0.8 Bd halogen-free without FE, fire red line 500m star quad
( 4.5 / 5 ) 46 ratings

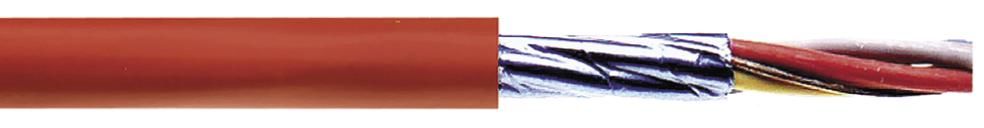

VDE-Kabel N730016
This image may differ from the desired article.
1,65 EUR
incl. 0,37 EUR copper surcharge
( 1,96 EUR incl. VAT )
2025-10-11Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline
In Stock: >500 meters
1x VDE-Kabel N730016 JH (St) H 4x2x0.8 Bd halogen-free without FE, fire red line 500m star quad
Lieske Part No.:280050
Mfg Part No: N730016
Weight:0.12 kg
Graduated prices net
From piecesPrice per meters
31,57 EUR
61,50 EUR
91,42 EUR
121,34 EUR

Product information for VDE-Kabel N730016:

Application:

Halogen-free installation cable with static shielding and improved fire performance for telecommunications and information processing systems. This cable is used for telephone, measurement and signal transmission, in the construction of intercoms and extensions for telecommunications systems of all classes in dry and damp operating locations.
Installation on, in and under plaster is permitted. The static shielding reliably limits external electromagnetic interference alternating fields. There is no fire damage caused by halogen-containing gases, and the smoke development is minimal.
Structure:
Conductor: bare copper conductor, single-wire,
0.6 or 0.8 mm diameter
Core insulation: cross-linked polymer HI1
in accordance with VDE 0207 Part 23
Core identification: in accordance with VDE 0815
Stranding: 4 cores to a star quad and
5 star quads to a bundle
Bundles in layers Banding
Static shield: plastic-coated metal foil
(metal side inside) and
bare drain wire
Outer jacket: Polyolefin mixture HM2 in accordance with
VDE 0207 Part 24 halogen-free
and flame-retardant
Jacket color: gray RAL 7001 or red as
a fire alarm cable
Technical data: 0.6 mm 0.8 mm
Nominal voltage: 300 V 300 V
Test voltage: 800 V 800 V
Loop resistance: 130 Ohm/km 73.2 Ohm/km
Current carrying capacity: 2.5 A 5.1 A
Operating capacitance: 120 nF/km 100 nF/km
Insulation resistance: 100 MOhm x km 100 MOhm x km
Capacitive coupling K1 300 pF 300 pF
(100 m, 800 Hz): K9-12 100 pF 100 pF
Line attenuation: approx. 1.7 dB/km 1.1 dB/km (800Hz)
Temperature range: - 5 °C - + 50 °C
Operating temperature: + 70 °C (max.)
Bending radius: 7.5 x cable diameter
2.5 x cable diameter for
a single bend without tension
Burning behavior: in accordance with VDE 0472 T.
804 test type C (=IEC 332-1)
Properties:
halogen-free, low fire propagation, minimal smoke
development, no corrosive gases.
Type: J-H(ST)H 4 X 2 X 0,8


Please note...
For this article, we charge 14,85 EUR for measuring, cutting and re-furling the cable. If you take a whole 100m or 500m cable reel, the charge will of course be dropped.

The final cable weight will be determined before invoicing. The calculation is based on the copper content and any additional weight due to drums, pallets, or outer packaging. Prices are subject to this subsequent calculation.

Please note that for cables, that are not in stock and must be produced, the manufacturer may need an order of a minimum length that can be 5-10km depending on cable type!
This article contains a copper surcharge of 0,37 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990

Questions & answers

What is the delivery time of VDE-Kabel N730016 JH (St) H 4x2x0.8 Bd halogen-free without FE, fire red line 500m star quad?

The article VDE-Kabel N730016 JH (St) H 4x2x0.8 Bd halogen-free without FE, fire red line 500m star quad is currently in stock

According to our experience the article is ready for dispatch within 2 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of VDE-Kabel N730016 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you VDE-Kabel N730016 JH (St) H 4x2x0.8 Bd halogen-free without FE, fire red line 500m star quad always at the best possible price. We can give you a discount of 2% on VDE-Kabel N730016 JH (St) H 4x2x0.8 Bd halogen-free without FE, fire red line 500m star quad if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 3 meters of VDE-Kabel N730016 JH (St) H 4x2x0.8 Bd halogen-free without FE, fire red line 500m star quad we can offer you a price of 1,57 EUR per piece. The more you buy, the cheaper the article will be.

You can also send us a price proposal for your desired quantity of VDE-Kabel N730016 JH (St) H 4x2x0.8 Bd halogen-free without FE, fire red line 500m star quad via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
