VDE-Kabel G460096 NHXCH E90 12x2, 5/4, 0 mm ², halogen-free sheath line
|
26,00 EUR |
|||||||||||
|
incl. 3,09 EUR copper surcharge ( 30,94 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 519069 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | G460096 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for VDE-Kabel G460096:
Application:
Halogen-free power cables with improved fire performance are used wherever special protection against fire and fire damage for people and property is required and high safety requirements must be met. The cables can be laid indoors, in air or concrete; direct laying in the ground or water is not permitted. However, laying in a pipe is permitted if precautions are taken to ensure that no water collects in the pipe. These cables are suitable for connecting devices of protection class II. When laying, care must be taken to protect the cables from external influences and mechanical damage. The cable has passed the functional integrity test according to DIN 4102 Part 12 (E30) for all standard support systems (cable trays and ladders, ceiling installation) and is therefore suitable for use in fire alarm systems, systems for alerting and giving instructions to people, emergency lighting and other backup lighting in accordance with VDE 108. The test certificate from an official materials testing institute can be provided on request. When planning cable systems with functional integrity, it must be noted that the conductor resistance at a temperature of 800 °C (final temperature for E30 testing) is approximately 4 times higher than at 20 °C.Structure:

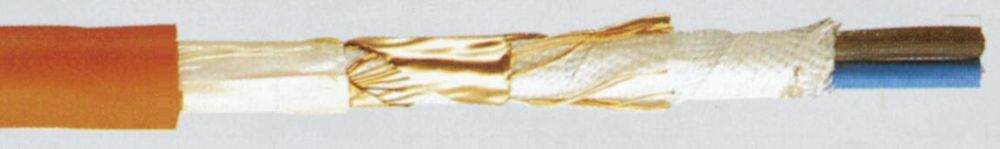

Conductor: bare copper conductor, single or multi-wire
Core insulation: cross-linked halogen-free, ceramizable 2-layer insulation HXI2,
core marking in accordance with VDE 0293-308
Common core sheath
Concentric conductor consisting of bare copper wires with opposing
holding spiral made of copper tape
PP tape
Outer sheath: halogen-free polymer mixture, orange
Technical data:
Nominal voltage: 300/500 V
Test voltage: 2000 V
Temperature range: +5 °C - +70 °C (when laying)
-30 °C - +70 °C (after laying)
Bending radius: 12 x cable diameter
Tests:
Flame retardancy: in accordance with EN 50266-2-4, IEC 60332-3 Cat.C
Insulation integrity FE 180: in accordance with VDE 0472 T. 814
Functional integrity E 90: in accordance with VDE 4102-12
Properties:
halogen-free,
fire-retardant,
minimal smoke development
, no corrosive gases.
Type: NHXCH-E90 12 X 2,5/
The final cable weight will be determined before invoicing. The calculation is based on the copper content and any additional weight due to drums, pallets, or outer packaging. Prices are subject to this subsequent calculation.
Please note that for cables, that are not in stock and must be produced, the manufacturer may need an order of a minimum length that can be 5-10km depending on cable type!
