VDE-Kabel G438096 NHXCH E90 3x35, 0/16, 0 mm ², halogen-free sheath line
|
38,76 EUR |
|||||||||||
|
incl. 11,01 EUR copper surcharge ( 46,12 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 142330 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | G438096 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for VDE-Kabel G438096:
Application:
Safety cables are used wherever special protection against fire and fire damage to people and property neces- dig is high and Notlaufzeiten must be met, such as in . airports, hospitals and schools Indoor and outdoor use, but do not lay directly in the ground and water. By resulting fire smoke production, the escape routes untraceable making and the development of toxic gases causes is prevented. Insulation from at least 180 minutes and integrity of at least 90 min security about 90 min to guarantee optimum functionality with water pressure boosting systems for fire water supply, ventilation systems , smoke and heat exhaust ventilation systems and fire- lifts etc.

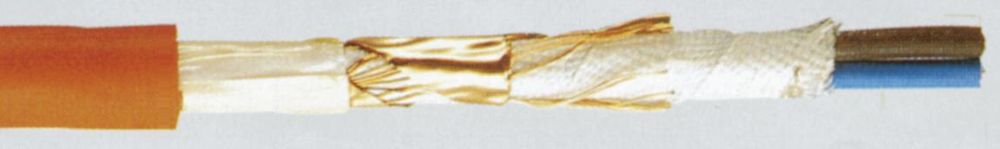

Building:
Conductor: bare copper wire according to VDE 0295,
round solid or stranded
> 50 mm ² are compacted
Mica tape
Insulation: halogen-free polymer blend
according to VDE 0207 T. 23
Core identification according to VDE 0293
Inner covering: glass silk ribbons or
extruded filling compound, foil wrapping
Concentric conductor: Bare copper wire with counter-
läufiger helix of copper tape,
PETP tape
Sheath: polymer blend
Halogen-free according to VDE 0207 T. 24
Jacket color: Orange
Specifications:
Rated voltage: 06/1 kV
Test voltage: 4000 V
Temperature range: +5 ° C - +50 ° C (during installation)
-30 ° C - +70 ° C (after installation)
Operating temp. +90 ° C (max.)
Bending radius: 10 x cable diameter (fixed)
Tests:
Burning characteristics: according to VDE 0472 T. 804,
Category C (= IEC 332-3)
Insulation: VDE 0472 T. 814 and IEC 331
Function maintenance: according to VDE 0472 T. 804 Type: E90 3-NHXCH X 35.0 / 16.0 Quantity: 1 MTR
Type: NHXCH-E90 3 X 35,0/
The final cable weight will be determined before invoicing. The calculation is based on the copper content and any additional weight due to drums, pallets, or outer packaging. Prices are subject to this subsequent calculation.
Please note that for cables, that are not in stock and must be produced, the manufacturer may need an order of a minimum length that can be 5-10km depending on cable type!
Questions & answers
What is the delivery time of VDE-Kabel G438096 NHXCH E90 3x35, 0/16, 0 mm ², halogen-free sheath line?
The article VDE-Kabel G438096 NHXCH E90 3x35, 0/16, 0 mm ², halogen-free sheath line is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of VDE-Kabel G438096 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you VDE-Kabel G438096 NHXCH E90 3x35, 0/16, 0 mm ², halogen-free sheath line always at the best possible price. We can give you a discount of 2% on VDE-Kabel G438096 NHXCH E90 3x35, 0/16, 0 mm ², halogen-free sheath line if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 10 meters of VDE-Kabel G438096 NHXCH E90 3x35, 0/16, 0 mm ², halogen-free sheath line we can offer you a price of 37,10 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of VDE-Kabel G438096 NHXCH E90 3x35, 0/16, 0 mm ², halogen-free sheath line via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
