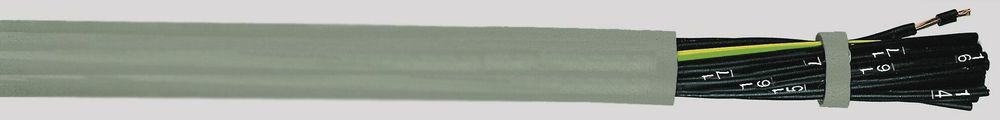

VDE-Kabel 40000706 H05VV5-F 7G0, 75 mm ² 100m ring, PVC control cable with VDE / HAR-approval
|
216,35 EUR |
|||||||||||
|
incl. 42,69 EUR copper surcharge ( 257,46 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Sales unit: 100 meters | |||||||||||
| Lieske Part No.: | 172412 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 40000706 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for VDE-Kabel 40000706:
with VDE / HAR-approval
Application:
The use of ölbeständiggen DIN VDE and HAR control line H05VV5-F is required in many areas of industry. The model is applied eg in tool and packaging machinery, conveyor and automation technology in the automotive industry in CNC machining centers.
Building:
Conductor: Bare copper, fine wire according to VDE 0295 cl 5
Insulation: PVC
Colour code:
drawing: VDE 0293
JZ = black cores with consecutive numbers and green-yellow conductor
OZ = black cores with consecutive numbers without protective conductor
twisted in layers
Sheath: special PVC compound enhances resistance to oil
Color: gray
Specifications:
Rated voltage: 300/500 V
Test voltage: 3000 V
Temperature range: - 5 ° C + 70 ° C (dynamic)
-40 ° C to +70 ° C (non-moving)
Bending radius: 12.5 x cable diameter (flexible use)
Flame resistance according to VDE 0472 T. 804 class B (IEC 332-1 =)
Oil resistance: very good to DIN VDE 0281 part 1
Number of cores x cross-section mm ²: 7G0, 75
Outer diameter approx: 10.5
Cu factor (kg / m%): 5.04
approx Weight (kg / m%): 15.5 Type: H05VV5-F 7G0, 75
Item: 100 MTR
Type: H05VV5-F 7G0,75
The item price shown refers to 100 meters VDE-Kabel 40000706
Questions & answers
What is the delivery time of VDE-Kabel 40000706 H05VV5-F 7G0, 75 mm ² 100m ring, PVC control cable with VDE / HAR-approval?
The article VDE-Kabel 40000706 H05VV5-F 7G0, 75 mm ² 100m ring, PVC control cable with VDE / HAR-approval is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of VDE-Kabel 40000706 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you VDE-Kabel 40000706 H05VV5-F 7G0, 75 mm ² 100m ring, PVC control cable with VDE / HAR-approval always at the best possible price. We can give you a discount of 2% on VDE-Kabel 40000706 H05VV5-F 7G0, 75 mm ² 100m ring, PVC control cable with VDE / HAR-approval if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 5 meters of VDE-Kabel 40000706 H05VV5-F 7G0, 75 mm ² 100m ring, PVC control cable with VDE / HAR-approval we can offer you a price of 205,93 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of VDE-Kabel 40000706 H05VV5-F 7G0, 75 mm ² 100m ring, PVC control cable with VDE / HAR-approval via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
How many units does the article contain?
VDE-Kabel 40000706 H05VV5-F 7G0, 75 mm ² 100m ring, PVC control cable with VDE / HAR-approval is offered by us in a sales unit of 100 meters If you need a larger quantity, you can contact us at any time. We will make a special offer for you
