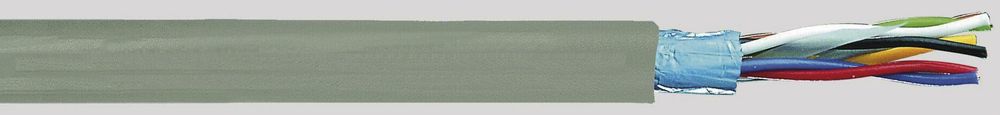

VDE-Kabel 377005004 RD-Y (ST) Y 4x2x0, 5 mm ² gray 100m ring, Instrumentation Cable
|
208,02 EUR |
|||||||||||
|
incl. 40,51 EUR copper surcharge ( 247,54 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Sales unit: 100 meters | |||||||||||
| Lieske Part No.: | 170358 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 377005004 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for VDE-Kabel 377005004:
As an installation cable, data, control and
connection cable in telecommunications and information systems as well as in trade fair control and regulation technology, for interference-free data and signal
transmission. Suitable for permanent installation in dry and damp rooms, outdoors but not without UV protection and not in the ground.
Construction
Conductor: bare copper wire, 7-wire
Core insulation: polyvinyl chloride (PVC)
Core identification: different colors, according to VDE 0815
Stranding: pairs in bundle stranding
Filling element: aluminum-coated foil
with drain wire underneath
Outer jacket: PVC
Technical data
Conductor resistance: max. 73.6 Ohm/km
Temperature range: moving -5°C to +50°C
stationary -40°C to +70°C
Peak operating voltage: max. 600 V (not for high-current installation purposes)
Test voltage: core/core 2000 V
core/shield 1000 V
Installation resistance: core/core min. 100 MOhm x km
core/shield min. 100 MOhm x km
Operating capacity: at 800 Hz max. 120 nF/km
(for cables with up to 4 double cores, 20%
exceedance of the values possible)
Characteristic impedance: at 1 kHz approx. 370 Ohm
at 10 kHz approx. 130 Ohm
Capacitive coupling: at 800 Hz max. 200 pF/100 m
(20% of the values, but at least one
value, may be up to 400 pF)
Line attenuation: at 1 kHz approx. 1.2 dB/km
at 10 kHz approx. 3.0 dB/km
Crosstalk attenuation: at 10 kHz and 500 m line length min. 60 dB
Minimum bending radius: approx. 7.5 x line diameter
Flame retardancy: VDE 0482-332-1-2/IEC 60332-1.
Type: RD-Y(ST)Y 4X2X0,5 GR
The item price shown refers to 100 meters VDE-Kabel 377005004
Questions & answers
What is the delivery time of VDE-Kabel 377005004 RD-Y (ST) Y 4x2x0, 5 mm ² gray 100m ring, Instrumentation Cable?
The article VDE-Kabel 377005004 RD-Y (ST) Y 4x2x0, 5 mm ² gray 100m ring, Instrumentation Cable is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of VDE-Kabel 377005004 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you VDE-Kabel 377005004 RD-Y (ST) Y 4x2x0, 5 mm ² gray 100m ring, Instrumentation Cable always at the best possible price. We can give you a discount of 2% on VDE-Kabel 377005004 RD-Y (ST) Y 4x2x0, 5 mm ² gray 100m ring, Instrumentation Cable if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 6 meters of VDE-Kabel 377005004 RD-Y (ST) Y 4x2x0, 5 mm ² gray 100m ring, Instrumentation Cable we can offer you a price of 200,48 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of VDE-Kabel 377005004 RD-Y (ST) Y 4x2x0, 5 mm ² gray 100m ring, Instrumentation Cable via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
How many units does the article contain?
VDE-Kabel 377005004 RD-Y (ST) Y 4x2x0, 5 mm ² gray 100m ring, Instrumentation Cable is offered by us in a sales unit of 100 meters If you need a larger quantity, you can contact us at any time. We will make a special offer for you
