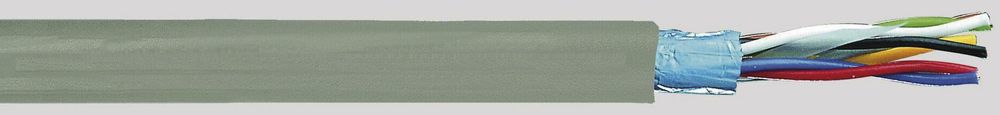

VDE-Kabel 377005002 RD-Y (ST) Y 2x2x0, 5 mm ² gray, control cables
|
1,40 EUR |
|||||||||||
|
incl. 0,21 EUR copper surcharge ( 1,67 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 318290 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 377005002 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for VDE-Kabel 377005002:
As an installation cable, data, control and
connection cable in telecommunications and information systems as well as in trade fair control and regulation technology, for interference-free data and signal
transmission. Suitable for permanent installation in dry and damp rooms, outdoors but not without UV protection and not in the ground.
Construction
Conductor: bare copper wire, 7-wire
Core insulation: polyvinyl chloride (PVC)
Core identification: different colors, according to VDE 0815
Stranding: pairs in bundle stranding
Filling element: aluminum-coated foil
with drain wire underneath
Outer jacket: PVC
Technical data
Conductor resistance: max. 73.6 Ohm/km
Temperature range: moving -5°C to +50°C
stationary -40°C to +70°C
Peak operating voltage: max. 600 V (not for high-current installation purposes)
Test voltage: core/core 2000 V
core/shield 1000 V
Installation resistance: core/core min. 100 MOhm x km
core/shield min. 100 MOhm x km
Operating capacity: at 800 Hz max. 120 nF/km
(for cables with up to 4 double cores, 20%
exceedance of the values possible)
Characteristic impedance: at 1 kHz approx. 370 Ohm
at 10 kHz approx. 130 Ohm
Capacitive coupling: at 800 Hz max. 200 pF/100 m
(20% of the values, but at least one
value, may be up to 400 pF)
Line attenuation: at 1 kHz approx. 1.2 dB/km
at 10 kHz approx. 3.0 dB/km
Crosstalk attenuation: at 10 kHz and 500 m line length min. 60 dB
Minimum bending radius: approx. 7.5 x line diameter
Flame retardancy: VDE 0482-332-1-2/IEC 60332-1.
Type: RD-Y(ST)Y2X2X0,5GR
The final cable weight will be determined before invoicing. The calculation is based on the copper content and any additional weight due to drums, pallets, or outer packaging. Prices are subject to this subsequent calculation.
Please note that for cables, that are not in stock and must be produced, the manufacturer may need an order of a minimum length that can be 5-10km depending on cable type!
