VDE-Kabel 241408 N2XSY medium voltage 1x50 RM/16 12/20kV, 12/20kV according to VDE 0276-620
|
19,68 EUR |
|||||||||||
|
incl. 5,95 EUR copper surcharge ( 23,42 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline | |||||||||||
| In Stock: >100 meters | |||||||||||
| Lieske Part No.: | 522215 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 241408 | ||||||||||
| Weight: | 0 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for VDE-Kabel 241408:
Application:
For laying underground, outdoors, indoors and in cable ducts for power plants, industry and distribution networks.The cable is easy to lay even on difficult routes due to its good laying properties.

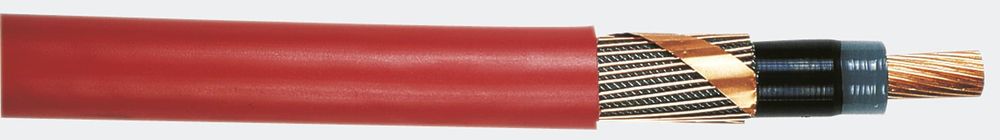

Structure:
Conductor: Bare copper conductor in accordance with VDE 0295,
(RM) round, multi-wire
(>50 mm² are compressed)
extruded inner conductive layer
Core insulation: VPE (cross-linked polyethylene)
extruded outer conductive layer
conductive tape
Shield: Copper wires and cross-conducting spiral
made of copper
foil
Outer sheath: Red PVC
Technical data:
Nominal voltage: 6/10 kV, 12/20 kV and 18/30 kV
Test voltage: 21 kV AC/5 min. at Uo/U=6/10 kV
30 kVAC/5 min. at Uo/U=12/20 kV
45 kV AC/5 min. at Uo/U=18/30 kV
Temperature range: -5 °C - +70 °C (during installation)
-30 °C - +70 °C (after installation)
Operating temperature: +90 °C (max.)
Bending radius: 15 x cable diameter
Flame retardancy: according to VDE 0472 T.
804 test type B (=IEC 332-1).
Type: N2XSY 1X50 RM/16 12/
The final cable weight will be determined before invoicing. The calculation is based on the copper content and any additional weight due to drums, pallets, or outer packaging. Prices are subject to this subsequent calculation.
Please note that for cables, that are not in stock and must be produced, the manufacturer may need an order of a minimum length that can be 5-10km depending on cable type!
Questions & answers
What is the delivery time of VDE-Kabel 241408 N2XSY medium voltage 1x50 RM/16 12/20kV, 12/20kV according to VDE 0276-620?
The article VDE-Kabel 241408 N2XSY medium voltage 1x50 RM/16 12/20kV, 12/20kV according to VDE 0276-620 is currently in stock
According to our experience the article is ready for dispatch within 2 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of VDE-Kabel 241408 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you VDE-Kabel 241408 N2XSY medium voltage 1x50 RM/16 12/20kV, 12/20kV according to VDE 0276-620 always at the best possible price. We can give you a discount of 2% on VDE-Kabel 241408 N2XSY medium voltage 1x50 RM/16 12/20kV, 12/20kV according to VDE 0276-620 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 25 meters of VDE-Kabel 241408 N2XSY medium voltage 1x50 RM/16 12/20kV, 12/20kV according to VDE 0276-620 we can offer you a price of 18,86 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of VDE-Kabel 241408 N2XSY medium voltage 1x50 RM/16 12/20kV, 12/20kV according to VDE 0276-620 via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
