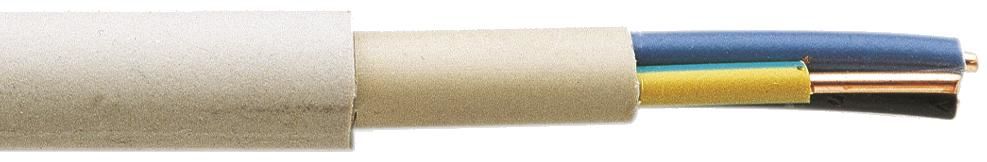

VDE-Kabel 240135 NYM-J-ring 5x16 mm ² RM 50m, PVC insulated sheathed cable
|
937,19 EUR |
|||||||||||
|
incl. 320,12 EUR copper surcharge ( 1.115,26 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline | |||||||||||
| Sales unit: 50 meters | |||||||||||
| In Stock: >1000 meters | |||||||||||
| Lieske Part No.: | 603872 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 240135 | ||||||||||
| UPC/EAN: | 4018730240135 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for VDE-Kabel 240135:
according to VDE 0250 part 204
Application:
For installations in the home, in industry, in the open, in dry and wet areas, on, in and under plaster, in masonry and in concrete (except vibrated or compressed concrete). For outdoor use, the cable must be protected from direct sunlight.
Building:
Conductor: stranded bare copper
- 10 mm ² solid > 10 mm ² stranded
- 10 mm ² solid > 10 mm ² stranded
Insulation: PVC according to VDE 0207 part 4
Marking: according to VDE 0293
Filling compound
Sheath: Grey PVC
Specifications:
Rated voltage: 300/500 V
Test voltage: 2000 V
Temperature
range: +5 ° C +70 ° C (during installation)
-40 ° C +70 ° C (after installation)
Operating temp. +70 ° C (max.)
Bending radius: 4 x cable diameter
(Fixed installation)
* VDE leaning cable NYM-J according to VDE 0250 part 204
Application:
For installations in the home, in industry, in the open, in dryand wet locations, on, in and under plaster, in masonry and in concrete
(except vibrated or compressed concrete). For outdoor applications
, the training must lead away from direct sunlight are
the.
Building:
Conductor: stranded bare copperInsulation: PVC according to VDE 0207 part 4
Marking: according to VDE 0293 core covering
Sheath: Grey PVC
Specifications:
Rated voltage: 300/500 VTest voltage: 2000 V
Temperature range: +5 ° C +70 ° C (during installation)
-40 ° C +70 ° C (after installation)
Operating temp. +70 ° C (max.)
Bending radius: 4 x cable diameter
(Fixed installation)
* VDE - based
cores x cross-section mm ²: 5 x 16.0
Weight (kg / m%): 124.9
Outer diameter approx: 24.4
Cu index (kg / m%): 76.8 Type : NYM-J 5X16 50M
Item: 50 MTR
Type: NYM-J 5X16 50M
The item price shown refers to 50 meters VDE-Kabel 240135
Questions & answers
What is the delivery time of VDE-Kabel 240135 NYM-J-ring 5x16 mm ² RM 50m, PVC insulated sheathed cable?
The article VDE-Kabel 240135 NYM-J-ring 5x16 mm ² RM 50m, PVC insulated sheathed cable is currently in stock
According to our experience the article is ready for dispatch within 2 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of VDE-Kabel 240135 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you VDE-Kabel 240135 NYM-J-ring 5x16 mm ² RM 50m, PVC insulated sheathed cable always at the best possible price. We can give you a discount of 2% on VDE-Kabel 240135 NYM-J-ring 5x16 mm ² RM 50m, PVC insulated sheathed cable if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 4 meters of VDE-Kabel 240135 NYM-J-ring 5x16 mm ² RM 50m, PVC insulated sheathed cable we can offer you a price of 918,68 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of VDE-Kabel 240135 NYM-J-ring 5x16 mm ² RM 50m, PVC insulated sheathed cable via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
How many units does the article contain?
VDE-Kabel 240135 NYM-J-ring 5x16 mm ² RM 50m, PVC insulated sheathed cable is offered by us in a sales unit of 50 meters If you need a larger quantity, you can contact us at any time. We will make a special offer for you
