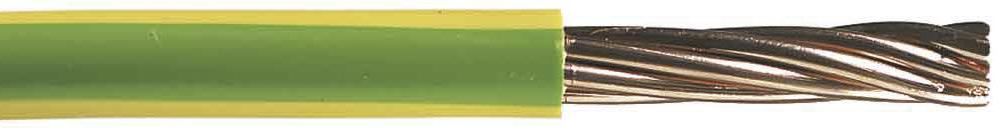

VDE-Kabel 20004601 H07V-R 70.0 mm ² green / yellow PVC insulated single conductor
|
8.368,51 EUR |
|||||||||||
|
incl. 2.846,05 EUR copper surcharge ( 9.958,53 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Sales unit: 500 meters | |||||||||||
| Lieske Part No.: | 241607 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 20004601 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for VDE-Kabel 20004601:
according to VDE 0281-3
Application:
In dry rooms, switch and distribution systems and
in tubes, on and under plaster as well as in closed installation
ducts. The following uses are for laying
provided this PVC core: The internal wiring of
appliances, switchgear and distribution and the AC or
a DC voltage up to 750 V to ground. It is not suitable for
the direct Verlegungauf racks, troughs or tubs.
Building:
Conductor: Bare copper, strandedInsulation: PVC according to VDE 0207
Coat color: according to VDE 0293
Specifications:
Rated voltage: 450/750 VTest voltage: 2500 V
Temperature range: +5 ° C - +70 ° C (during installation)
-30 ° C - +70 ° C (after installation)
Operating temp. +70 ° C (max.)
Bending radius: 15 x cable diameter (min.)
Flame resistance according to VDE 0472 T. 804
Category B (= IEC 332-1)
70.0 sq mm, OD,: 14,5 mm, Copper weight: 67.2 kg / m%
Color: green / yellow
Copper content (kg / m%): 67.2
Outer diameter approx: 14.5
Weight (Kg / m%): 75.0 Type: H07V-R 70.0 GN / YE
Quantity: 1 MTR
Type: H07V-R 70,0 GN/GE
The item price shown refers to 500 meters VDE-Kabel 20004601
Questions & answers
What is the delivery time of VDE-Kabel 20004601 H07V-R 70.0 mm ² green / yellow PVC insulated single conductor?
The article VDE-Kabel 20004601 H07V-R 70.0 mm ² green / yellow PVC insulated single conductor is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of VDE-Kabel 20004601 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you VDE-Kabel 20004601 H07V-R 70.0 mm ² green / yellow PVC insulated single conductor always at the best possible price. We can give you a discount of 2% on VDE-Kabel 20004601 H07V-R 70.0 mm ² green / yellow PVC insulated single conductor if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 25 meters of VDE-Kabel 20004601 H07V-R 70.0 mm ² green / yellow PVC insulated single conductor we can offer you a price of 8.285,67 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of VDE-Kabel 20004601 H07V-R 70.0 mm ² green / yellow PVC insulated single conductor via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
How many units does the article contain?
VDE-Kabel 20004601 H07V-R 70.0 mm ² green / yellow PVC insulated single conductor is offered by us in a sales unit of 500 meters If you need a larger quantity, you can contact us at any time. We will make a special offer for you
