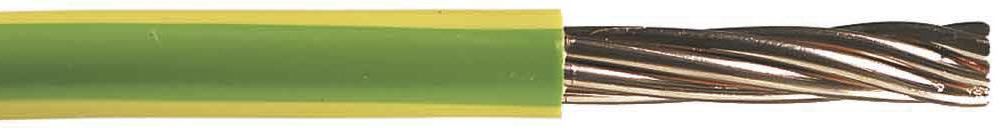

VDE-Kabel 20003201 H07V-R 35 mm ² green / yellow ring 50m, PVC insulated single conductor
|
433,23 EUR |
|||||||||||
|
incl. 142,30 EUR copper surcharge ( 515,54 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Sales unit: 50 meters | |||||||||||
| Lieske Part No.: | 642186 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 20003201 | ||||||||||
| Weight: | 35.5 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for VDE-Kabel 20003201:
according to VDE 0281-3
Application:
In dry rooms, switch and distribution systems and
in tubes, on and under plaster as well as in closed installation
channels. The following uses are for laying
this PVC control cable provided: the internal wiring of
Devices, switchboards and distribution and the AC voltage or
a DC voltage up to 750 V to ground. It is not suitable for
direct Verlegungauf racks, troughs or tubs.
Building:
Conductor: Bare copper, strandedInsulation: PVC according to VDE 0207
Coat color: according to VDE 0293
Specifications:
Rated voltage: 450/750 VTest voltage: 2500 V
Temperature range: +5 ° C - +70 ° C (during installation)
-30 ° C - +70 ° C (after installation)
Operating temp. +70 ° C (max.)
Bending radius: 15 x cable diameter (min.)
Flame resistance according to VDE 0472 T. 804
Category B (= IEC 332-1)
35.0 sq mm, OD,: 10,5 mm, Copper weight: 33.6 kg / m%
Color: green / yellow
Copper content (kg / m%): 33.6
Outer diameter approx: 10.5
Weight (Kg / m%): 35.0 Type: H07V-R 35.0 GNGE
Item: 50 MTR
Type: H07V-R 35,0 GNGE
The item price shown refers to 50 meters VDE-Kabel 20003201
Questions & answers
What is the delivery time of VDE-Kabel 20003201 H07V-R 35 mm ² green / yellow ring 50m, PVC insulated single conductor?
The article VDE-Kabel 20003201 H07V-R 35 mm ² green / yellow ring 50m, PVC insulated single conductor is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of VDE-Kabel 20003201 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you VDE-Kabel 20003201 H07V-R 35 mm ² green / yellow ring 50m, PVC insulated single conductor always at the best possible price. We can give you a discount of 2% on VDE-Kabel 20003201 H07V-R 35 mm ² green / yellow ring 50m, PVC insulated single conductor if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 6 meters of VDE-Kabel 20003201 H07V-R 35 mm ² green / yellow ring 50m, PVC insulated single conductor we can offer you a price of 428,87 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of VDE-Kabel 20003201 H07V-R 35 mm ² green / yellow ring 50m, PVC insulated single conductor via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
How many units does the article contain?
VDE-Kabel 20003201 H07V-R 35 mm ² green / yellow ring 50m, PVC insulated single conductor is offered by us in a sales unit of 50 meters If you need a larger quantity, you can contact us at any time. We will make a special offer for you
