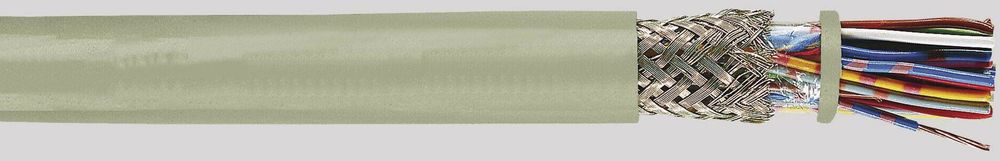

VDE-Kabel 1202003 JE LIYCY 8x2x0, 5, electronic cable with copper shielding
|
3,83 EUR |
|||||||||||
|
incl. 1,07 EUR copper surcharge ( 4,56 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 707694 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 1202003 | ||||||||||
| Weight: | 0 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for VDE-Kabel 1202003:
The cables are used to transmit signals and measured values in symmetrical circuits in control and regulation technology, as well as to transmit information in data and process computer systems. Suitable for flexible use and fixed installation in dry and damp rooms in and under plaster, but also for fixed installation on external walls of buildings. With blue outer sheath for intrinsically safe systems. Installation cables are not approved for high-voltage installation purposes or for underground installation.
Construction
Conductor: bare copper wire 7 x 3.0 mm
Core insulation: PVC, 0.3 mm wall thickness
Core identification: according to Siemens color code
Stranding: 4 pairs in a bundle
Bundle in layers
of foil
Shielding: tinned copper braid
Sheath: PVC gray or blue
Technical data
Conductor resistance of the loop: max. 78.4 Ohm/km
Insulation resistance: min 100 MOhmxkm
Capacitive coupling: max. 200 pF/100 m
Operating capacitance at 800 Hz: max. 100 nF/km
Test voltage:
Core/core 500 V 50 Hz ^1 min.
Core/shield 2000 V 50 Hz ^1 min.
Peak operating voltage: 225 V
Temperature range:
moving: -5 °C to + 50 °C
stationary: -30 °C to +70 °C
Bending radius: 7.5 x cable diameter.
Type: JE-LIYCY-BD 8X2X0,5
The final cable weight will be determined before invoicing. The calculation is based on the copper content and any additional weight due to drums, pallets, or outer packaging. Prices are subject to this subsequent calculation.
Please note that for cables, that are not in stock and must be produced, the manufacturer may need an order of a minimum length that can be 5-10km depending on cable type!
