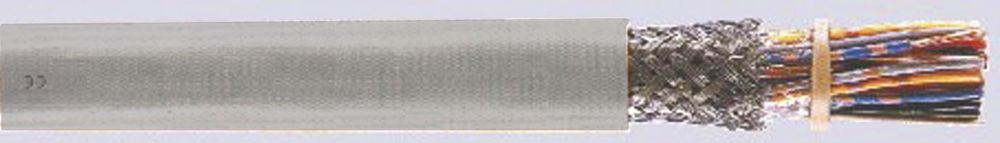

VDE-Kabel 1202001 JE LIYCY 2x2x0, 5, electronic cable with copper shielding
|
696,03 EUR |
|||||||||||
|
incl. 219,15 EUR copper surcharge ( 828,28 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Sales unit: 500 meters | |||||||||||
| Lieske Part No.: | 240649 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 1202001 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for VDE-Kabel 1202001:
The cables are used to transmit signals and measured values in symmetrical circuits in control and regulation technology, as well as to transmit information in data and process computer systems. Suitable for flexible use and fixed installation in dry and damp rooms in and under plaster, but also for fixed installation on external walls of buildings. With blue outer sheath for intrinsically safe systems. Installation cables are not approved for high-voltage installation purposes or for underground installation.
Construction
Conductor: bare copper wire 7 x 3.0 mm
Core insulation: PVC, 0.3 mm wall thickness
Core identification: according to Siemens color code
Stranding: 4 pairs in a bundle
Bundle in layers
of foil
Shielding: tinned copper braid
Sheath: PVC gray or blue
Technical data
Conductor resistance of the loop: max. 78.4 Ohm/km
Insulation resistance: min 100 MOhmxkm
Capacitive coupling: max. 200 pF/100 m
Operating capacitance at 800 Hz: max. 100 nF/km
Test voltage:
Core/core 500 V 50 Hz ^1 min.
Core/shield 2000 V 50 Hz ^1 min.
Peak operating voltage: 225 V
Temperature range:
moving: -5 °C to + 50 °C
stationary: -30 °C to +70 °C
Bending radius: 7.5 x cable diameter.
Type: JE-LIYCY-BD 2X2X0,5
The item price shown refers to 500 meters VDE-Kabel 1202001
Questions & answers
What is the delivery time of VDE-Kabel 1202001 JE LIYCY 2x2x0, 5, electronic cable with copper shielding?
The article VDE-Kabel 1202001 JE LIYCY 2x2x0, 5, electronic cable with copper shielding is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of VDE-Kabel 1202001 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you VDE-Kabel 1202001 JE LIYCY 2x2x0, 5, electronic cable with copper shielding always at the best possible price. We can give you a discount of 2% on VDE-Kabel 1202001 JE LIYCY 2x2x0, 5, electronic cable with copper shielding if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 5 meters of VDE-Kabel 1202001 JE LIYCY 2x2x0, 5, electronic cable with copper shielding we can offer you a price of 688,88 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of VDE-Kabel 1202001 JE LIYCY 2x2x0, 5, electronic cable with copper shielding via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
How many units does the article contain?
VDE-Kabel 1202001 JE LIYCY 2x2x0, 5, electronic cable with copper shielding is offered by us in a sales unit of 500 meters If you need a larger quantity, you can contact us at any time. We will make a special offer for you
