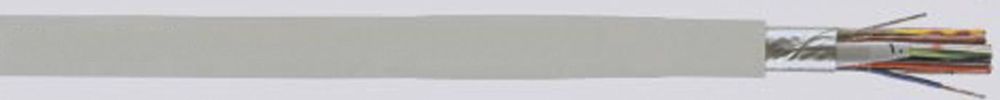

VDE-Kabel 109150-00 JE-Y (ST) Y 2x2x0, 8 mm ² BD, installation data line
|
0,75 EUR |
|||||||||||
|
incl. 0,21 EUR copper surcharge ( 0,89 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 832768 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 109150-00 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for VDE-Kabel 109150-00:
The cables are used to transmit signals and measured values in symmetrical circuits in control and regulation technology, as well as to transmit information in data and process computer systems. Suitable for permanent installation in dry and damp rooms in and under plaster, but also for permanent installation on external walls of buildings. Installation cables are
not approved for high-voltage installation purposes or for underground installation.
Structure
Cu conductor: bare, solid 0.8 mm Ø
PVC core insulation: YI3 in accordance with DIN VDE 0482
Pair marking: in accordance with DIN VDE 0815
(Siematic color code)
Stranding: Cores
stranded in pairs with optimal lay lengths
4 pairs in a bundle
Bundles stranded in layers.
Foil wrapping: Shielding made of plastic-
laminated aluminum foil
Bare copper drain
wire Sheath: gray (RAL 7032) or blue (RAL 5015)
Technical data
Conductor resistance of the loop: max. 73.2 Ohm/km
Insulation resistance: min. 100 mOhmxkm
Capacitive coupling: max. 200 pF/100 m
Operating capacitance at 800 Hz: max. 100 nF/km
Test voltage:
Core/core: 500 V 50 Hz 1 min.
Core/shield: 2000 V 50 Hz 1 min.
Peak operating voltage: 225 V
Temperature range:
moving: -5 °C to +50 °C
stationary: -30 °C to +70 °C
Bending radius: 7.5 x cable diameter.
Type: JE-Y(ST)Y-BD 2X20,8
The final cable weight will be determined before invoicing. The calculation is based on the copper content and any additional weight due to drums, pallets, or outer packaging. Prices are subject to this subsequent calculation.
Please note that for cables, that are not in stock and must be produced, the manufacturer may need an order of a minimum length that can be 5-10km depending on cable type!
Questions & answers
What is the delivery time of VDE-Kabel 109150-00 JE-Y (ST) Y 2x2x0, 8 mm ² BD, installation data line?
The article VDE-Kabel 109150-00 JE-Y (ST) Y 2x2x0, 8 mm ² BD, installation data line is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of VDE-Kabel 109150-00 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you VDE-Kabel 109150-00 JE-Y (ST) Y 2x2x0, 8 mm ² BD, installation data line always at the best possible price. We can give you a discount of 2% on VDE-Kabel 109150-00 JE-Y (ST) Y 2x2x0, 8 mm ² BD, installation data line if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 50 meters of VDE-Kabel 109150-00 JE-Y (ST) Y 2x2x0, 8 mm ² BD, installation data line we can offer you a price of 0,73 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of VDE-Kabel 109150-00 JE-Y (ST) Y 2x2x0, 8 mm ² BD, installation data line via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
