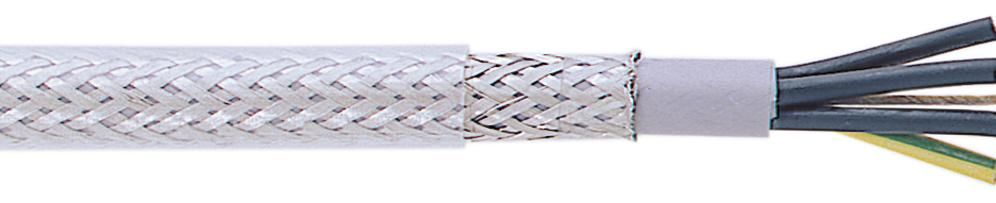

VDE-Kabel 10703413 YSLYCY-JZ 4G2, 5 mm ² 500m drum, control cable with copper shielding transparent
|
2.501,90 EUR |
|||||||||||
|
incl. 707,28 EUR copper surcharge ( 2.977,26 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Sales unit: 500 meters | |||||||||||
| Lieske Part No.: | 661158 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 10703413 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for VDE-Kabel 10703413:
Application:
Steuerungseitung for control equipments on machine tools, conveyor and
Assembly lines, conveyor systems, equipment, etc. Suitable for
fixed installation or flexible application, with free movement without
Tensile stress or forced movements. The
Number YSLYCY-JZ cable, in dry, damp and wet
Spaces used for medium mechanical stresses are
the. When used as a signal or measuring line are high-frequency
te external influences parried by the copper screen.
Building:
Conductor: Bare copper, fine wire
according to VDE 0295 cl 5
Insulation: PVC
Core identification to VDE 0293, JZ = black cores with
consecutive numbers and
green-yellow earth core
OZ = black cores with consecutive run-the
Numbers printed without protective conductor
twisted in layers
PVC inner jacket gray
Shielding: tinned copper braid
Jacket: PVC
Color: transparent
Specifications:
Rated voltage: 300/500 V
Test voltage: 4000 V
Temperature - 5 ° C + 70 ° C (dynamic)
range: -30 ° C + 70 ° C (non-moving)
Bending radius: 4 x cable diameter (fixed)
15 x cable diameter
(Flexible use)
Flame resistance according to VDE 0472 T. 804
Category B (= IEC 332-1)
Features: YSLY control lines are largely
Starting resistant to the action
of chemicals such as acids and alkalis
and certain hydrocarbon
connections
Number of cores x cross-section mm ²: 4 x 2.50 Outer diameter approx: 11.7 Cu index (kg / m%): 17.15 approx Weight (kg / m%): 24.4 Type: YSLYCY-JZ 4X2, 5 item: 500 MTR
Type: YSLYCY-JZ 4X2,5
The item price shown refers to 500 meters VDE-Kabel 10703413
Questions & answers
What is the delivery time of VDE-Kabel 10703413 YSLYCY-JZ 4G2, 5 mm ² 500m drum, control cable with copper shielding transparent?
The article VDE-Kabel 10703413 YSLYCY-JZ 4G2, 5 mm ² 500m drum, control cable with copper shielding transparent is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of VDE-Kabel 10703413 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you VDE-Kabel 10703413 YSLYCY-JZ 4G2, 5 mm ² 500m drum, control cable with copper shielding transparent always at the best possible price. We can give you a discount of 2% on VDE-Kabel 10703413 YSLYCY-JZ 4G2, 5 mm ² 500m drum, control cable with copper shielding transparent if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 2 meters of VDE-Kabel 10703413 YSLYCY-JZ 4G2, 5 mm ² 500m drum, control cable with copper shielding transparent we can offer you a price of 2.421,14 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of VDE-Kabel 10703413 YSLYCY-JZ 4G2, 5 mm ² 500m drum, control cable with copper shielding transparent via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
How many units does the article contain?
VDE-Kabel 10703413 YSLYCY-JZ 4G2, 5 mm ² 500m drum, control cable with copper shielding transparent is offered by us in a sales unit of 500 meters If you need a larger quantity, you can contact us at any time. We will make a special offer for you
