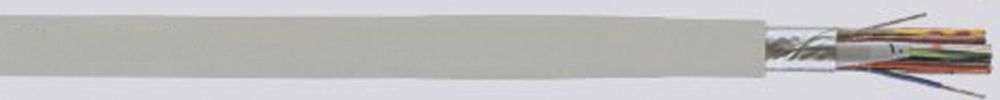

VDE-Kabel 105809-00 JE-Y (ST) Y 4x2x0, 8 mm ² BD, installation data line
|
543,32 EUR |
|||||||||||
|
incl. 542,72 EUR copper surcharge ( 646,55 EUR incl. VAT ) ≈ £466.17 | ≈ $629.71 plus delivery charges: 53,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline | |||||||||||
| In Stock: >1000 meters | |||||||||||
| Lieske Part No.: | 161343 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 105809-00 | ||||||||||
| Weight: | 0.123 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for VDE-Kabel 105809-00:
The cables are used to transmit signals and measured values in symmetrical circuits in control and regulation technology, as well as to transmit information in data and process computer systems. Suitable for permanent installation in dry and damp rooms in and under plaster, but also for permanent installation on external walls of buildings. With blue outer sheath for intrinsically safe systems. Installation cables are
not approved for high-voltage installation purposes or for underground installation.
Structure
Cu conductor: bare, solid 0.8 mm Ø
PVC core insulation: YI3 in accordance with DIN VDE 0482
Pair marking: in accordance with DIN VDE 0815
(Siematic color code) Stranding: Cores stranded in pairs
with optimal lay lengths 4 pairs to a bundle Bundles stranded in layers. Foil wrapping: Shielding made of plastic- laminated aluminum foil Bare copper drain wire Sheath: gray (RAL 7032) or blue (RAL 5015) Technical data Conductor resistance of the loop: max. 73.2 Ohm/km Insulation resistance: min. 100 mOhmxkm Capacitive coupling: max. 200 pF/100 m Operating capacitance at 800 Hz: max. 100 nF/km Test voltage: Core/core: 500 V 50 Hz 1 min. Core/shield: 2000 V 50 Hz 1 min. Peak operating voltage: 225 V Temperature range: moving: -5 °C to +50 °C stationary: -30 °C to +70 °C Bending radius: 7.5 x cable diameter.
Type: JE-Y(ST)Y-BD 4X2
The final cable weight will be determined before invoicing. The calculation is based on the copper content and any additional weight due to drums, pallets, or outer packaging. Prices are subject to this subsequent calculation.
Please note that for cables, that are not in stock and must be produced, the manufacturer may need an order of a minimum length that can be 5-10km depending on cable type!
Questions & answers
What is the delivery time of VDE-Kabel 105809-00 JE-Y (ST) Y 4x2x0, 8 mm ² BD, installation data line?
The article VDE-Kabel 105809-00 JE-Y (ST) Y 4x2x0, 8 mm ² BD, installation data line is currently in stock
According to our experience the article is ready for dispatch within 2 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of VDE-Kabel 105809-00 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you VDE-Kabel 105809-00 JE-Y (ST) Y 4x2x0, 8 mm ² BD, installation data line always at the best possible price. We can give you a discount of 2% on VDE-Kabel 105809-00 JE-Y (ST) Y 4x2x0, 8 mm ² BD, installation data line if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 50 meters of VDE-Kabel 105809-00 JE-Y (ST) Y 4x2x0, 8 mm ² BD, installation data line we can offer you a price of 543,31 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
