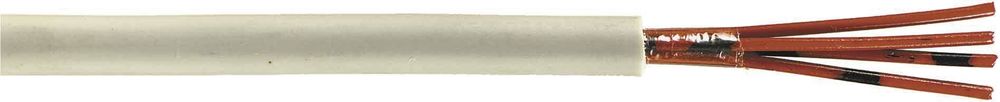

VDE-Kabel 105636-00 I-YY BD 2x2x0, 6, telecommunications installation cable
|
66.459,55 EUR |
|||||||||||
|
incl. 66.332,20 EUR copper surcharge ( 79.086,86 EUR incl. VAT ) ≈ £57,022.29 | ≈ $77,026.62 plus delivery charges: 53,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |||||||||||
| Sales unit: 500 meters | |||||||||||
| Lieske Part No.: | 152891 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 105636-00 | ||||||||||
| Weight: | 3.5 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for VDE-Kabel 105636-00:
according to VDE 0815
Application:
Preferably in the stations and private branch for
telecommunications equipment, in dry and damp rooms
as well as for
fixed installation on outer walls with protection from solar radiation.
Building:
Conductor: copper conductor, solidblank
0.6 mm diameter
Insulation: PVC
Marking:
according to VDE 0815
Stranding: 4 cores for star
of four
star quad bundle to
bundle the cable core
Film
Sheath: Grey PVC
Specifications:
Rated voltage: 300 VTest voltage: 800 V
DC loop resistance: 130 / km
Current Rating: 2.5 A
Operating capacity: 100 nF / km
Insulation resistance: 100 km Mx
Capacitive
Couplings: K1 (800 Hz, 100 m) 300pF
cable attenuation: 1.7 dB / km (800 Hz)
Temperature range: - 5 ° C - + 50 ° C
(during installation)
- 30 ° C - + 70 ° C ( after laying)
Operating temperature: + 70 ° C (max.)
Bending radius: 7,5 x cable diameter
2,5 x cable diameter
for single bending without
Train
Flame resistance according to VDE 0472 T. 804
Category B (= IEC 332-1)
Diameter in mm: 2 x 2 x 0.6
Outer diameter approx: 4.5
Cu index (kg / m%): 1.1 Type: I-YY 2X2X0, 6
Quantity: 1 MTR
Type: I-YY 2X2X0,6
The item price shown refers to 500 meters VDE-Kabel 105636-00
