VDE-Kabel 105073 YSLYSY-JZ 4G16 mm ², Stahlgeschirmt transparent

Your rating:
Average rating
Rating for VDE-Kabel 105073 YSLYSY-JZ 4G16 mm ², Stahlgeschirmt transparent
( 4.3 / 5 ) 6 ratings

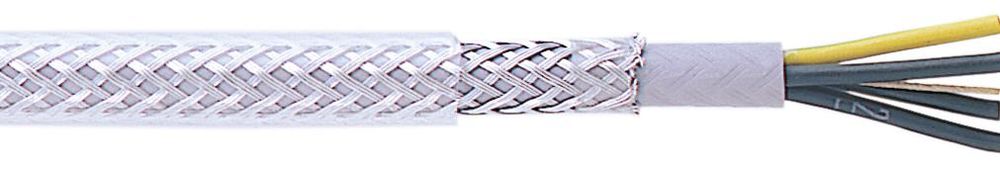

VDE-Kabel 105073
This image may differ from the desired article.
20,48 EUR
incl. 4,56 EUR copper surcharge
( 24,37 EUR incl. VAT )
2025-09-13Delivery time on requestinfo_outline
1x VDE-Kabel 105073 YSLYSY-JZ 4G16 mm ², Stahlgeschirmt transparent
Lieske Part No.:784513
Mfg Part No: 105073
Weight:0 kg
Graduated prices net
From piecesPrice per meters
1519,52 EUR
3018,57 EUR
7017,61 EUR
10016,66 EUR

Product information for VDE-Kabel 105073:

Control line YSLYSY-JZ steel wire mesh Application: Control cable for control equipments on machine tools, conveyor and assembly lines, conveyor systems, equipment, etc. Suitable for fixed installation or flexible application, with free movement without tensile stress or forced movements. The control line YSLYSY-JZ can be used in dry, damp and wet locations with higher mechanical stresses are the. The steel wire has a high mechanical protection and an additional electrical shielding effect. Construction: Conductor: Bare copper, fine wire according to VDE 295 class 5 Insulation: PVC Core identification: VDE 293, JZ = black cores with consecutive numbers and green-yellow protective conductor OZ = black cores with consecutive run-the numbers printed without protective conductor stranded in layers PVC inner jacket gray shield: tinned steel wire braid Jacket: PVC Color: Transparent Specification: Rated voltage: 3/5 V Test voltage: 4 V Temperature - 5 ° C ± 7 ° C (dynamic) range: -3 ° C ± 7 ° C (not moved) bending radius: 6 x cable diameter (fixed-sets), 2 x cable diameter (flexible use) Flame resistance: according to VDE 472 T. 8 4 type B (IEC = 332 -
) Features: YSLY control lines are Largely resistant to the action of chemicals: such as acids and alkalis and Certain hydrocarbon compounds of cores x cross-section mm ² 4 x
6, Outer diameter approx: 25, Cop (kg /% m): 6
, about 4 weight (kg / m%):
23.4 Type: YSLYSY JZ-4X
6 item:
MTR
Type: YSLYSY-JZ 4X16


Please note...
For this article, we charge 14,85 EUR for measuring, cutting and re-furling the cable. If you take a whole 100m or 500m cable reel, the charge will of course be dropped.

The final cable weight will be determined before invoicing. The calculation is based on the copper content and any additional weight due to drums, pallets, or outer packaging. Prices are subject to this subsequent calculation.

Please note that for cables, that are not in stock and must be produced, the manufacturer may need an order of a minimum length that can be 5-10km depending on cable type!
This article contains a copper surcharge of 4,56 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990

Questions & answers

What is the delivery time of VDE-Kabel 105073 YSLYSY-JZ 4G16 mm ², Stahlgeschirmt transparent?

The article VDE-Kabel 105073 YSLYSY-JZ 4G16 mm ², Stahlgeschirmt transparent is currently not in stock und muss auftragsbezogen bestellt werden.

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of VDE-Kabel 105073 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you VDE-Kabel 105073 YSLYSY-JZ 4G16 mm ², Stahlgeschirmt transparent always at the best possible price. We can give you a discount of 2% on VDE-Kabel 105073 YSLYSY-JZ 4G16 mm ², Stahlgeschirmt transparent if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 15 meters of VDE-Kabel 105073 YSLYSY-JZ 4G16 mm ², Stahlgeschirmt transparent we can offer you a price of 19,52 EUR per piece. The more you buy, the cheaper the article will be.

You can also send us a price proposal for your desired quantity of VDE-Kabel 105073 YSLYSY-JZ 4G16 mm ², Stahlgeschirmt transparent via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
