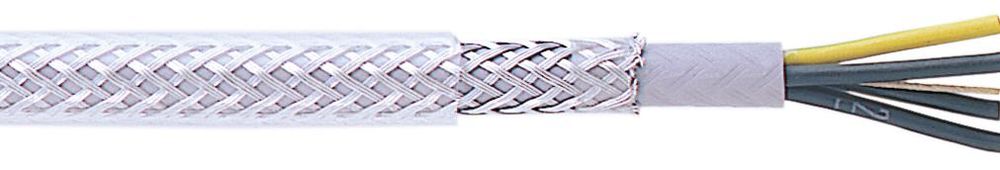

VDE-Kabel 105027 YSLYSY-JZ 3G1, 0qmm 50m ring Stahlgeschirmt transparent
|
99,87 EUR |
|||||||||||
|
incl. 12,20 EUR copper surcharge ( 118,85 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Sales unit: 50 meters | |||||||||||
| Lieske Part No.: | 234816 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 105027 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for VDE-Kabel 105027:
Application:
Control cable for control equipments on machine tools, conveyor and
Assembly lines, conveyor systems, equipment, etc. Suitable for
fixed installation or flexible application, with free movement without
Tensile stress or forced movements. The
Control line YSLYSY-JZ, in dry, damp and wet
Spaces used for higher mechanical stresses are
the. The steel wire has a high mechanical protection
and in addition, an electric shielding effect.
Building:
Conductor: Bare copper, fine wireaccording to VDE 0295 cl 5
Insulation: PVC
Core identification to VDE 0293, JZ = black cores with
consecutive numbers and
green-yellow earth core
OZ = black cores with consecutive run-
the numbers printed without protective conductor
twisted in layers
PVC inner jacket gray
Shielding: tinned steel wire braid
Jacket: PVC
Color: transparent
Specifications:
Rated voltage: 300/500 VTest voltage: 4000 V
Temperature - 5 ° C + 70 ° C (dynamic)
range: -30 ° C + 70 ° C (non-moving)
Bending radius: 6 x cable diameter (fixed-
sets), 20 x cable diameter
(Flexible use)
Flame resistance according to VDE 0472 T. 804
Category B (= IEC 332-1)
Features: YSLY control lines are largely
Starting resistant to the action
of chemicals such as acids
and bases and
Hydrocarbons
Number of cores x cross-section mm ²: 25 x 0.75
Outer diameter approx: 17.0
Cu factor (kg / m%): 18.0
approx Weight (kg / m%): 48.3 Type: YSLYSY-JZ 3X1, 0
Item: 50 MTR
Type: YSLYSY-JZ 3X1,0
The item price shown refers to 50 meters VDE-Kabel 105027
Questions & answers
What is the delivery time of VDE-Kabel 105027 YSLYSY-JZ 3G1, 0qmm 50m ring Stahlgeschirmt transparent?
The article VDE-Kabel 105027 YSLYSY-JZ 3G1, 0qmm 50m ring Stahlgeschirmt transparent is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of VDE-Kabel 105027 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you VDE-Kabel 105027 YSLYSY-JZ 3G1, 0qmm 50m ring Stahlgeschirmt transparent always at the best possible price. We can give you a discount of 2% on VDE-Kabel 105027 YSLYSY-JZ 3G1, 0qmm 50m ring Stahlgeschirmt transparent if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 6 meters of VDE-Kabel 105027 YSLYSY-JZ 3G1, 0qmm 50m ring Stahlgeschirmt transparent we can offer you a price of 94,61 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of VDE-Kabel 105027 YSLYSY-JZ 3G1, 0qmm 50m ring Stahlgeschirmt transparent via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
How many units does the article contain?
VDE-Kabel 105027 YSLYSY-JZ 3G1, 0qmm 50m ring Stahlgeschirmt transparent is offered by us in a sales unit of 50 meters If you need a larger quantity, you can contact us at any time. We will make a special offer for you
