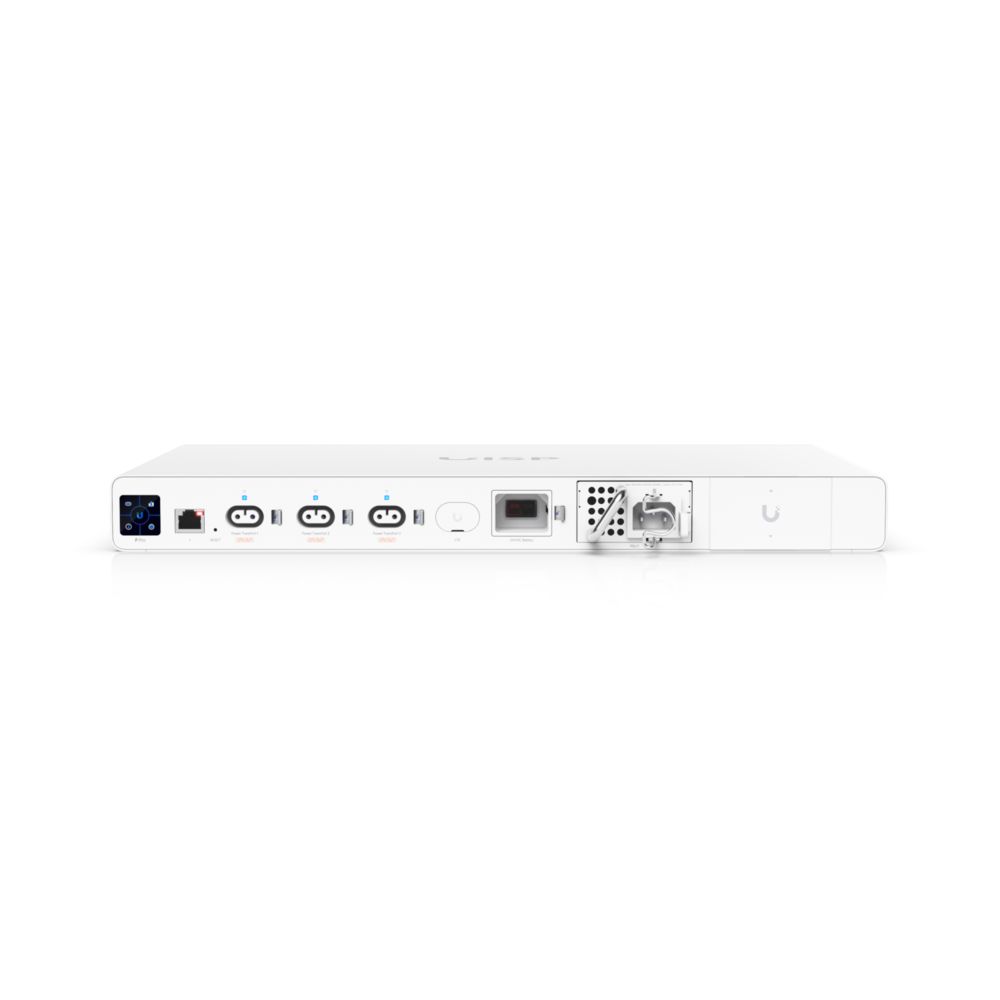

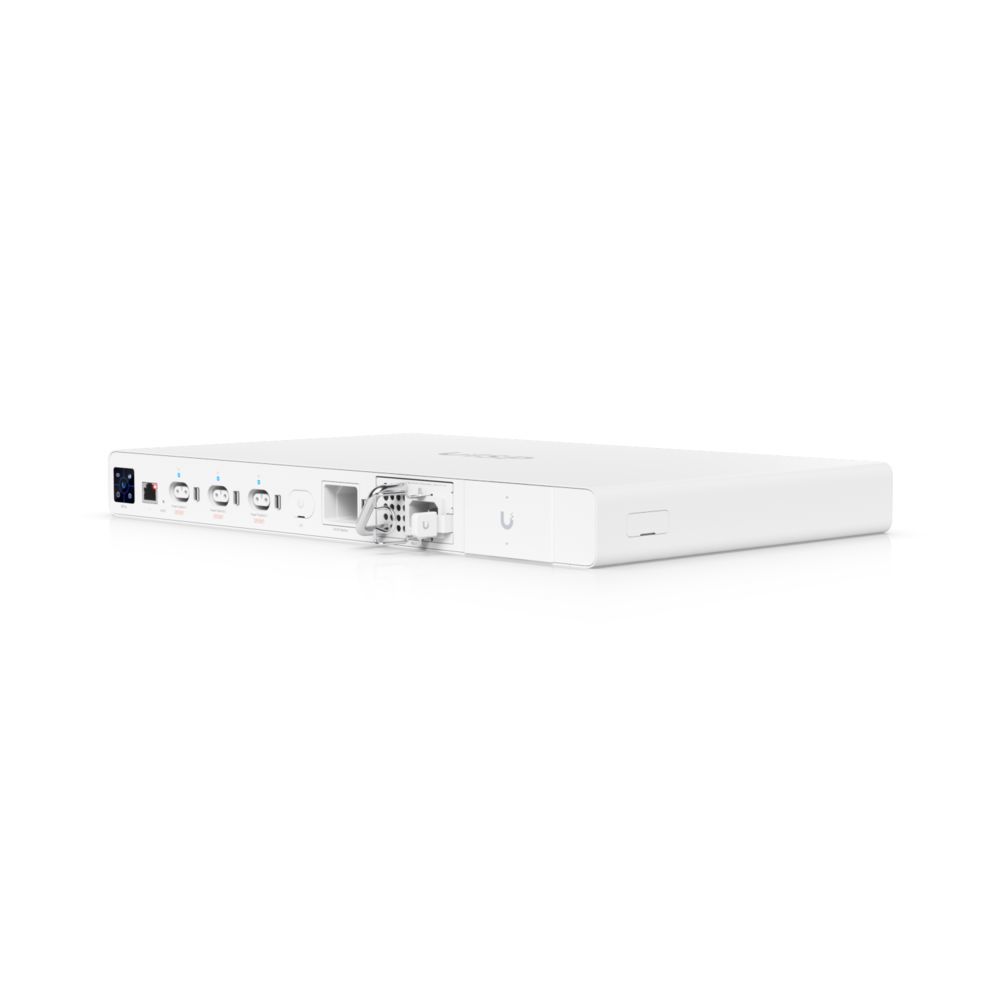

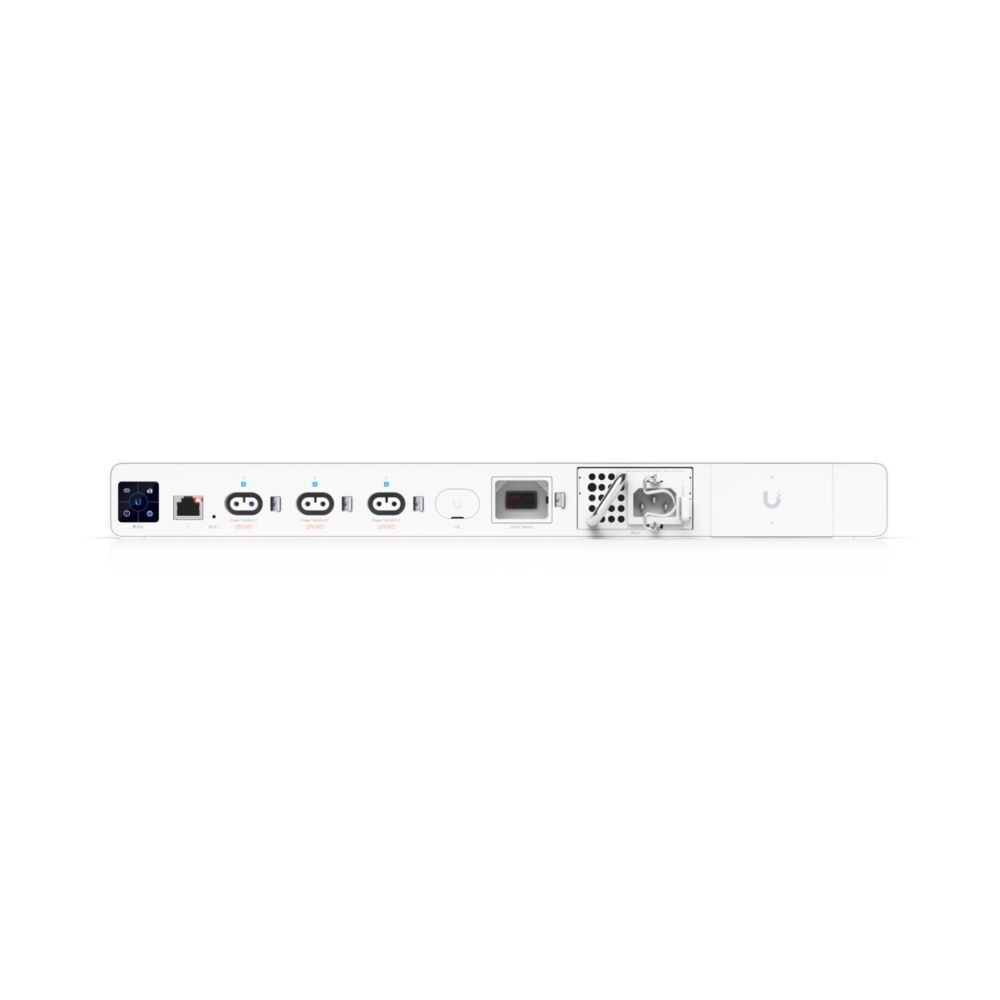

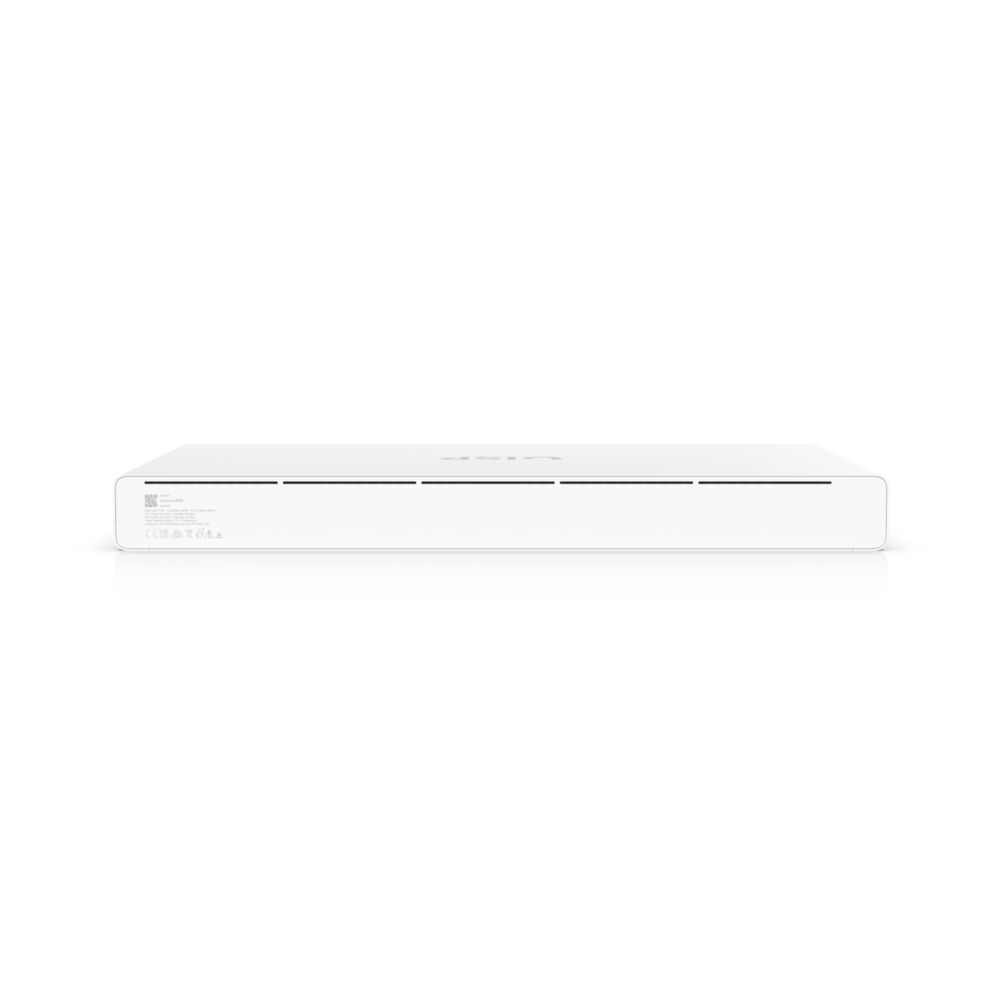

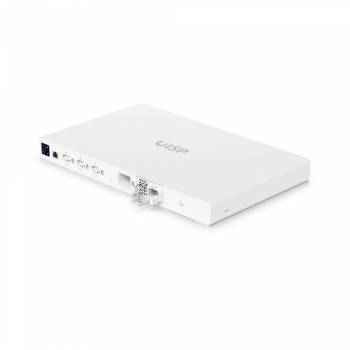

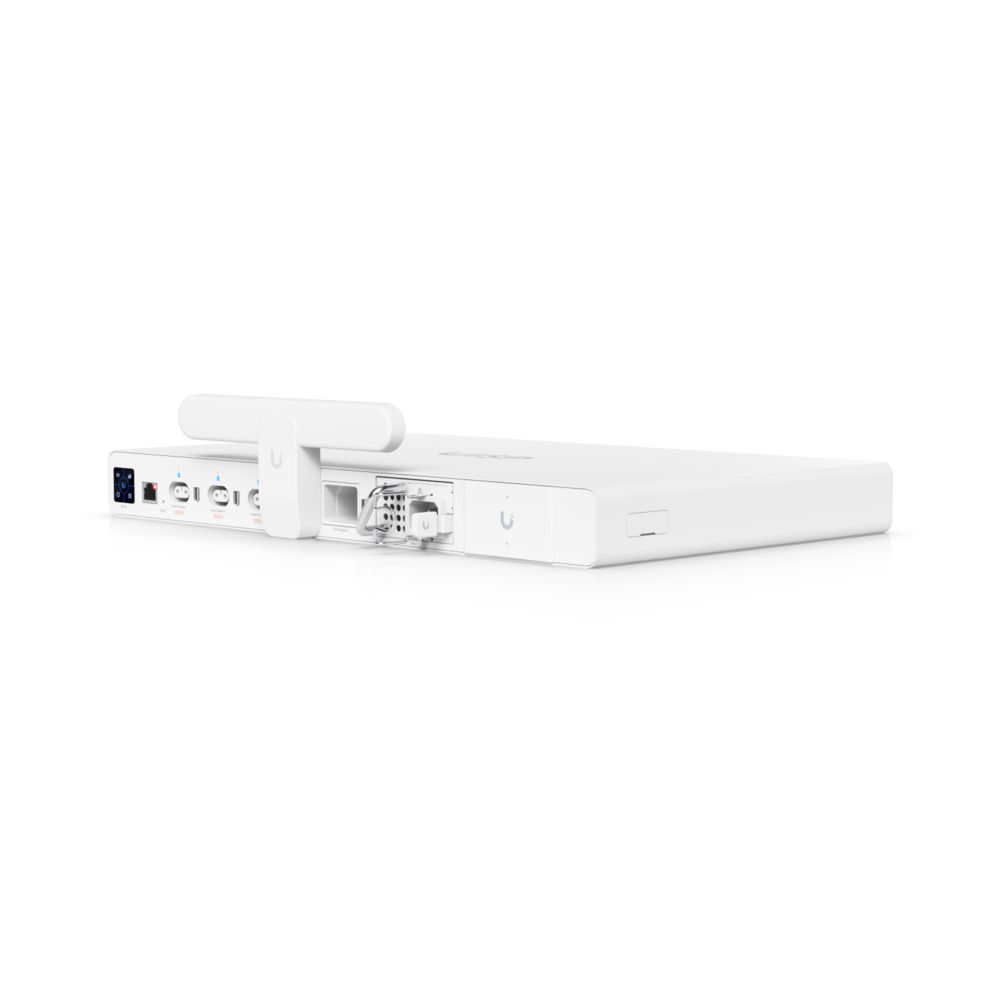

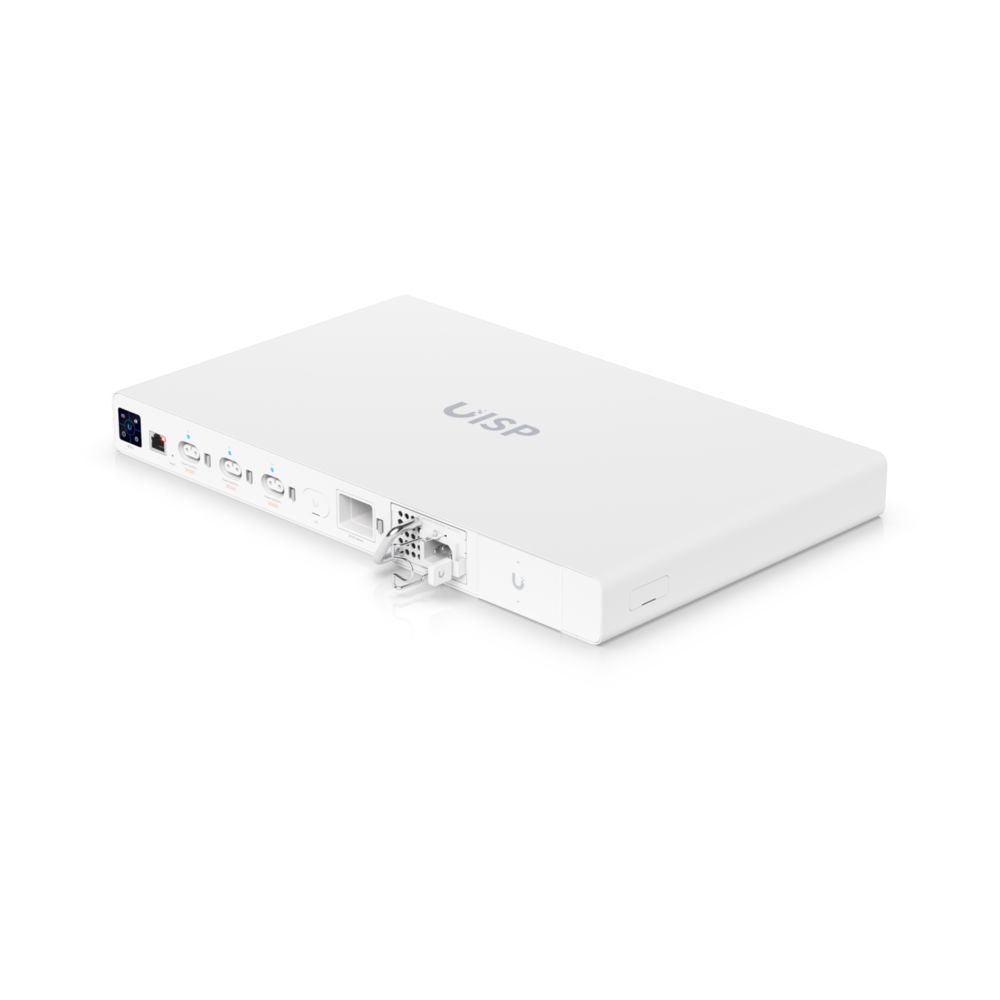

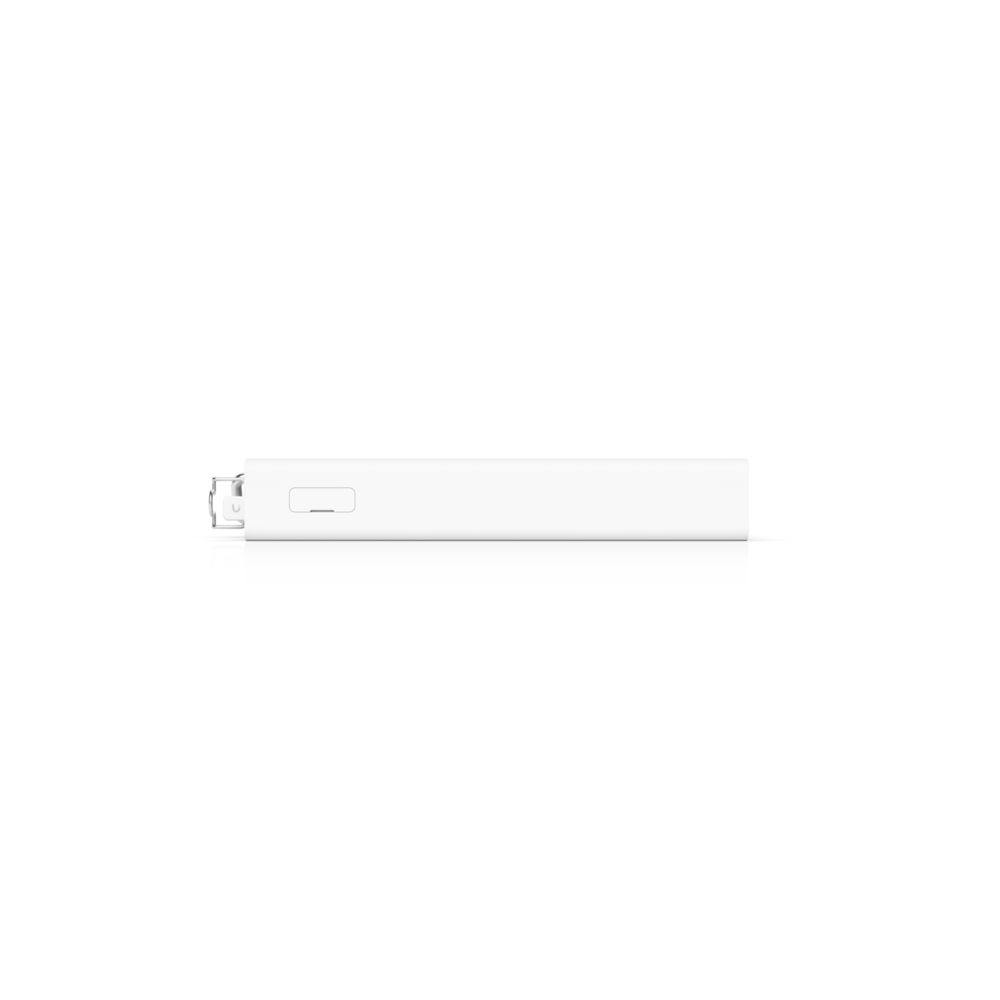

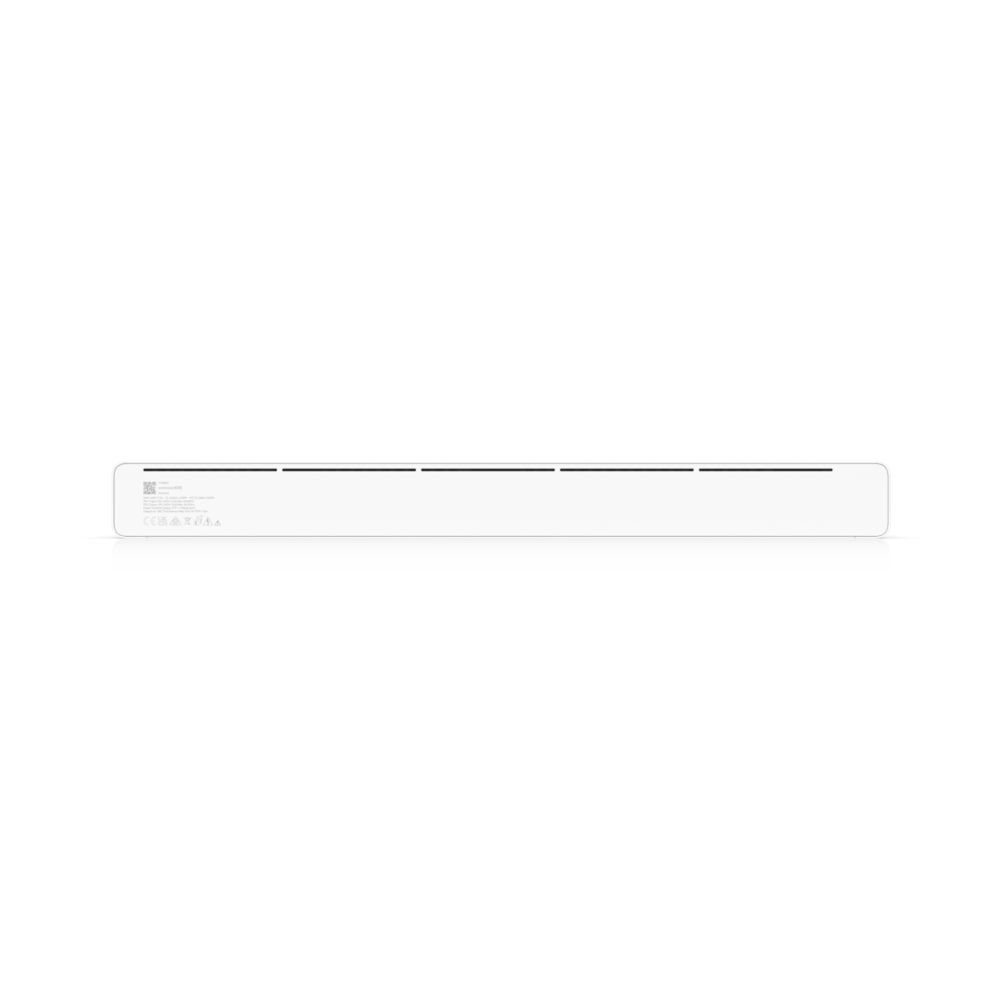

Ubiquiti UISP Power Professional / Delivers up to 480W / DC battery port / UISP-P-Pro
|
467,46 EUR 484,45 EUR |
|
|
( 556,28 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 2114588 |
|---|---|
| Mfg Part No: | UISP-P-Pro |
| Weight: | 4.16 kg |
Product information for Ubiquiti UISP-P-Pro:
Uninterruptible power management system to support high capacity WISP deployment sites. (3) Power TransPort outputs
Delivers up to 480W* (27V DC) to supported UISP devices
(2) Power supply bays with (1) 250W AC/DC power supply included
(1) DC battery connector for an external 24V lead-acid battery (not included)
Supports SMS over LTE notification (Cat M1)
Compatible with UISP Console, UISP Router (installed with UISP Box), UISP Router Pro, UISP Switch (installed with UISP Box), UISP Switch Pro
Technical Specifications Mechanical Dimensions 442.4 x 267.5 x 43.7 mm (17.4 x 10.5 x 4,3 cm ( 1,7 inch )) Weight 4.16 kg (9.2 lbs) Enclosure Materials SGCC steel, polycarbonate/ABS Hardware Network Interface (1) 10/100 MbE RJ45 LAN port Management interface Ethernet in-band
Bluetooth Power TransPort interface (3) Power TransPort ports [each up to 250 W (27 V DC) output]
Total power: 240 W (27 V DC) with 1 power supply / 480 W (27 V DC) with 2 power supplies Primary power (2) Universal AC inputs (100-240 VAC, 3.5 A max., 50/60 Hz)
(1) Power supply included (additional modules sold separately.) Backup power (1) 24 V DC, 20.83 A lead-acid battery input* (Battery not included.)
*Connect only to a lead-acid battery. Using any other type of battery could be dangerous. Supported Voltage Range 100 to 240 VAC Max. Power Consumption 3 W (Excluding Power TransPort output and battery charger.) ESD/EMP Protection Air: ±15 kV / Contact: ±8 kV LCM Display 1.3-inch touchscreen Operating Temperature -10 to 50 °C (14 to 122 °F) Operating Humidity 5 to 95% non-condensing Certifications CE, FCC, IC, PTCRB, AT LTE Antenna External (included) SIM Nano-SIM Category Cat M1 Bands US/Canada: FDD-LTE Bands 2, 4, 12, 13 (ATNotification Type SMS (Requires a Nano-SIM card from a Cat M1 SMS provider.) Input Rating 5 VDC, 0.5 A LEDs System Status RJ45 Data Connectors Link/Activity Power Transport On Off Compatibility Supported Models UISP Console
UISP Router (installed with UISP Box)
UISP Router Pro
UISP Switch (installed with UISP Box)
UISP Switch Pro Software Management Application UISP: Version 1.4.8 and higher
Delivers up to 480W* (27V DC) to supported UISP devices
(2) Power supply bays with (1) 250W AC/DC power supply included
(1) DC battery connector for an external 24V lead-acid battery (not included)
Supports SMS over LTE notification (Cat M1)
Compatible with UISP Console, UISP Router (installed with UISP Box), UISP Router Pro, UISP Switch (installed with UISP Box), UISP Switch Pro
Technical Specifications Mechanical Dimensions 442.4 x 267.5 x 43.7 mm (17.4 x 10.5 x 4,3 cm ( 1,7 inch )) Weight 4.16 kg (9.2 lbs) Enclosure Materials SGCC steel, polycarbonate/ABS Hardware Network Interface (1) 10/100 MbE RJ45 LAN port Management interface Ethernet in-band
Bluetooth Power TransPort interface (3) Power TransPort ports [each up to 250 W (27 V DC) output]
Total power: 240 W (27 V DC) with 1 power supply / 480 W (27 V DC) with 2 power supplies Primary power (2) Universal AC inputs (100-240 VAC, 3.5 A max., 50/60 Hz)
(1) Power supply included (additional modules sold separately.) Backup power (1) 24 V DC, 20.83 A lead-acid battery input* (Battery not included.)
*Connect only to a lead-acid battery. Using any other type of battery could be dangerous. Supported Voltage Range 100 to 240 VAC Max. Power Consumption 3 W (Excluding Power TransPort output and battery charger.) ESD/EMP Protection Air: ±15 kV / Contact: ±8 kV LCM Display 1.3-inch touchscreen Operating Temperature -10 to 50 °C (14 to 122 °F) Operating Humidity 5 to 95% non-condensing Certifications CE, FCC, IC, PTCRB, AT LTE Antenna External (included) SIM Nano-SIM Category Cat M1 Bands US/Canada: FDD-LTE Bands 2, 4, 12, 13 (ATNotification Type SMS (Requires a Nano-SIM card from a Cat M1 SMS provider.) Input Rating 5 VDC, 0.5 A LEDs System Status RJ45 Data Connectors Link/Activity Power Transport On Off Compatibility Supported Models UISP Console
UISP Router (installed with UISP Box)
UISP Router Pro
UISP Switch (installed with UISP Box)
UISP Switch Pro Software Management Application UISP: Version 1.4.8 and higher
Questions & answers
What is the delivery time of Ubiquiti UISP Power Professional / Delivers up to 480W / DC battery port / UISP-P-Pro?
The article Ubiquiti UISP Power Professional / Delivers up to 480W / DC battery port / UISP-P-Pro is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 11 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Ubiquiti UISP-P-Pro to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Ubiquiti UISP Power Professional / Delivers up to 480W / DC battery port / UISP-P-Pro always at the best possible price. We can give you a discount of 2% on Ubiquiti UISP Power Professional / Delivers up to 480W / DC battery port / UISP-P-Pro if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
