Ubiquiti UISP Horn PtMP antenna 5.15 - 6.875 GHz

Your rating:
Average rating
Rating for Ubiquiti UISP Horn PtMP antenna 5.15 - 6.875 GHz
( 0 / 5 ) 0 ratings
Ubiquiti UISP-HornUbiquiti UISP-HornUbiquiti UISP-HornUbiquiti UISP-HornUbiquiti UISP-HornUbiquiti UISP-Horn
Ubiquiti UISP-Horn
This image may differ from the desired article.
160,07 EUR 165,88 EUR
( 190,48 EUR incl. VAT )
2025-11-14Delivery time on requestinfo_outline
1x Ubiquiti UISP Horn PtMP antenna 5.15 - 6.875 GHz
Lieske Part No.:1994157
Mfg Part No: UISP-Horn
Weight:4 kg

Product information for Ubiquiti UISP-Horn:

High isolation point-to-multipoint horn antenna (PtMP) that covers a wide operating frequency range (5.15-6.875 GHz). Highly insulating 30° horn antenna covering a wide operating frequency range (5.15 - 6.875 GHz)
15+ km PtMP link range
Die-cast, UV-stabilized polycarbonate housing for improved durability and weather resistance

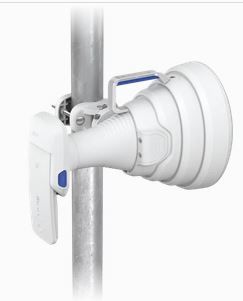

Pole-mountable antenna with metal carrying handle
Compatible with AF 5XHD, RP 5AC, LTU RocketTechnical Specifications Mechanical Dimensions 282 x 224 x 380 mm (11.1 x 8.8 x 38,1 cm ( 15 inch )) Weight Device: 3.06 kg (6.75 lb)
Holder: 925 g (2.04 lb) Housing materials UV-stabilized Polycarbonate, aluminum alloy Wind survivability Up to 200 km/h (124 mph) Wind load 90 N at 200 km/h Mounting Alignment mounting kit (included)
Mechanical adjustment: ±20° elevation, ±25° azimuth
Pole compatibility: Ø25 to 70 mm (Ø1 to 7,6 cm ( 3 inch )) Weatherproof IPX6 Hardware Frequency Range 5.15 to 6.875 GHz Gain 19.5 dBi Beamwidth Azimuth: 30° (6 dB)
Elevation: 25° (6 dB) Electrical Down Tilt 0° Maximum VSWR 2:1 Polarization Dual-linear Cross- Pole Isolation 20 dB Front to Back Ratio Typical: 45 to 50 dB
Min.: 40 dB


Questions & answers

What is the delivery time of Ubiquiti UISP Horn PtMP antenna 5.15 - 6.875 GHz?

The article Ubiquiti UISP Horn PtMP antenna 5.15 - 6.875 GHz is currently not in stock und muss auftragsbezogen bestellt werden.

According to our experience the article is ready for dispatch within 11 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Ubiquiti UISP-Horn to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Ubiquiti UISP Horn PtMP antenna 5.15 - 6.875 GHz always at the best possible price. We can give you a discount of 2% on Ubiquiti UISP Horn PtMP antenna 5.15 - 6.875 GHz if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
