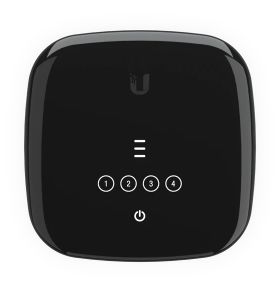

Ubiquiti UFiber GPON UF-WIFI6 GPON CPE
|
90,24 EUR 93,52 EUR |
|
|
( 107,39 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1970237 |
|---|---|
| Mfg Part No: | UF-WiFi6 |
| Weight: | 0.41 kg |
Product information for Ubiquiti UF-WiFi6:
On-premise GPON devices (CPE) with WiFi6 support. (1) GPON port
Built-in 4-port GbE switch
Built-in WiFi 6
Note: This device is only compatible with the UFiber OLT. It cannot be used with third-party OLTs.Technical Specifications Mechanical Dimensions 140.8 x 141.5 x 31.65 mm (5.54 x 5.57 x 3,2 cm ( 1,2 inch )) Weight 415 g (0.99 pounds) Case material UV-stabilized polycarbonate Hardware Processor Dual-core MIPS 1004 Kc at 900 MHz Memory 256 MB RAM Total non-blocking line rate 2.488 Gbit/s downstream,
1.244 Gbit/s upstream Network interfaces (1) SC/APC, ITU-G.984 GPON WAN port
(4) GbE RJ45 LAN ports
WiFi 802.11ax 5/2.4 GHz channels PoE interface (1) PoE input, 24V passive PoE management interface Ethernet in-band
PON button Factory reset Max. energy consumption 11W Power Method USB-C 5 VDC, 3 A
24 V passive PoE, 0.5 A Power supply 5 VDC, 3 A power adapter, 1.5 m cable (included)
Passive PoE 2 pairs (4, 5+ 7 , 8-) Supported voltage range 10 to 30 VDC passive PoE
5 VDC adapter Normal TX range of optical module 0.5 to 5 dBm Normal reception range of optical module -8 to -28 dBm Max WiFi TX power
2.4 GHz
5 GHz
20 dBm
20 dBm MIMO
2.4 GHz
5 GHz
2 x 2
2 x 2 Max. WLAN radio rate
2.4 GHz
5 GHz
300 Mbit/
s 1.2 Gbit/s Antenna gain
2.4 GHz
5 GHz
1 dBi
3 dBi Operating temperature -15 to 45 °C (5 to 113 °F) Operating humidity 10 to 90% non-condensing Certifications FCC, IC, CE LEDs PON status (3) Signal LEDs
All-OFF: Power up
1x Orange: Signal too low (= -28 dB)
2x white: signal good (>= -25 dB)
3x white: signal strong (>= -11 dB)
1x orange + 2x white: signal too strong (>= -8 dB)
3x orange: none Signal
LEDs alternate between orange + white + orange and a signal strength indicator: No authorization Ethernet Solid white: Connection established.
Flashing white: activity
OFF: Connected Power White: ON Software Mode ONU/ONT Layer 2/3 Ethernet Switch Services Web server, Telnet, NAT, bridging and routing, firewall functions and application passthrough functions Utilities Dashboard, monitoring, alarms and logs Other Remote -Reset, remote reboot, remote firmware upgrade, VLAN support Security GEM port encryption Ubiquiti specific features UISP mobile app Wi-Fi standards 802.11 b/g
WiFi 4/WiFi 5/WiFi 6 Wireless security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3, TKIP/AES) Fiber Operating wavelength 1310 nm transmit/1490 nm receive Nominal downstream optical interface bit rate 2488.32 Mbps Nominal upstream optical interface bit rate 1244 .16 Mbit/s Physical range 20 km Supported data rates 802.11b 1, 2, 5.5, 11 Mbit/s 802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbit/s 802.11n (WiFi 4 ) 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) 802.11ac (WiFi 5) 6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) 802.11ax (WiFi 6) 8.6 Mbit/s to 1.2 Gbit/s (MCS0 – MCS11 NSS1/2, HE 20/40/80)
Built-in 4-port GbE switch
Built-in WiFi 6
Note: This device is only compatible with the UFiber OLT. It cannot be used with third-party OLTs.Technical Specifications Mechanical Dimensions 140.8 x 141.5 x 31.65 mm (5.54 x 5.57 x 3,2 cm ( 1,2 inch )) Weight 415 g (0.99 pounds) Case material UV-stabilized polycarbonate Hardware Processor Dual-core MIPS 1004 Kc at 900 MHz Memory 256 MB RAM Total non-blocking line rate 2.488 Gbit/s downstream,
1.244 Gbit/s upstream Network interfaces (1) SC/APC, ITU-G.984 GPON WAN port
(4) GbE RJ45 LAN ports
WiFi 802.11ax 5/2.4 GHz channels PoE interface (1) PoE input, 24V passive PoE management interface Ethernet in-band
PON button Factory reset Max. energy consumption 11W Power Method USB-C 5 VDC, 3 A
24 V passive PoE, 0.5 A Power supply 5 VDC, 3 A power adapter, 1.5 m cable (included)
Passive PoE 2 pairs (4, 5+ 7 , 8-) Supported voltage range 10 to 30 VDC passive PoE
5 VDC adapter Normal TX range of optical module 0.5 to 5 dBm Normal reception range of optical module -8 to -28 dBm Max WiFi TX power
2.4 GHz
5 GHz
20 dBm
20 dBm MIMO
2.4 GHz
5 GHz
2 x 2
2 x 2 Max. WLAN radio rate
2.4 GHz
5 GHz
300 Mbit/
s 1.2 Gbit/s Antenna gain
2.4 GHz
5 GHz
1 dBi
3 dBi Operating temperature -15 to 45 °C (5 to 113 °F) Operating humidity 10 to 90% non-condensing Certifications FCC, IC, CE LEDs PON status (3) Signal LEDs
All-OFF: Power up
1x Orange: Signal too low (= -28 dB)
2x white: signal good (>= -25 dB)
3x white: signal strong (>= -11 dB)
1x orange + 2x white: signal too strong (>= -8 dB)
3x orange: none Signal
LEDs alternate between orange + white + orange and a signal strength indicator: No authorization Ethernet Solid white: Connection established.
Flashing white: activity
OFF: Connected Power White: ON Software Mode ONU/ONT Layer 2/3 Ethernet Switch Services Web server, Telnet, NAT, bridging and routing, firewall functions and application passthrough functions Utilities Dashboard, monitoring, alarms and logs Other Remote -Reset, remote reboot, remote firmware upgrade, VLAN support Security GEM port encryption Ubiquiti specific features UISP mobile app Wi-Fi standards 802.11 b/g
WiFi 4/WiFi 5/WiFi 6 Wireless security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3, TKIP/AES) Fiber Operating wavelength 1310 nm transmit/1490 nm receive Nominal downstream optical interface bit rate 2488.32 Mbps Nominal upstream optical interface bit rate 1244 .16 Mbit/s Physical range 20 km Supported data rates 802.11b 1, 2, 5.5, 11 Mbit/s 802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbit/s 802.11n (WiFi 4 ) 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) 802.11ac (WiFi 5) 6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) 802.11ax (WiFi 6) 8.6 Mbit/s to 1.2 Gbit/s (MCS0 – MCS11 NSS1/2, HE 20/40/80)
Questions & answers
What is the delivery time of Ubiquiti UFiber GPON UF-WIFI6 GPON CPE?
The article Ubiquiti UFiber GPON UF-WIFI6 GPON CPE is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 11 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Ubiquiti UF-WiFi6 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Ubiquiti UFiber GPON UF-WIFI6 GPON CPE always at the best possible price. We can give you a discount of 2% on Ubiquiti UFiber GPON UF-WIFI6 GPON CPE if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
