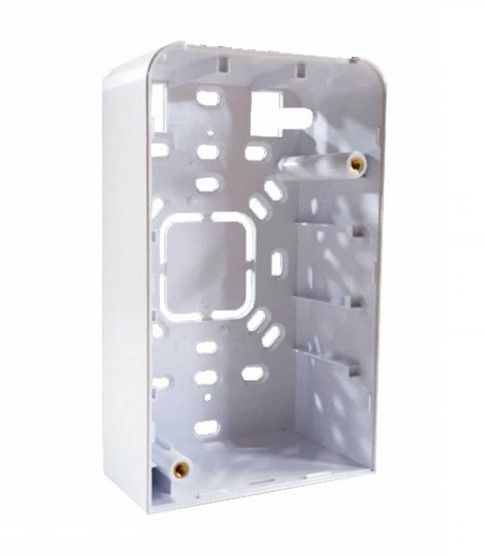

Ubiquiti Inwall-HD Junction Box / 25 pieces / UAP-IW-HD-JB-25

Wall-mounted WiFi 5 AP with 6 spatial streams and an integrated 4-port switch, ideal for single room coverage in the hospitality industry. WiFi 5 Dual radio
6 spatial streams
90 m² (1,000 ft²) coverage
Over 200 connected devices
Powered via PoE/PoE+*
(4) GbE ports with (1) PoE output
GbE uplink
Technical specifications Mechanical Dimensions 139.7 x 86 .7 x 25.8 mm (5.5 x 3.4 x 2,5 cm ( 1 inch )) Weight 210 g (7.4 ounces) Hardware Network interface (5) GbE RJ45 ports Management interface Ethernet PoE interface (1) PoE/PoE+ input
(1) PoE output Power method PoE/PoE+*
Power supply UniFi PoE switch PoE from 48V pass-through (Pins 1, 2+ 3, 6-) Supported voltage range 44-57V DC Max. power consumption 11W (without PoE output) Max. PoE wattage per port according to PSE 23 W*
Max. transmission power
2.4 GHz
5 GHz
23 dBm
26 dBm MIMO
2.4 GHz
5 GHz
2 x 2
4 x 4 throughput rate
2.4 GHz
5 GHz
300 Mbit/
s 1733 Mbit/s Antenna gain
2.4 GHz
5 GHz
1.8 dBi
6 dBi Button Factory reset Installation 1-gang electrical wall socket (not included) Operating temperature -10 to 60 °C (14 to 140 °F) Operating humidity 5 to 95% non-condensing Certifications CE, FCC, IC, cULus Software WLAN standards 802.11 a/b/g/n/r/k/v/ac/ac-wave2 Wireless security WEP, WPA-PSK, WPA- Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF BSSID Up to 8 per radio VLAN 802.1Q Advanced QoS Rate limiting per user Guest traffic isolation Supports power saving Supports beamforming Supports WMM Voice, video, best performance and background Simultaneous clients 200+ Supported data rates (Mbps) 802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbit/s 802.11b 1, 2, 5.5, 11 Mbit/s 802.11g 6, 9, 12, 18, 24 , 36, 48, 54 Mbit/s 802.11n 6.5 Mbit/s to 300 Mbit/s (MCS0 -MCS15, HT 20/40) 802.11ac 6.5 Mbit/s to 1.7 Gbit/s (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80)
58 Mbit/s to 1.7 Gbit/s (MCS0 – MCS9 NSS1/2, VHT 160)
