Ubiquiti UniFi G2 Access Starter Kit / UA-G2-SK

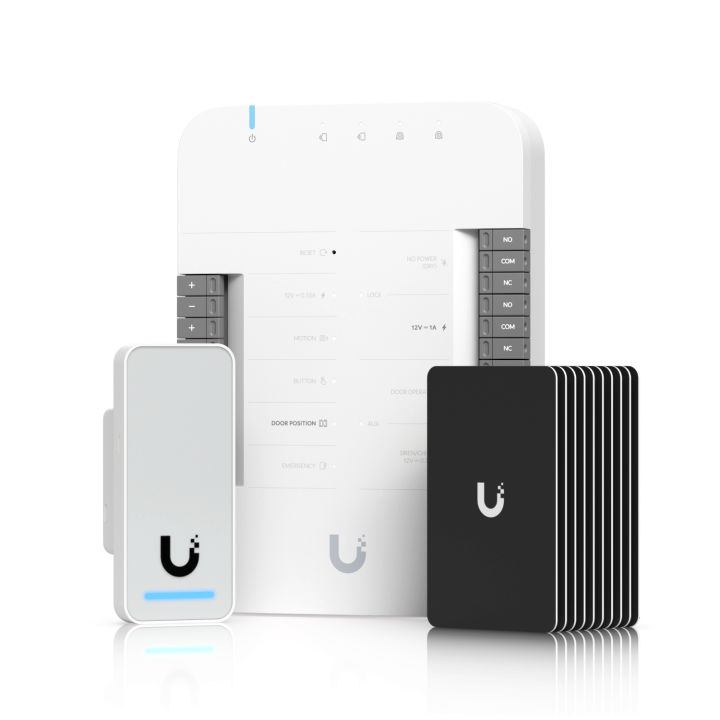

Get started quickly with Access with everything you need for a door with a reader. (1) UniFi Access Door Hub
(1) Access to Reader G2
(10) UniFi access cards Technical specifications UA hub door

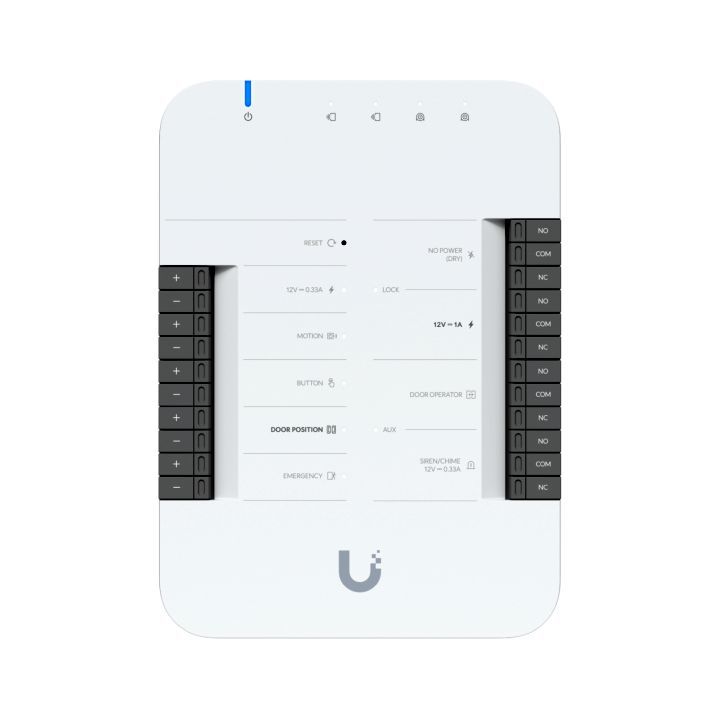

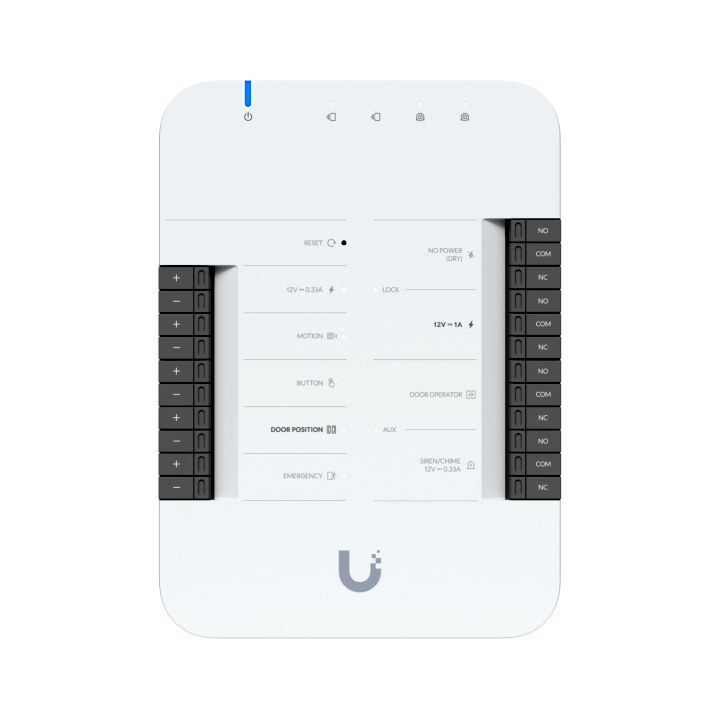

mechanical Dimensions 174.9 x 126 x 32.9 mm (6.9 x 5 x 3,3 cm ( 1,3 inch ) ) Weight 363 g (12.8 ounces) Body material Polycarbonate Mounting material Polycarbonate Hardware Network interface (5) 10/100/1000 Base-T Power method PoE++
UL 294 Power-limited Class 2 power supply
UL 60950/62368 LPS/PS2 power supply Max. energy consumption Without PoE output: 30W.
With PoE output: 50W PoE input 50V DC, 1A PoE output PoE passthrough, (4) PoE, 50V DC, total 20W button (1) Factory reset LEDs system : white/blue.
Output relay: white Digital input exit request/entry request/remote release/door position sensor dry output relay lock: 30V DC, 1A
Aux: 30V DC, 1A output relay with power supply lock: 12V DC, 1A
Aux: 12V DC , 0.33 A
12 V DC, 0.33 A Operating Environment Indoor use only Operating temperature 0 to 40 °C (32 to 104 °F) Operating humidity 5 to 95% non-condensing UL 294 level Destructive attack: Level I
Line safety: Level I
Endurance: Level I
Standby Performance: Level I UL 294 Statement Compliance with the IEEE 802.3 specifications (at or af) has not been verified under UL 294.
The equipment shall comply with the National Electrical Code section, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. CAN/ULC-60839-11-1 Class Rating: 1 Certifications CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 Document number as well as issue date and/or revision level UA-Hub-Door002, V01 Wiring information Typical Installation (Shielded) DC Power Input Belden 8750 18 AWG 2 Wire (30.5 m/100 ft) Door Position Switch Belden 8750 18 AWG 2 Wire (152.5 m/500 ft) Exit Notice Belden 8750 18 AWG 2 (152.5 m/ 500 ft) Wire Gauge Requirements (AWG) Total Length to Device Output Load Current at 12V DC 100mA 250mA 500mA 1A 20 ft (6.1 m) 22 22 22 18 50 ft (15.2 m) 22 22 22 18 30.5 m (100 feet) 22 22 18 18 PoE Cabling Requirements The minimum allowable wire size for the connection between the PSE or power injector and the PD is 24 AWG (0.21 mm²) for horizontal or riser cables. LEDs PoE in solid blue: Accepted/device is ready.
Constantly white: takeover is pending.
Flashing white/blue: Firmware is being updated PoE off Off: Not connected or no data connection.
Solid blue: Connected and data connection activated UA-G2

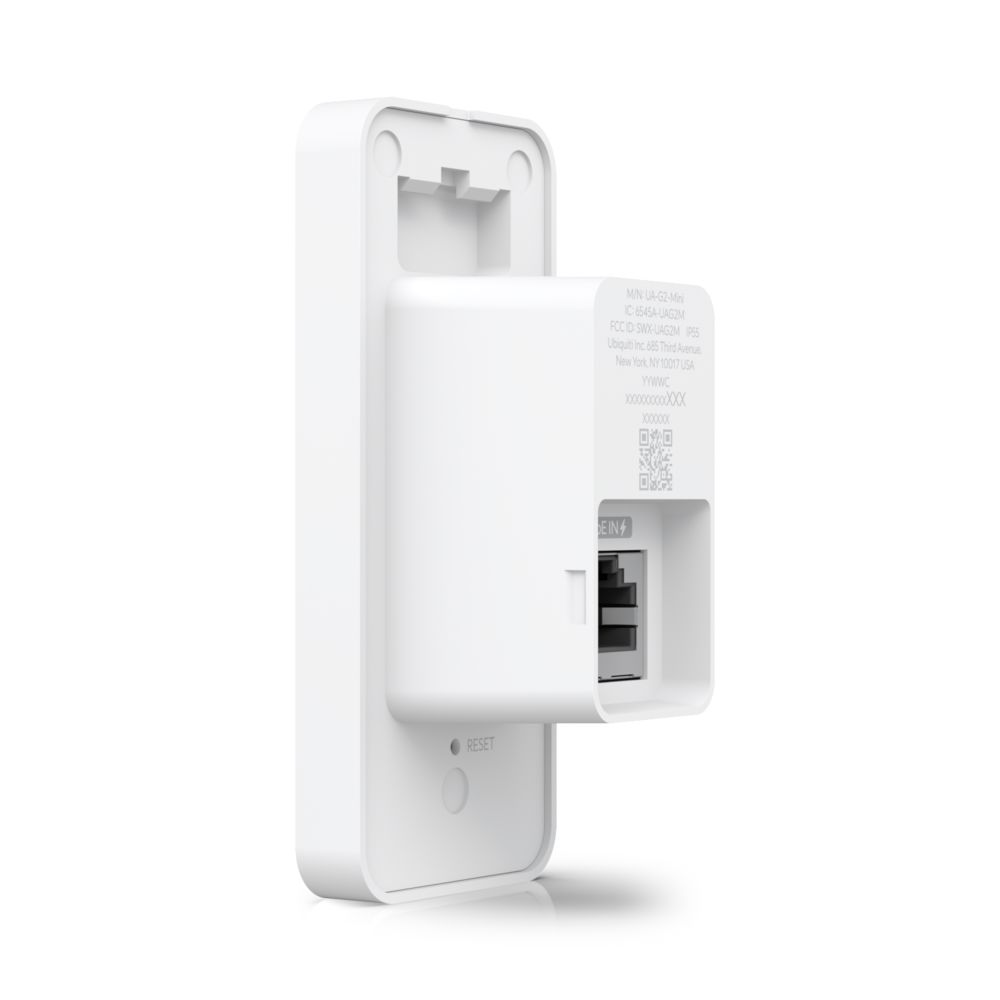

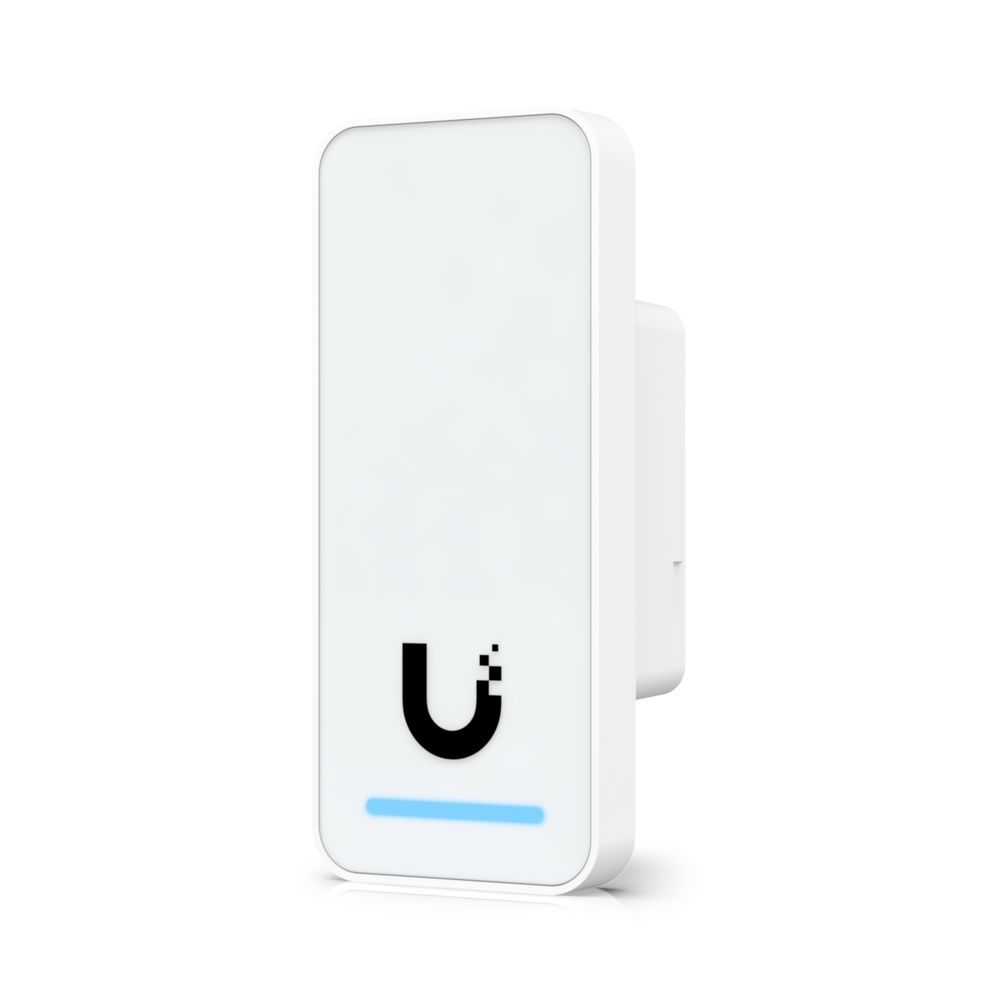

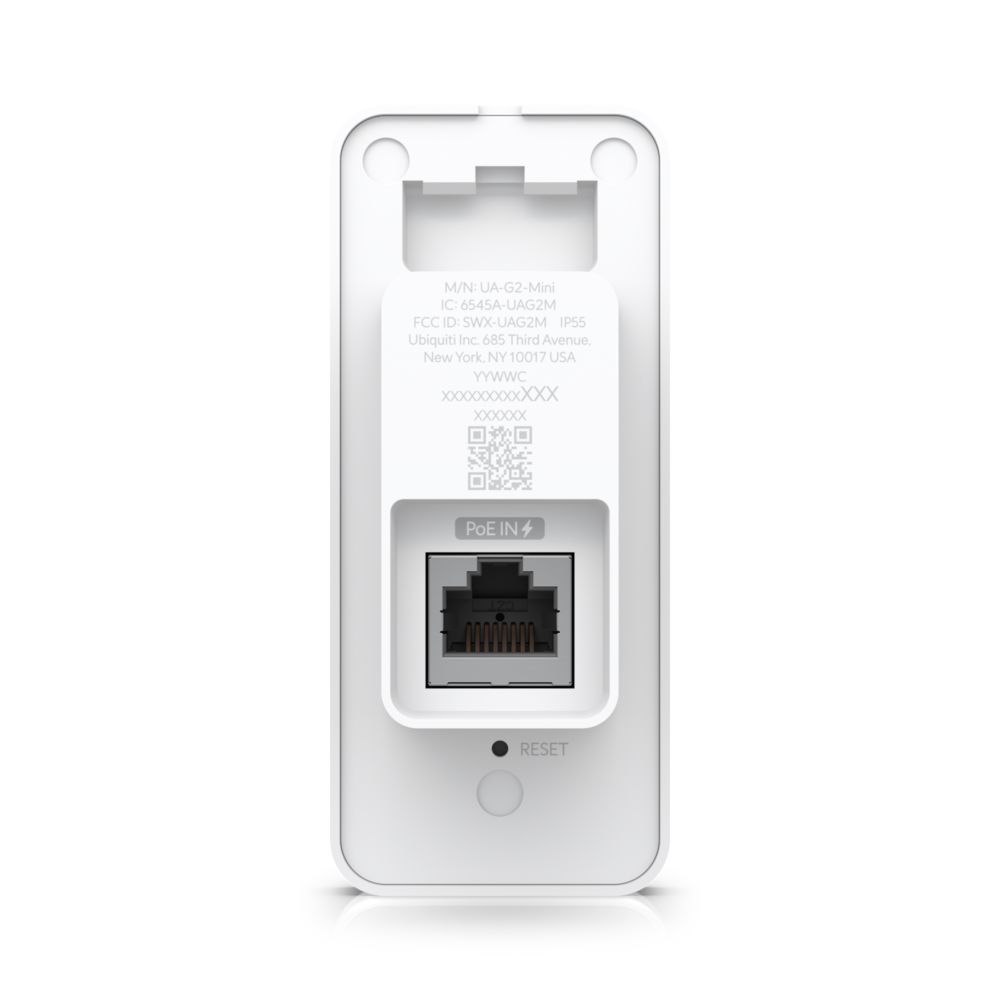

Mechanical Dimensions 93 x 40 x 36.5 mm (3.7 x 1.6 x 3,6 cm ( 1,4 inch )) Weight 82 g (2.9 ounces) Housing material Polycarbonate, glass Mounting In-wall, distribution box Weatherproof IP55 Hardware Network interface (1) 10/100 MbE RJ45 port Connectivity BLE 4.1 Power method PoE Supported voltage range 48V DC Max. power consumption 5W ESD/EMP protection Air: ±15kV, Contact: ±8kV Sensors Proximity sensor Speaker (1) 8 Ohm, 0.7 W LEDs R/G/B/W button (1) Factory reset NFC frequency 13.56 MHz NFC reading range NFC standards ISO 14443A, 14443B, 15693 NFC technology NFC tag 1,2,3,4,5
MIFARE Classic
MIFAREPlus
MIFARE Ultralight
MIFARE DESFire Operating temperature -30 to 45 °C (-22 to 113 °F) Operating humidity 5 to 90% non-condensing Certifications CE, FCC, IC UA card

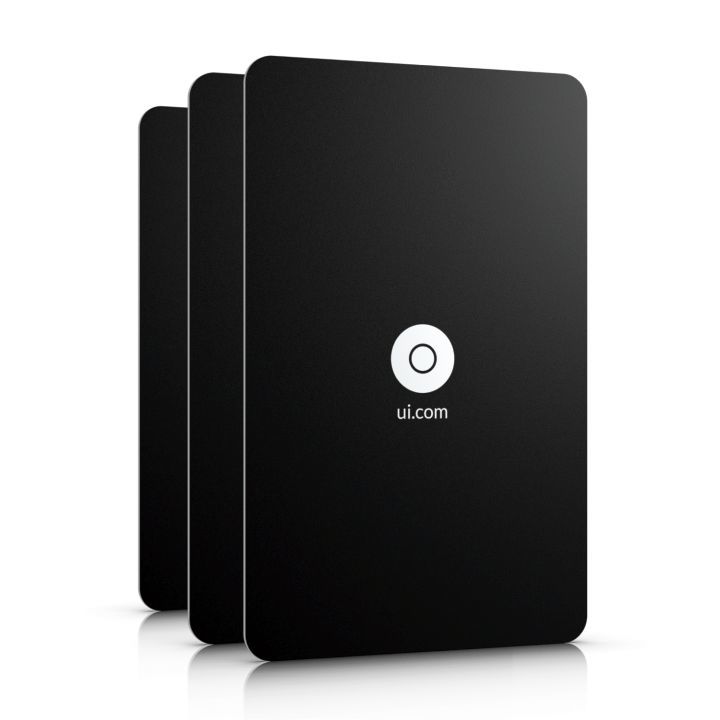

mechanical Dimensions 85.6 x 53.98 x 0.84 mm (3 .37 x 2.13 x 0,1 cm ( 0 inch )) Weight 5 g (0.18 ounces) Format ISO 7810 ID-1 NFC frequency 13.56 MHz NFC technology ISO/IEC 14443 Type A
MIFARE DESFire
UniFi Access Proprietary security protocol
