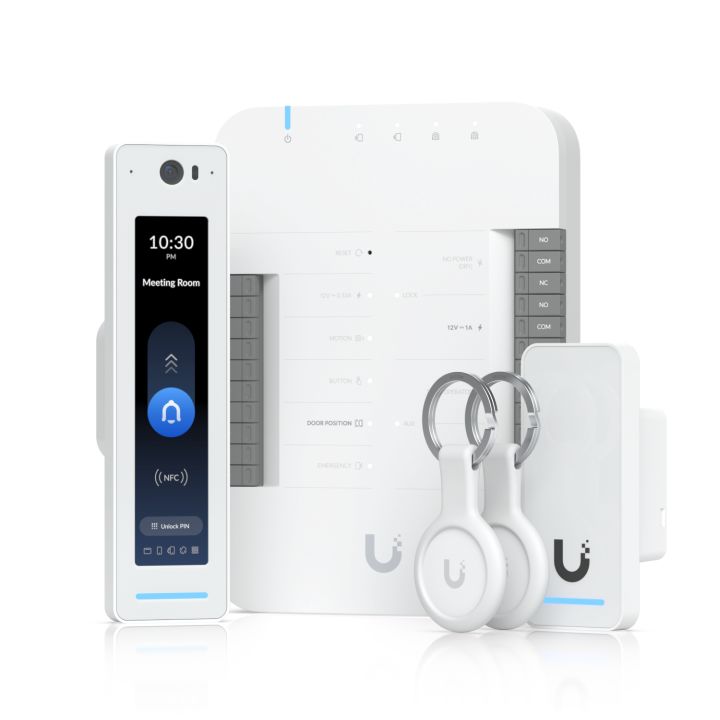

Ubiquiti UniFi G2 Access Starter Kit Professional / UA-G2-SK-Pro

Get started with Access and benefit from a professional experience for a door with two readers. (1) UniFi Access Door Hub

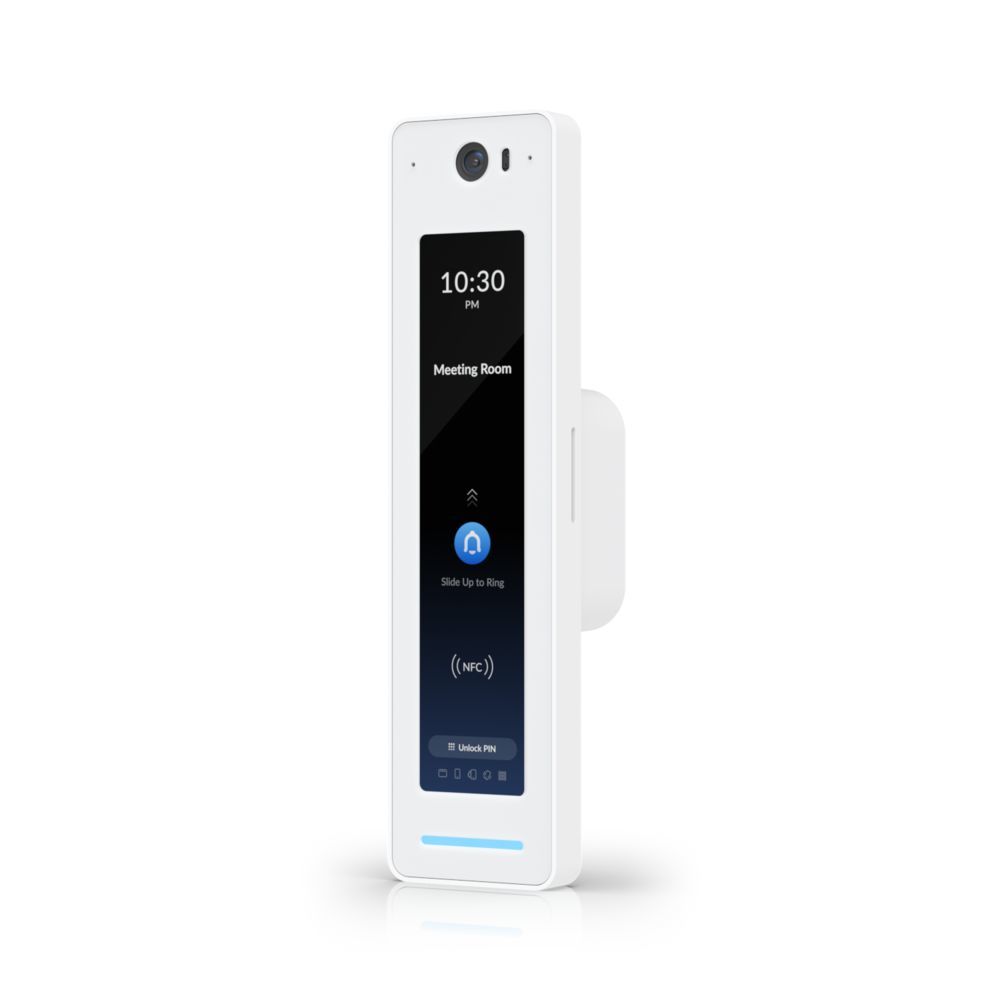

(1) Access Reader G2 Professional

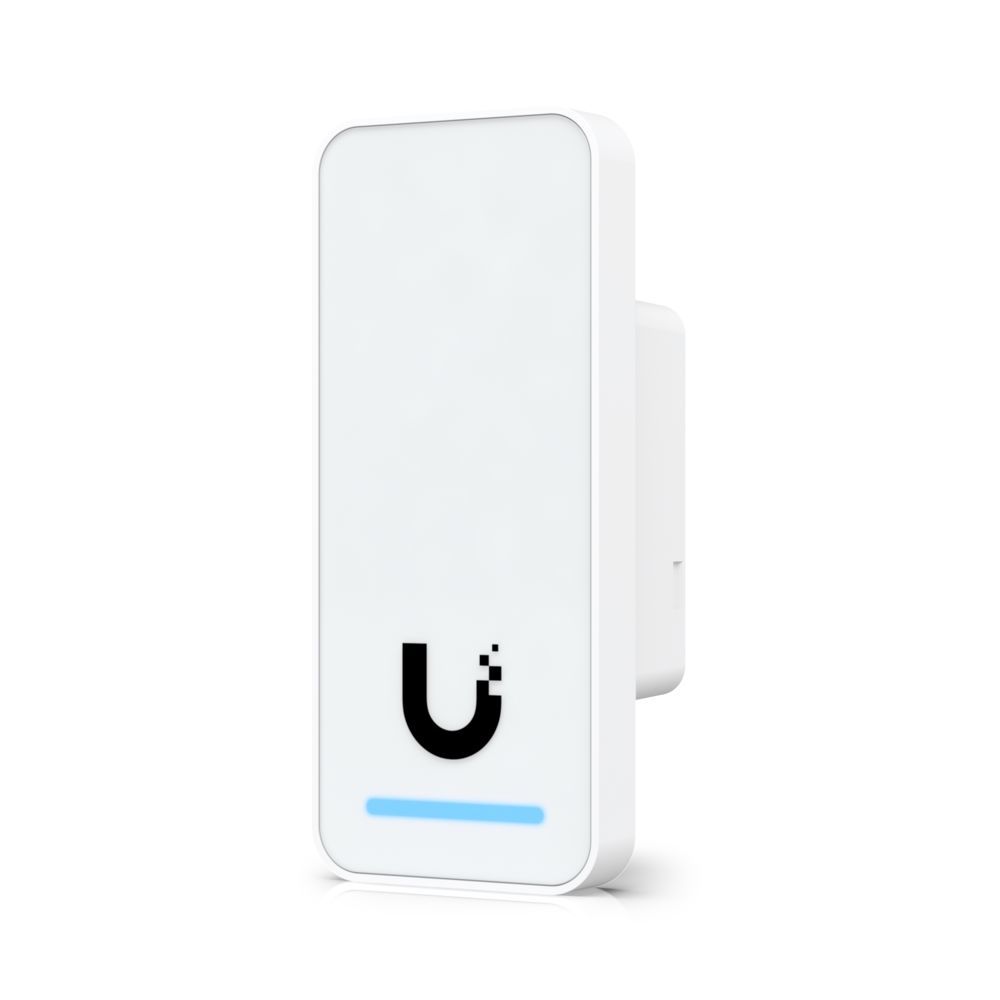

(1) Access reader G2 for door exit or entrance for additional door

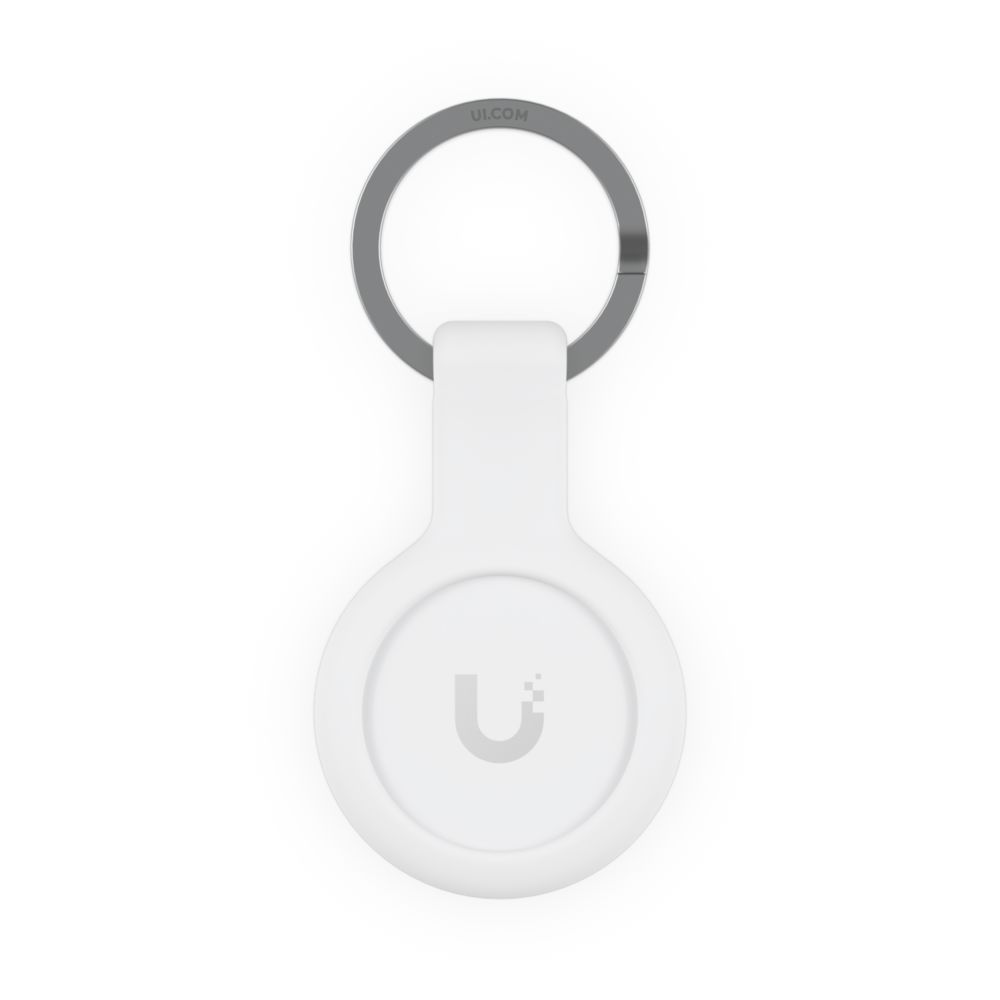

(2) UniFi Access pocket key fob

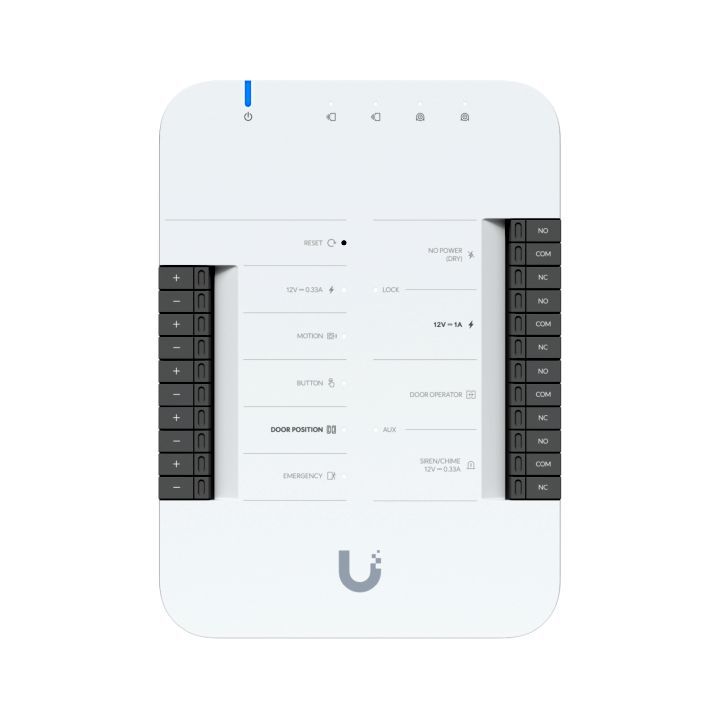

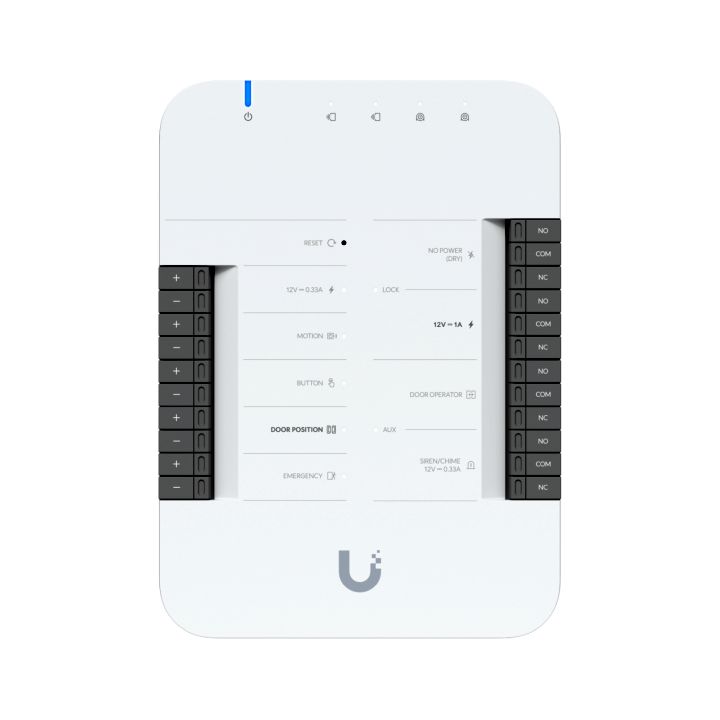

Technical specifications UA Hub door
mechanical Dimensions 174.9 x 126 x 32.9 mm (6.9 x 5 x 3,3 cm ( 1,3 inch )) Weight 363 g (12.8 ounces) Housing material Polycarbonate Mounting material Polycarbonate Hardware Network interface (5) 10/100/1000 Base-T Power method PoE++
UL 294 Power Limited Class 2 Power Supply
UL 60950/62368 LPS/PS2 Power Supply Max Power Consumption Without PoE Output: 30W
With PoE Output: 50W PoE Input 50V DC, 1A PoE Output PoE Passthrough, (4 ) PoE, 50V DC, total 20W Button (1) Factory reset LEDs System: white/blue.
Output relay: white Digital input Exit request/Entry request/Remote release/Door position sensor Dry output relay Lock: 30V DC, 1A
Aux: 30V DC, 1 A Output relay with power supply Lockout: 12 V DC, 1 A
Aux: 12 V DC, 0.33 A
12 V DC, 0.33 A Operating environment Indoor use only Operating temperature 0 to 40 °C (32 to 104 °F) Operating humidity 5 to 95% non-condensing UL 294 Level Destructive Attack: Level I
Line Safety: Level I
Endurance: Level I
Standby Power: Level I UL 294 Statement Compliance with the IEEE 802.3 specifications (at or af) has not been established under UL 294 checked.
The equipment shall comply with the National Electrical Code section, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. CAN/ULC-60839-11-1 Class Rating: 1 Certifications CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 Document number as well as issue date and/or revision level UA-Hub-Door002, V01 Wiring information Typical Installation (Shielded) DC Power Input Belden 8750 18 AWG 2 Wire (30.5 m/100 ft) Door Position Switch Belden 8750 18 AWG 2 Wire (152.5 m/500 ft) Exit Notice Belden 8750 18 AWG 2 (152.5 m/ 500 ft) Wire Gauge Requirements (AWG) Total Length to Device Output Load Current at 12V DC 100mA 250mA 500mA 1A 20 ft (6.1 m) 22 22 22 18 50 ft (15.2 m) 22 22 22 18 30.5 m (100 feet) 22 22 18 18 PoE Cabling Requirements The minimum allowable wire size for the connection between the PSE or power injector and the PD is 24 AWG (0.21 mm²) for horizontal or riser cables. LEDs PoE in solid blue: Accepted/device is ready.
Constantly white: takeover is pending.
Flashing white/blue: Firmware is being updated PoE off Off: Not connected or no data connection.
Solid blue: Connected and data connection activated UA-G2-Pro
Mechanical Dimensions 160 x 40.4 x 40.55 mm (6.3 x 1.59 x 4,1 cm ( 1,6 inch )) Weight 136 g (4.8 ounces) Housing material Polycarbonate, Glass Mounting material Aluminum alloy Mounting Wall, Gangbox Weatherproof IP55 Hardware Network interface (1) 10/100/1,000 MbE RJ45 port Connectivity BLE 4.2
NFC Power method PoE Supported voltage range 48V DC Max. energy consumption 6W ESD/EMP protection Air: ±15kV, contact : ±8kV Sensor ToF sensor Camera 4000 x 3000, 12 MP, 30 FPS Microphone Yes Speaker (1) 4 Ohm, 1.5 W LEDs R/G/B/W
flash button (1) Factory reset NFC frequency 13, 56 MHz NFC read range NFC standards ISO 14443A, 14443B, 15693 NFC technology NFC tag 1,2,3,4,5
MIFARE Classic
MIFAREPlus
MIFARE Ultralight
MIFARE DESFire Operating temperature -10 to 40 °C (14 to 104 °F) Operating Humidity 5 to 90% non-condensing Certifications CE, FCC, IC UA-G2
Mechanical Dimensions 93 x 40 x 36.5 mm (3.7 x 1.6 x 3,6 cm ( 1,4 inch )) Weight 82 g (2.9 ounces) Body material Polycarbonate, glass In-wall mounting, distribution box Weatherproof IP55 Hardware Network interface (1) 10/100 MbE RJ45 port Connectivity BLE 4.1 Power method PoE Supported voltage range 48V DC Max. energy consumption 5W ESD/EMP protection Air: ±15kV, Contact: ±8kV Sensors Proximity sensor Speaker (1) 8 Ohm, 0.7 W LEDs R/G/B/W Button (1) Factory reset NFC frequency 13.56 MHz NFC reading range NFC standards
