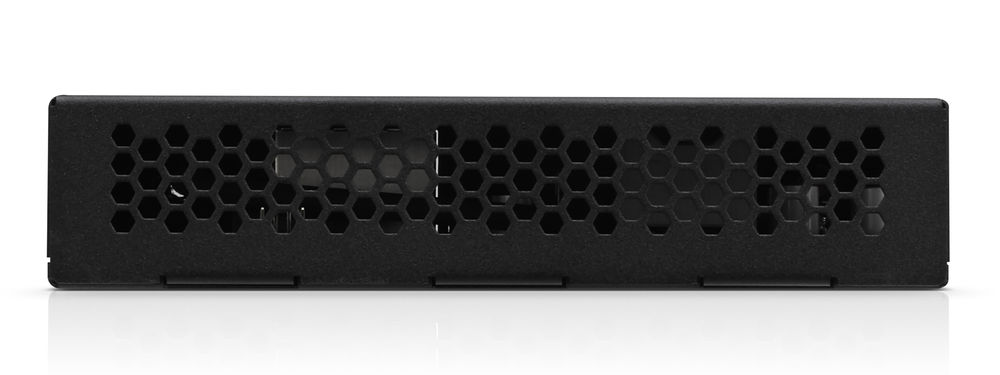

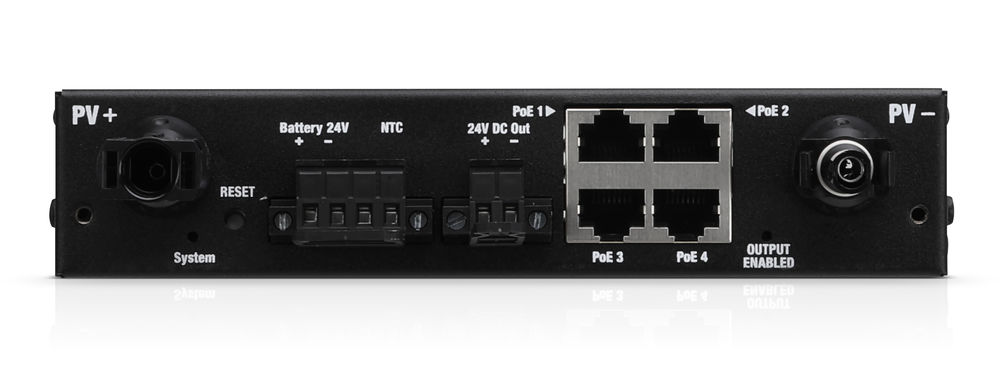

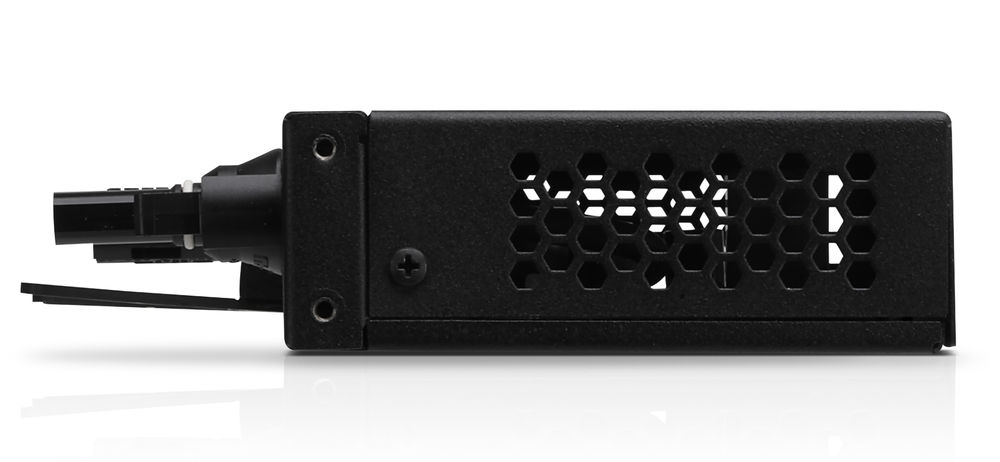

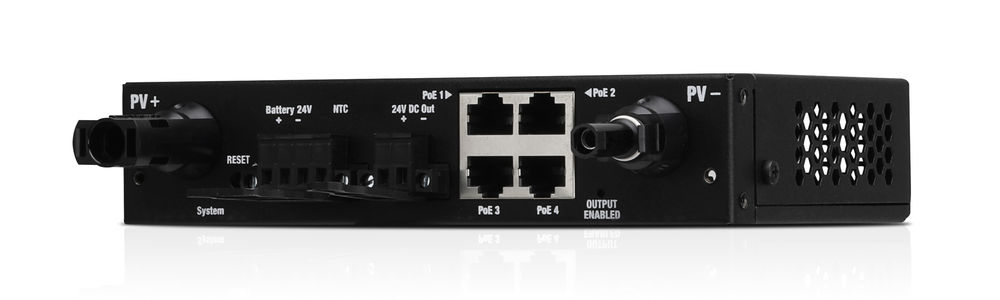

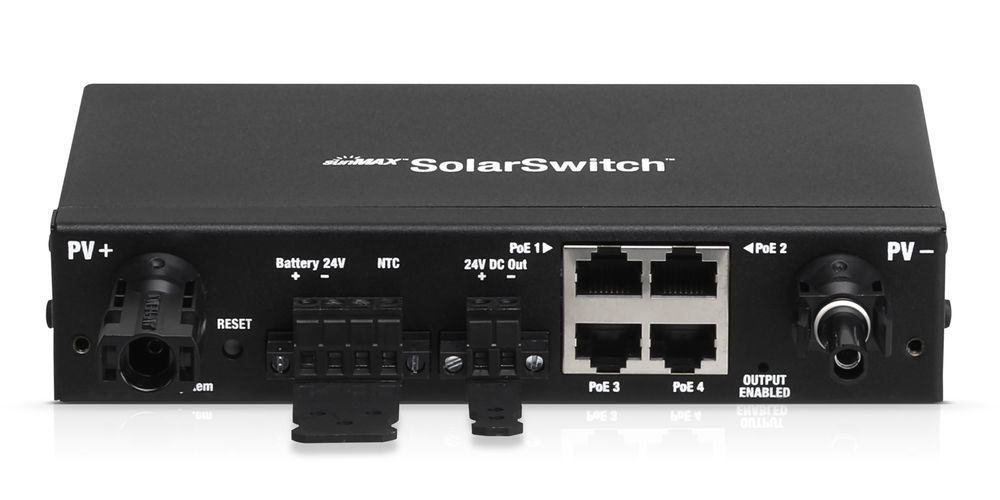

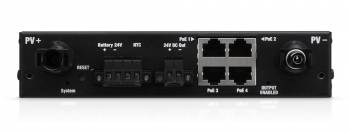

Ubiquiti SunMax Solar Switch SM-SW-40
|
176,13 EUR |
|
|
( 209,59 EUR incl. VAT ) ≈ £152.70 | ≈ $205.02 plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1787326 |
|---|---|
| Mfg Part No: | SM-SW-40 |
| Weight: | 0.7 kg |
Product information for Ubiquiti SM-SW-40:
24V DC output terminal with max power 40W
External 24V battery charges up to 7 Amps (supports SLA, AGL, AGM)
Indoor or outdoor use Cabinet (rack mounting possible).
Technical Specifications Mechanical Dimensions 168 x 136 x 36 mm (6.14 x 5.35 x 3,6 cm ( 1,4 inch )) Weight 543 g (1.2 pounds) Case features Steel (indoor) Hardware Network interface (4) 10/100 Fast Ethernet ports Management interface Ethernet -WLAN (2.4 GHz) Button Reset LEDs System, output Power source PV panel (H4 connectors) Max. energy consumption
2W PV input voltage range 10-60V (reverse polarity protection, over-voltage protection).
A PV power control MPPT output interfaces 24 VDC Passive PoE (Pins 4, 5+ 7, 8-)
24 VDC terminal block output voltage Battery voltage limited to 24 V (surge protection) Maximum power output PoE: 17 W, DC OUT: 24 W, max. 40 W total Battery type 24V SLA, AGM, gel lead acid battery Absorption voltage steps 27.4V, 28.2V, 29.1V, 30V Float charging voltage 95% of absorption voltage Max. charging current 7A Undervoltage protection 22 - 23.6V Software configurable
22V hardware protection
2 priority levels for output disablement Operating temperature* -20 to 50°C (-4 to 122°F)
*Stops charging when the limit is exceeded and starts charging with a hysteresis of 5°C (9° F) new. Certifications FCC, IC, CE
Questions & answers
What is the delivery time of Ubiquiti SunMax Solar Switch SM-SW-40?
The article Ubiquiti SunMax Solar Switch SM-SW-40 is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 11 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Ubiquiti SM-SW-40 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Ubiquiti SunMax Solar Switch SM-SW-40 always at the best possible price. We can give you a discount of 2% on Ubiquiti SunMax Solar Switch SM-SW-40 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
