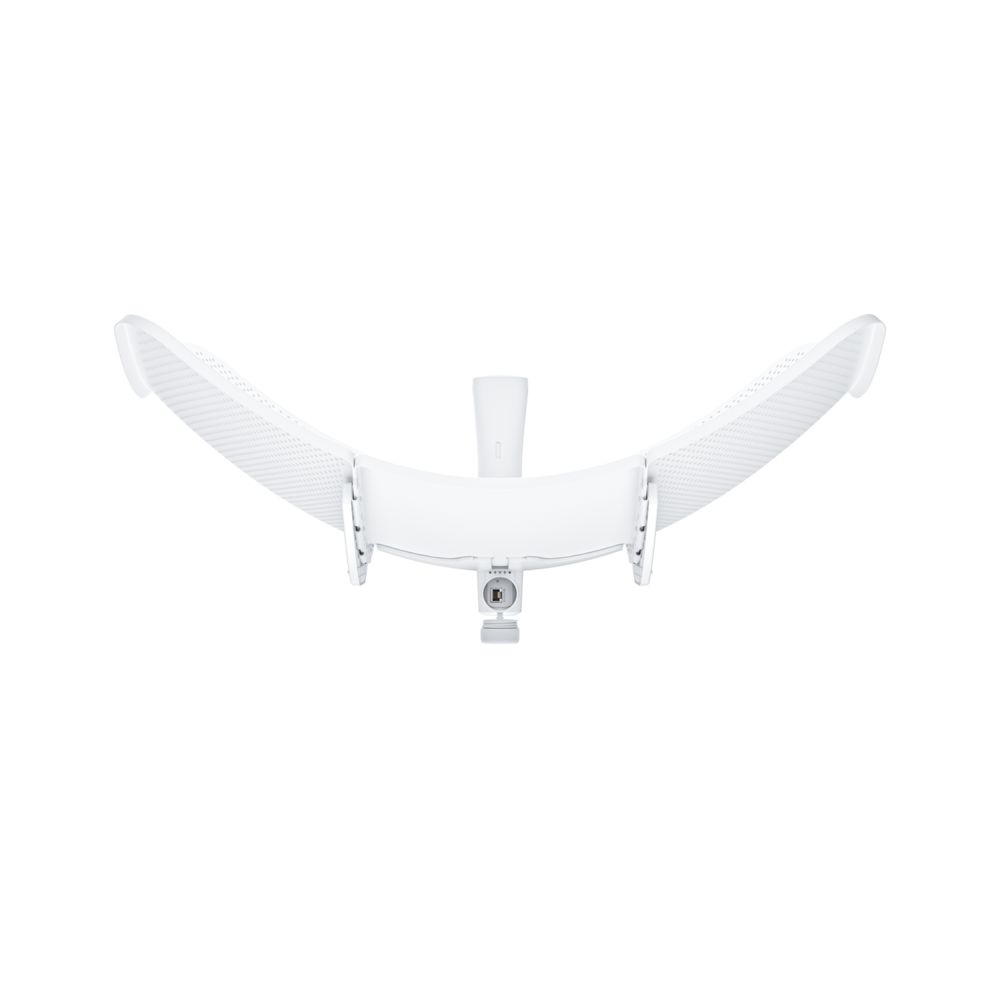

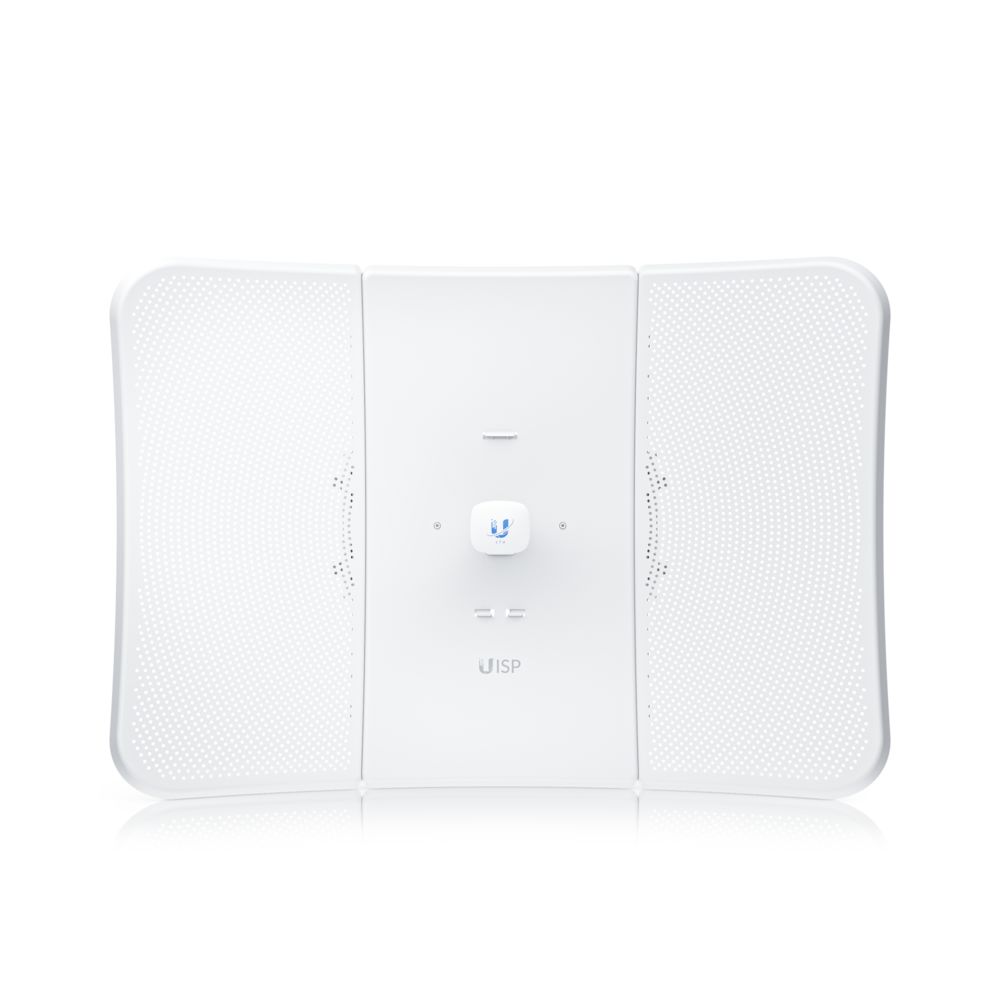

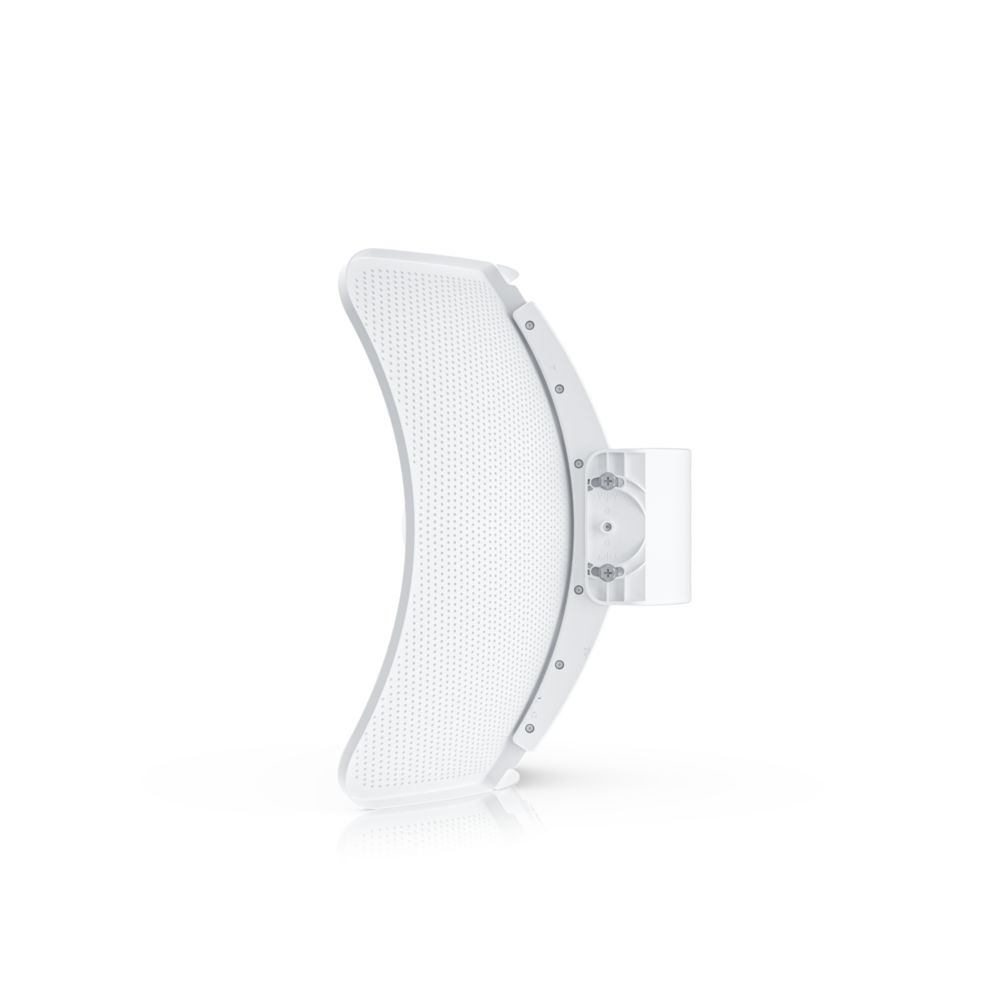

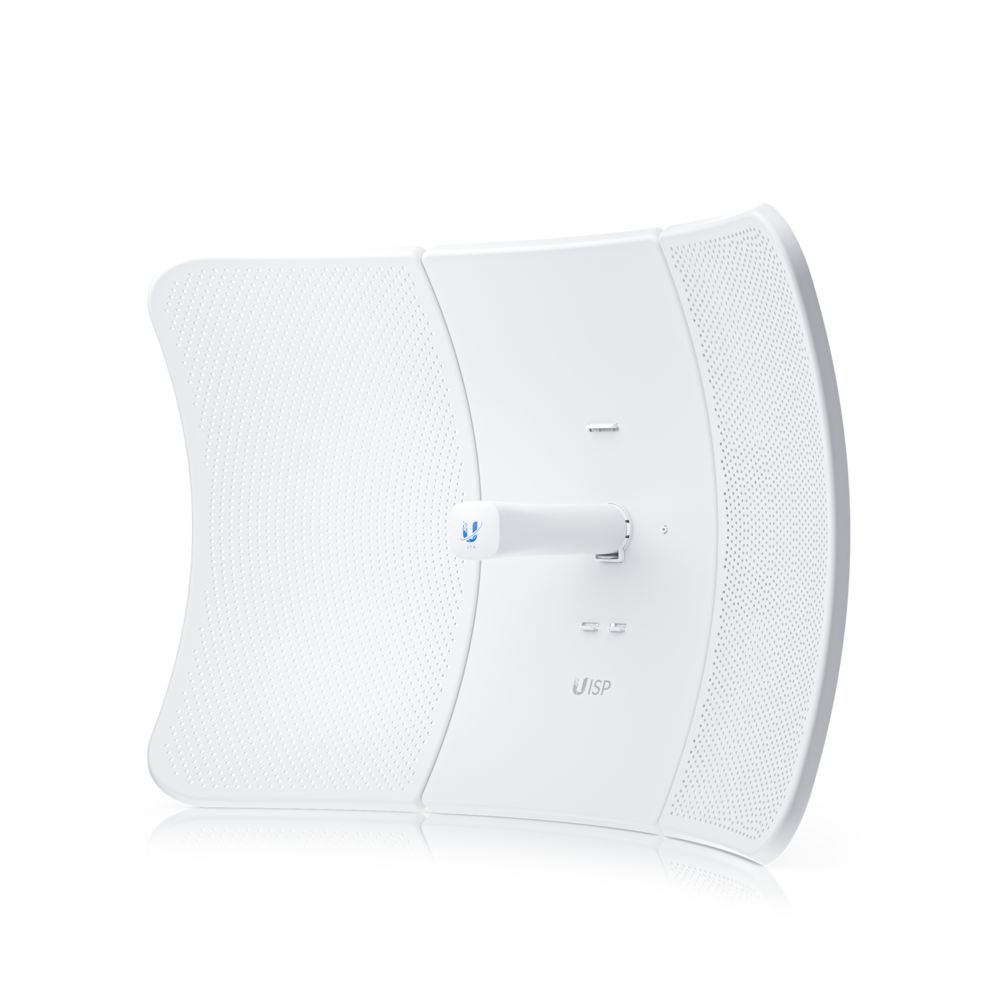

Ubiquiti 5GHz P2MP 5GHz Ltu XR Client Radio, LTU-XR
|
114,45 EUR 116,57 EUR |
|
|
( 136,20 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1705932 |
|---|---|
| Mfg Part No: | LTU-XR |
| Weight: | 3.2 kg |
Product information for Ubiquiti LTU-XR:
Over 900 Mbps throughput*
Dedicated spectrum analysis radio
Easy to assemble
Note. Compatible with LTU devices only.
Technical Specifications Mechanical Dimensions 747 x 525 x 347 mm (29.41 x 20.67 x 34,7 cm ( 13,7 inch )) Weight 3.2 kg (7.06 pounds) Housing materials Aluminum alloy, UV-stabilized polycarbonate Mounting material UV-stabilized polycarbonate Mount Integrated pole mount (included)
Mast compatibility: Ø35 to 60 mm (Ø1.38 to 6 cm ( 2,4 inch )) Wind load 1100 N at 200 km/h (247.29 lbf at 125 mph) Weatherproof IPX6 Hardware Network interface (1) GbE RJ45 port Power -Method Passive PoE 2 pair (4, 5+ 7, 8-) Power supply 24V, 0.5A Gigabit PoE adapter (included) Supported voltage range 22-26V DC Max power consumption 8.5W RF -Connections Internal LEDs Power/Ethernet Button Factory Reset Operating Temperature -40 to 55°C (-40 to 131°F) Operating Humidity 5 to 95% non-condensing Certifications FCC, IC, CE Software Modes PtMP CPE, PtP*
*Series 1.5 firmware .1 and later 1.5.x. Services SNMP, SSH, Dynamic DNS, Web Server, Remote Protocol, Ping Watchdog Utilities airView®, Speed Test, Orientation, Discovery, Ping, Traceroute, Cable Test, Constellation Auto Distance Adjustment Yes Auto Power Adjustment Yes Network Bridge/Router* Mode
*The Router mode is only available in PtMP CPE mode. Security Yes Static reporting Yes Management interface Bluetooth management for easy setup via
UISP app WEB interface Minimum software requirements
Any modern iOS™ or Android™ based smartphone with web browser System Maximum throughput 900+ Mbps*
*FW- Version 2.3.0 and above. Encryption WPA2-PSK (AES) Uplink/Downlink Ratio 25/75, 33/67, 50/50 RF Working Frequency* 5.15 to 5.95 GHz
*Depending on regulatory region. Max. wired transmission power 25 dBm Channel bandwidth 10/20/30/40/50/60/80/100 MHz*
*FW version 2.3.0 and higher. Antenna gain 29 dBi Isolation 20 dB Beamwidth HPOL: 3 dB: 5.5°, 6 dB: 7.5°
VPOL: 3 dB: 5.5°, 6 dB: 7.5°
Elevation: 3 dB: 5.5° , 6 dB: 7.5° Electrical downward tilt 0°
Questions & answers
What is the delivery time of Ubiquiti 5GHz P2MP 5GHz Ltu XR Client Radio, LTU-XR?
The article Ubiquiti 5GHz P2MP 5GHz Ltu XR Client Radio, LTU-XR is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 11 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Ubiquiti LTU-XR to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Ubiquiti 5GHz P2MP 5GHz Ltu XR Client Radio, LTU-XR always at the best possible price. We can give you a discount of 2% on Ubiquiti 5GHz P2MP 5GHz Ltu XR Client Radio, LTU-XR if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
