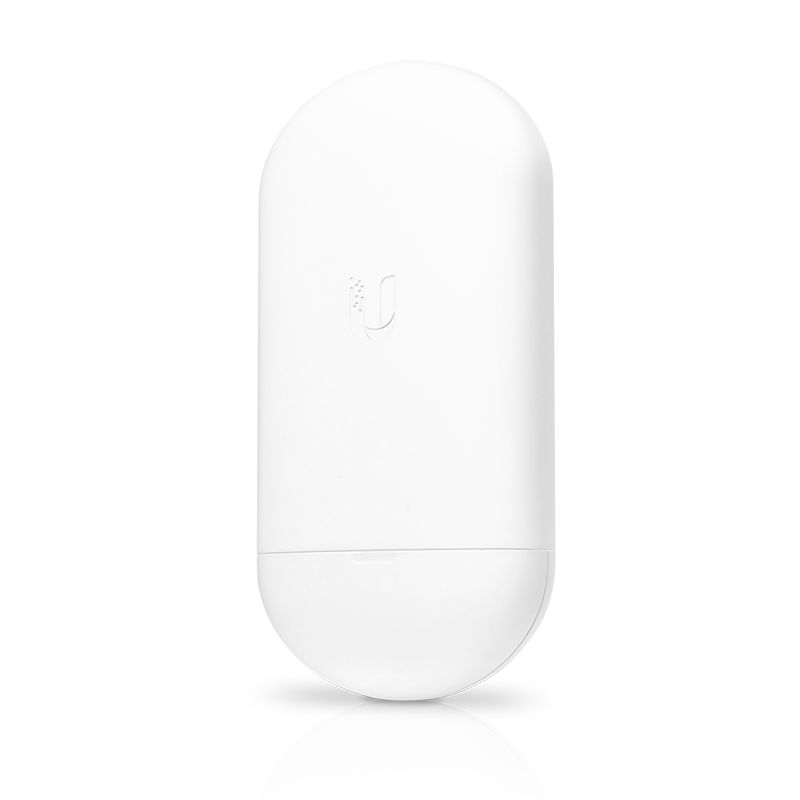

Ubiquiti Loco5AC-5
|
194,67 EUR 201,75 EUR |
|
|
( 231,66 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1789127 |
|---|---|
| Mfg Part No: | Loco5AC-5 |
| Weight: | 1.4 kg |
Product information for Ubiquiti Loco5AC-5:
Compact, UISP-enabled WiFi radio in a classic NanoStation design and an updated airMAX AC chipset. 5 GHz, 10+ km connection range
450+ Mbps throughput
Dedicated spectrum analysis radio
Technical specifications Mechanical Dimensions 179 x 77.5 x 59.1 mm (7.05 x 3.05 x 5,9 cm ( 2,3 inch )) Weight 0.18 kg (6.35 ounces) Body Material UV Stabilized Plastic Mounting Pole Mount Kit (included) Hardware Network Interface (1) GbE RJ45 Port Power Method Passive PoE 2 Pair (Pairs 4, 5+ 7, 8 Return) Power Supply 24V, 0.3A Gigabit PoE supply*
*PoE adapter not included Supported voltage range 24V ±10% Max. energy consumption 7W LEDs Power, Ethernet, (4) Signal strength Operating temperature -40 to 70 °C (-40 to 158 °F) Operating Humidity 5 to 95% non-condensing Certifications CE, FCC, IC System Gain 13 dBi Channel Bandwidths 10/20/30/40/50/60/80 MHz Cross-Pole Isolation 20 dB Min. Max. VSWR 1.8 :1 Beam width 45° (H-pole) / 45° (V-pole) / 45° (elevation) Polarization Dual linear Operating frequency (MHz) Worldwide 5150-5875 MHz USA
U-NII-1
U-NII-2A
U-NII -2C
U-NII-3
5150-5250 MHz
5250-5350 MHz
5240-5725 MHz
5725-5850 MHz Management Radio (MHz) Worldwide 2412 - 2472 MHz USA/California 2412 - 2462 MHz
450+ Mbps throughput
Dedicated spectrum analysis radio
Technical specifications Mechanical Dimensions 179 x 77.5 x 59.1 mm (7.05 x 3.05 x 5,9 cm ( 2,3 inch )) Weight 0.18 kg (6.35 ounces) Body Material UV Stabilized Plastic Mounting Pole Mount Kit (included) Hardware Network Interface (1) GbE RJ45 Port Power Method Passive PoE 2 Pair (Pairs 4, 5+ 7, 8 Return) Power Supply 24V, 0.3A Gigabit PoE supply*
*PoE adapter not included Supported voltage range 24V ±10% Max. energy consumption 7W LEDs Power, Ethernet, (4) Signal strength Operating temperature -40 to 70 °C (-40 to 158 °F) Operating Humidity 5 to 95% non-condensing Certifications CE, FCC, IC System Gain 13 dBi Channel Bandwidths 10/20/30/40/50/60/80 MHz Cross-Pole Isolation 20 dB Min. Max. VSWR 1.8 :1 Beam width 45° (H-pole) / 45° (V-pole) / 45° (elevation) Polarization Dual linear Operating frequency (MHz) Worldwide 5150-5875 MHz USA
U-NII-1
U-NII-2A
U-NII -2C
U-NII-3
5150-5250 MHz
5250-5350 MHz
5240-5725 MHz
5725-5850 MHz Management Radio (MHz) Worldwide 2412 - 2472 MHz USA/California 2412 - 2462 MHz
Questions & answers
What is the delivery time of Ubiquiti Loco5AC-5?
The article Ubiquiti Loco5AC-5 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 11 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Ubiquiti Loco5AC-5 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Ubiquiti Loco5AC-5 always at the best possible price. We can give you a discount of 2% on Ubiquiti Loco5AC-5 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
