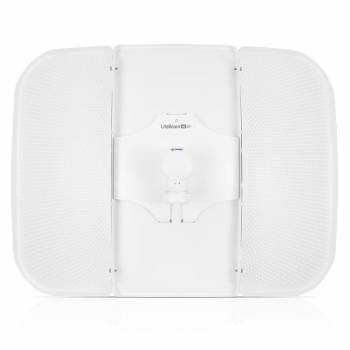

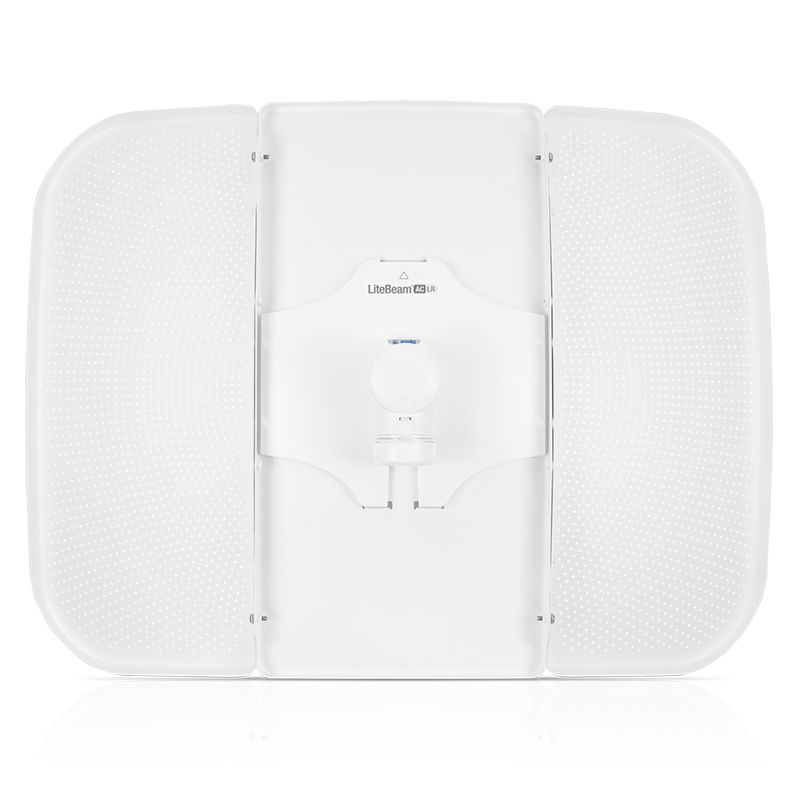

Ubiquiti LiteBeam LBE-5AC-LR
|
92,44 EUR 95,80 EUR |
|
|
( 110,00 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1165778 |
|---|---|
| Mfg Part No: | LBE-5AC-LR |
| Weight: | 1.86 kg |
Product information for Ubiquiti LBE-5AC-LR:
The LiteBeam 5AC Long Range is an affordable airMAX AC CPE designed for long distance connections. 5 GHz, 25+ km connection range
450+ Mbps throughput
Easy to assembleTechnical specifications Mechanical Dimensions 512 x 385.8 x 258.3 mm (20.2 x 15.2 x 25,9 cm ( 10,2 inch )) Weight Without bracket: 1.4 kg (3 lb)
With bracket: 1.7 kg (3.8 lb) Housing materials Aluminum, plastic Mounting Pole mount (kit included) Wind load 550 N at 200 km/h (123.6 lbf at 125 mph) Wind survivability 200 km/h h (125 mph) Hardware Network interface (1) GbE RJ45 port Power method Passive PoE (pairs 4, 5+ 7, 8 return) Power supply 24V, 0.3A Gigabit PoE adapter (included) Max. Power consumption 7W Supported voltage range 24V ± 10% Gain 26 dBi LEDs Power, Ethernet ESD/EMP protection Air/contact ± 24 kV Channel sizes PtP mode: 10/20/30/40/50/60/80 MHz
PtMP mode: 10 /20/30/40 MHz Operating Temperature -40 to 70°C (-40 to 158°F) Operating Humidity 5 to 95% non-condensing Certifications CE, FCC, IC Operating Frequency (MHz) Worldwide 5150-5875 MHz USA
U-NII-1
U-NII-2A
U-NII-2C
U-NII-3
5150-5250 MHz
5250-5350 MHz
5240-5725 MHz
5725-5850 MHz Management Radio (MHz) Worldwide 2412 - 2472 MHz USA/California 2412 - 2462 MHz
450+ Mbps throughput
Easy to assembleTechnical specifications Mechanical Dimensions 512 x 385.8 x 258.3 mm (20.2 x 15.2 x 25,9 cm ( 10,2 inch )) Weight Without bracket: 1.4 kg (3 lb)
With bracket: 1.7 kg (3.8 lb) Housing materials Aluminum, plastic Mounting Pole mount (kit included) Wind load 550 N at 200 km/h (123.6 lbf at 125 mph) Wind survivability 200 km/h h (125 mph) Hardware Network interface (1) GbE RJ45 port Power method Passive PoE (pairs 4, 5+ 7, 8 return) Power supply 24V, 0.3A Gigabit PoE adapter (included) Max. Power consumption 7W Supported voltage range 24V ± 10% Gain 26 dBi LEDs Power, Ethernet ESD/EMP protection Air/contact ± 24 kV Channel sizes PtP mode: 10/20/30/40/50/60/80 MHz
PtMP mode: 10 /20/30/40 MHz Operating Temperature -40 to 70°C (-40 to 158°F) Operating Humidity 5 to 95% non-condensing Certifications CE, FCC, IC Operating Frequency (MHz) Worldwide 5150-5875 MHz USA
U-NII-1
U-NII-2A
U-NII-2C
U-NII-3
5150-5250 MHz
5250-5350 MHz
5240-5725 MHz
5725-5850 MHz Management Radio (MHz) Worldwide 2412 - 2472 MHz USA/California 2412 - 2462 MHz
Questions & answers
What is the delivery time of Ubiquiti LiteBeam LBE-5AC-LR?
The article Ubiquiti LiteBeam LBE-5AC-LR is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 11 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Ubiquiti LBE-5AC-LR to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Ubiquiti LiteBeam LBE-5AC-LR always at the best possible price. We can give you a discount of 2% on Ubiquiti LiteBeam LBE-5AC-LR if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
