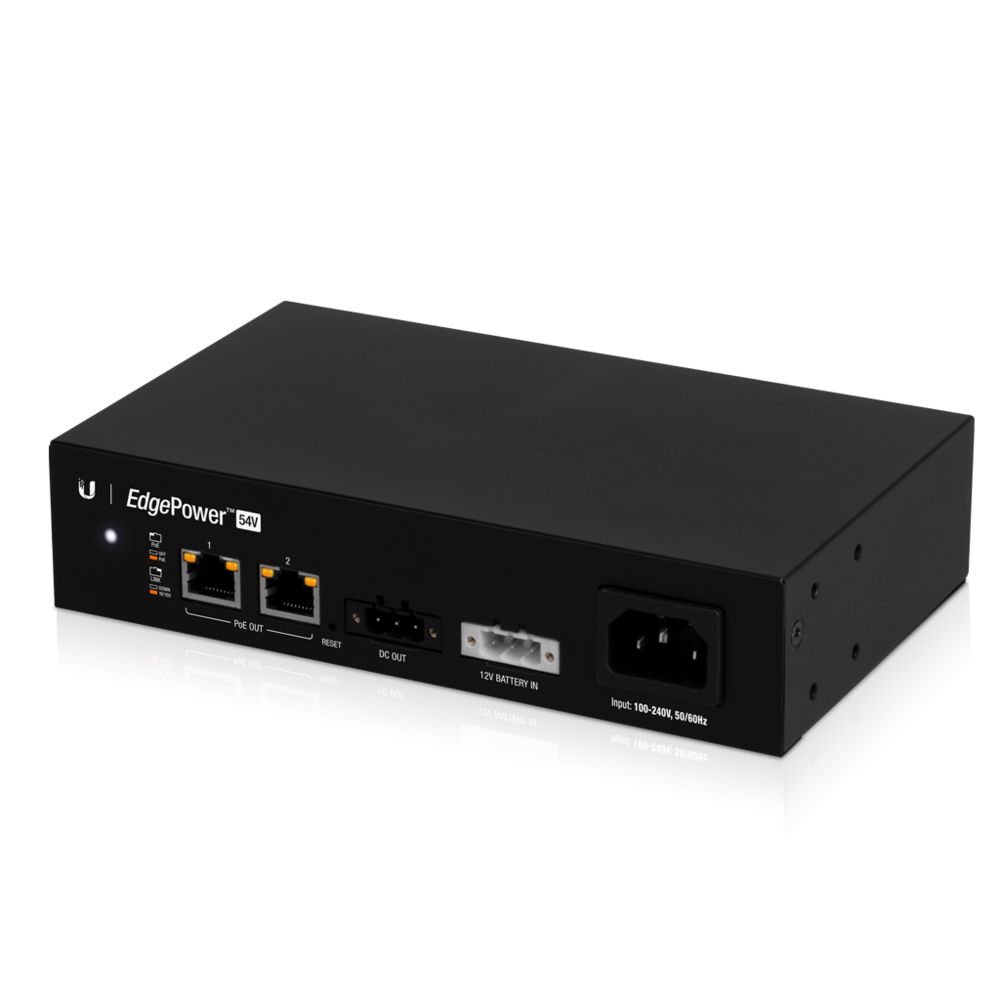

Ubiquiti EdgePower EP-54V-72W
|
145,54 EUR |
|
|
( 173,19 EUR incl. VAT ) ≈ £126.18 | ≈ $169.41 plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1786399 |
|---|---|
| Mfg Part No: | EP-54V-72W |
| Weight: | 3 kg |
Product information for Ubiquiti EP-54V-72W:
EdgeMAX uninterruptible power supply. Reliable and practical UPS for WISPs
UISP remote management
Automatic power outage notifications
Note . Connect to a lead-acid battery only. Using another type of battery could be dangerous.Technical specifications EP-24V-72W Model EP-24V-72W Dimensions 192 x 43.7 x 115 mm (7.56 x 1.72 x 11,5 cm ( 4,5 inch )) Weight 650 g (1 .43 pounds) Interfaces -
Network Management
(2) 10/100 Mbps RJ45 ports
Ethernet In-Band PoE output (2) 24 VDC Passive PoE (Pins 4, 5+ 7, 8-) DC output 24V, 3A AC input 100-240 VAC, 50-60 Hz, universal input Battery input DC terminal block AC input AC/DC 72W battery input 12V lead-acid battery*
*Battery not included Only connect to a lead-acid battery. Connect battery Using another type of battery could be dangerous. System 2W Output 72W System Status RJ45 Data Ports PoE Link/Activity ESD/EMP Protection Air: ± 12 kV, Contact: ± 12 kV Operating Temperature 0 to 40 °C (32 to 104°F) Operating Humidity 10 to 90% non-condensing Certifications CE, FCC, IC EP-54V-72W Model EP-54V-72W Dimensions 115 x 192 x 43.7 mm (4.53 x 7.56 x 1.72 in ) Weight 650 g (1.43 pounds) Interfaces -
Network Management
2) 10/100 Mbps RJ45 ports
Ethernet In-Band PoE output (2) 54 VDC Passive PoE (Pins 4, 5+ 7, 8-) DC -Output 54V, 1.3A Power supply method:
AC input,
battery input
100-240VAC, 50-60Hz, DC terminal block with universal input Power supply,
AC input,
battery input
AC/DC 72W
12VDC lead-acid battery*
* Battery not included. Connect to a lead-acid battery only. Using another type of battery could be dangerous. Max Power Consumption
System Output
_
2W
72W LEDs
System
RJ45 Data Ports
Status
PoE Link/Activity ESD/EMP Protection Air: ± 12 kV, Contact: ± 12 kV Operating Temperature 0 to 40 °C (32 to 104 °F) Operating Humidity 10 to 90 % non-condensing Certifications CE, FCC, IC EP-54V-150W Model EP-54V-150W Dimensions excluding mounting brackets 299.8 x 286.9 x 42.55 mm (11.89 x 11.3 x 1.68 in.) Weight without brackets 2.7 kg (5.95 pounds) Power method 100-240 VAC/50-60 Hz, universal input power supply module 54 V, 150 W AC/DC,
model EP-54V-150W-AC, 300 W (2 Power supply modules with 150 W each) LEDs supply the Ethernet power supply with power System on/off
installed in power supply 1 Power supply with maximum output power 150 W (1 power supply module)
Management port link
PSU1+PSU2, PSU1/PSU2 Network interface (1) 10/100 RJ45 Ethernet Management interface Ethernet In-band, Web UI Rack mount Yes, 1U high Operating temperature 0 to 40°C (32 to 104°F) Operating Humidity 10 to 90% RH ESD/EMP Protection Air ± 24kV Contact ± 24KV Certifications CE, FCC, IC
