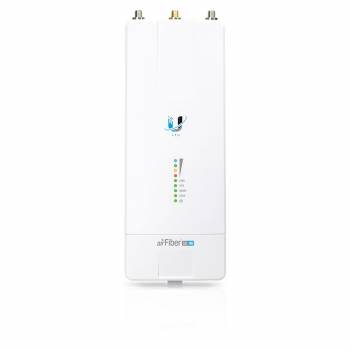

Ubiquiti AirFiber, AirFiber, airFiber 5XHD
|
340,68 EUR 353,06 EUR |
|
|
( 405,41 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1174173 |
|---|---|
| Mfg Part No: | AF-5XHD |
| Weight: | 1.16 kg |
Product information for Ubiquiti AF-5XHD:
True 1Gbps+ spectrally efficient, noise-resistant PTP technology designed specifically for WISPs. 5 GHz, over 100 km connection range
1000+ Mbps throughput
Dedicated spectrum analysis radio
Integrated GPS synchronization
2+ Mpps processing Technical specifications Mechanical Dimensions 224 x 82 x 48 mm (8.82 x 3.23 x 4,8 cm ( 1,9 inch )) Weight 0.35 kg
( 0.77 lb) Mounting
airFiber 1) GbE RJ45 port power method Passive PoE (Pins 1, 2, 4, 5 (+) and Pins 7, 8, 3, 6 (-)) Power supply 24V, 1A PoE Gigabit adapter (included included) Supported voltage range 18-54V DC Max. power consumption 12W GPS antenna External magnetic stand Operating temperature -40 to 55°C (-40 to 131°F) Certifications CE, FCC, IC Software Modes PtP Master/Slave Max. Throughput 1+ Gbit/s Max. range* 100+ km
*Throughput and range values may vary depending on environmental conditions. Encryption AES-256 RF Max. transmission power* 29 dBm
*Depending on regional regulations. Frequency accuracy ± 2.5 ppm without GPS synchronization
± 0.2 ppm with GPS synchronization Channel bandwidth 10/20/30/40/50/60/80/100 MHz selectable
programmable uplink and downlink duty cycles Operating frequency (MHz) Worldwide 4800 - 6200 MHz*
*Depending on regional regulations. US/CA
U-NII-1
U-NII-2A
U-NII-2C
U-NII-3
5150 - 5250 MHz
5250 - 5350 MHz
5470 - 5725 MHz
5725 - 5850 MHz
1000+ Mbps throughput
Dedicated spectrum analysis radio
Integrated GPS synchronization
2+ Mpps processing Technical specifications Mechanical Dimensions 224 x 82 x 48 mm (8.82 x 3.23 x 4,8 cm ( 1,9 inch )) Weight 0.35 kg
( 0.77 lb) Mounting
airFiber 1) GbE RJ45 port power method Passive PoE (Pins 1, 2, 4, 5 (+) and Pins 7, 8, 3, 6 (-)) Power supply 24V, 1A PoE Gigabit adapter (included included) Supported voltage range 18-54V DC Max. power consumption 12W GPS antenna External magnetic stand Operating temperature -40 to 55°C (-40 to 131°F) Certifications CE, FCC, IC Software Modes PtP Master/Slave Max. Throughput 1+ Gbit/s Max. range* 100+ km
*Throughput and range values may vary depending on environmental conditions. Encryption AES-256 RF Max. transmission power* 29 dBm
*Depending on regional regulations. Frequency accuracy ± 2.5 ppm without GPS synchronization
± 0.2 ppm with GPS synchronization Channel bandwidth 10/20/30/40/50/60/80/100 MHz selectable
programmable uplink and downlink duty cycles Operating frequency (MHz) Worldwide 4800 - 6200 MHz*
*Depending on regional regulations. US/CA
U-NII-1
U-NII-2A
U-NII-2C
U-NII-3
5150 - 5250 MHz
5250 - 5350 MHz
5470 - 5725 MHz
5725 - 5850 MHz
Questions & answers
What is the delivery time of Ubiquiti AirFiber, AirFiber, airFiber 5XHD?
The article Ubiquiti AirFiber, AirFiber, airFiber 5XHD is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 11 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Ubiquiti AF-5XHD to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Ubiquiti AirFiber, AirFiber, airFiber 5XHD always at the best possible price. We can give you a discount of 2% on Ubiquiti AirFiber, AirFiber, airFiber 5XHD if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
