U.I. Lapp 70250268 Lapp EPIC ULTRA HB 6 SGR LB 6-13 BRUSH EPIC® industrial connector

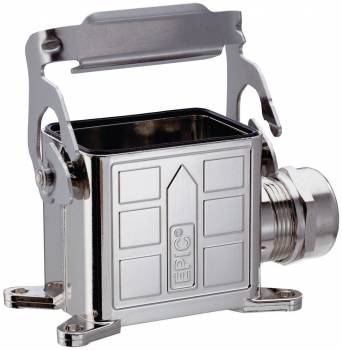

This image may differ from the desired article.

43,66 EUR

( 51,96 EUR incl. VAT )

plus delivery charges

Delivery time on request

Printing view Bookmark Wholesale Inquiry

Lieske Part No.:

2051862

Mfg Part No:

70250268

UPC/EAN:

4044777869879

Weight:

0.12 kg

Graduated prices net

From pieces	Price per pieces
10	41,04 EUR
25	38,42 EUR
50	35,80 EUR
75	33,18 EUR

Further Cable lugs, connectors, blank - isolated from U.I. Lapp Further products in category Cable lugs, connectors, blank - isolated All products of U.I. Lapp

Product information for U.I. Lapp 70250268:

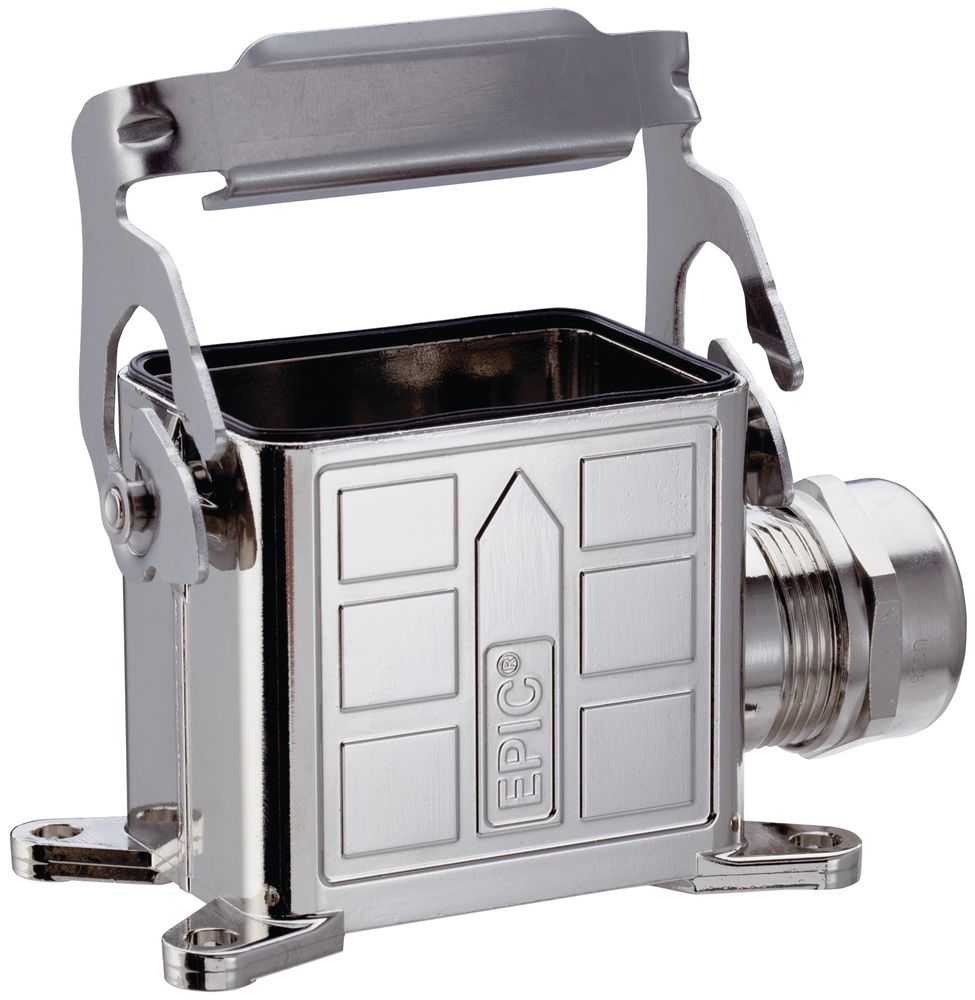

Base housing EPIC® ULTRA HB 6 SGR LB 6-13 BRUSH (1), Base housing, Size: 6B, Connector design: Standard, Longitudinal lever, Number of cable entries: 1, Zinc alloy, nickel-plated, EMC shielding, IP protection class when plugged in: IP 65, Areas of application: To protect the connector insert from environmental influences,Withstands high chemical and mechanical stress,Suitable for outdoor use,Especially for environments in which electromagnetic compatibility (EMC) is required,With modular connector assembly also suitable for signal and data transmission,Especially for environments in which the product comes into contact with water, cleaning agents and salty substances,For use with many EPIC® rectangular connector inserts or module inserts,For the power supply connection of devices and machines in various applications, Benefits: The housing variants allow different clamping ranges (6 - 13 mm or 9 - 17 mm),The arrow as new design element on the housing surface is easy to feel and simplifies plugging in spatially confined and possibly poorly visible application areas,UL certification according to technical data enables use of the product in North America,VDE-tested quality,With closed base and side cable entry for orderly cable laying,Locking is done via a longitudinal bracket made of stainless steel,The base housing can be plugged into many commercially available sleeve housings,For article names with the addition 'BRUSH', the integrated cable gland is supplemented by our innovative SKINTOP® BRUSH brass brush, which enables 360° contact of the copper shielding braid and thus an even more effective discharge of the interference signals. The brush wires enable easier assembly of the connector
and maintain the gapless 360° coverage of the copper shielding braid
,Corresponds to protection class IP 65 when locked,The integrated SKINTOP® cable gland made of brass is used for sealing and strain-relieving cable entry Compared to enclosures where the cable gland is added separately, the overall size of the enclosure is more space-saving, protection class classified according to NEMA 250 and tested according to UL50E
Type: EPIC ULTRA H-B 6 SGR LB 6-13 BRUSH

Questions & answers

What is the delivery time of U.I. Lapp 70250268 Lapp EPIC ULTRA HB 6 SGR LB 6-13 BRUSH EPIC® industrial connector ?

The article U.I. Lapp 70250268 Lapp EPIC ULTRA HB 6 SGR LB 6-13 BRUSH EPIC® industrial connector is currently not in stock und muss auftragsbezogen bestellt werden.

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of U.I. Lapp 70250268 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you U.I. Lapp 70250268 Lapp EPIC ULTRA HB 6 SGR LB 6-13 BRUSH EPIC® industrial connector always at the best possible price. We can give you a discount of 2% on U.I. Lapp 70250268 Lapp EPIC ULTRA HB 6 SGR LB 6-13 BRUSH EPIC® industrial connector if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 10 pieces of U.I. Lapp 70250268 Lapp EPIC ULTRA HB 6 SGR LB 6-13 BRUSH EPIC® industrial connector we can offer you a price of 41,04 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
