U.I. Lapp 70250212 Lapp EPIC ULTRA HB 10 TS QB 11-21 BRUSH grommet housing EMC side bolt

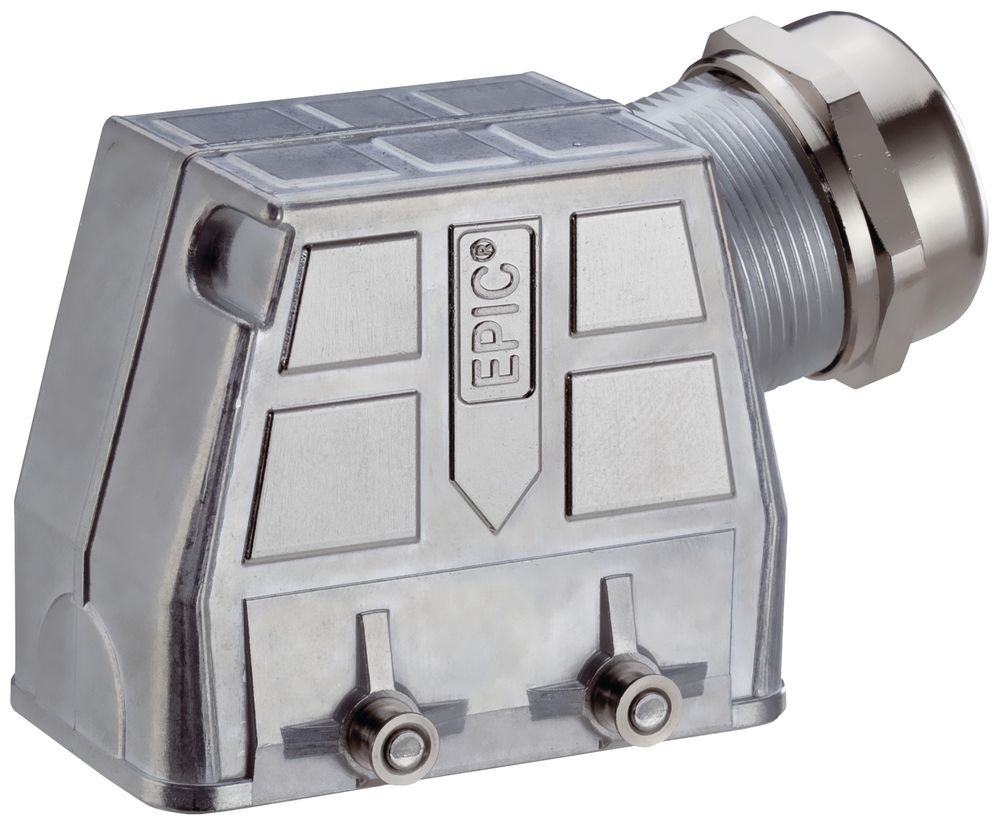

Sleeve housing EPIC® ULTRA HB 10 TS QB 11-21 BRUSH (1), Sleeve housing, Size: 10B, Connector design: Standard, Cross lever, Number of cable entries: 1, Zinc alloy, nickel-plated, EMC shielding, IP protection class when plugged in: IP 68 - 1m (10h), Areas of application: To protect the connector insert from environmental influences,Withstands high chemical and mechanical stress,Suitable for outdoor use,Especially for environments in which electromagnetic compatibility (EMC) is required,With modular connector assembly also suitable for signal and data transmission,Especially for environments in which the product comes into contact with water, cleaning agents and salty substances,For use with many EPIC® rectangular connector inserts or module inserts,For the power supply connection of devices and machines in various applications, Benefit: The arrow as a new design element on the housing surface is simple can be felt and simplifies plugging in applications with limited space and which are difficult to see. Corresponds to protection class IP 68 when locked. The housing variants allow different clamping ranges (7 - 15 mm or 11 - 21 mm). UL certification in accordance with the technical data enables the product to be used in North America. VDE-tested quality. With side cable entry for orderly cable routing and to
prevent excessive bending of the cable. The sleeve housing can be plugged into many commercially available housings (surface-mounted, base or coupling housings). The locking is done via stainless steel crossbars on the counter housing. For article names with the addition 'BRUSH', the integrated cable gland is supplemented by our innovative SKINTOP® BRUSH brass brush, which enables 360° contact with the copper shielding braid and thus even more effective dissipation of the interference signals. The brush wires enable easier assembly of the connector
and maintain the Complete 360° coverage of the copper shielding braid
,The integrated SKINTOP® cable gland made of brass serves to seal and relieve strain on the cable entry. Compared to housings where the cable gland is added separately, the overall size of the housing is more space-saving,Protection class classified according to NEMA 250 and tested according to UL50E
Type: EPIC ULTRA H-B 10 TS QB 11-21 BRUSH (1)
