U.I. Lapp 70250210 Lapp EPIC ULTRA HB 10 TS QB 7-15(1) sleeve housing EMC side bolt

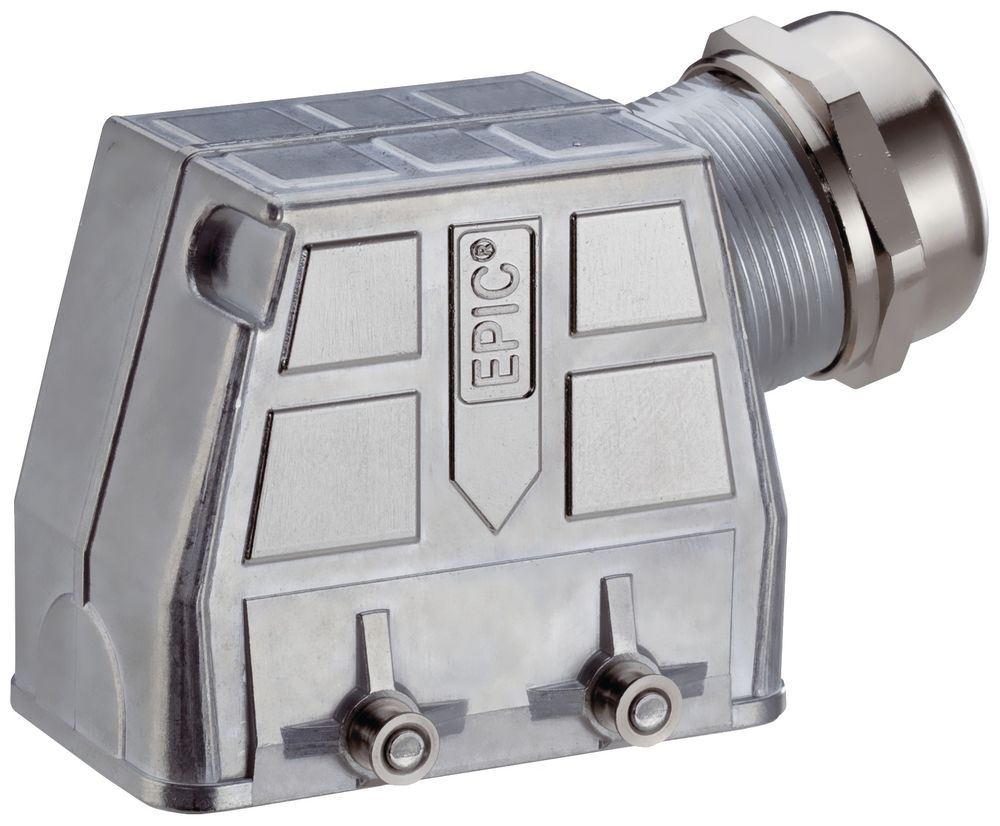

Sleeve housing EPIC® ULTRA HB 10 TS QB 7-15 (1), Sleeve housing, Size: 10B, Connector design: Standard, double lever, Number of cable entries: 1, Zinc alloy, nickel-plated, EMC shielding, IP protection class when plugged in: IP 68 - 1m (10h), Areas of application: To protect the connector insert from environmental influences,Withstands high chemical and mechanical stress,Suitable for outdoor use,Especially for environments in which electromagnetic compatibility (EMC) is required,With modular connector assembly also suitable for signal and data transmission,Especially for environments in which the product comes into contact with water, cleaning agents and salty substances,For use with many EPIC® rectangular connector inserts or module inserts,For the power supply connection of devices and machines in various applications, Benefits: The arrow as a new design element on the housing surface is easy to feel and simplifies plugging in spatially confined and possibly poorly visible application areas,Corresponds to protection class IP 68 when locked,The housing variants allow different clamping ranges (7 - 15 mm or 11 - 21 mm),UL certification in accordance with technical data enables use of the product in North America,VDE-tested quality,With side cable entry for orderly cable routing and to
prevent excessive bending of the cable,The sleeve housing can be plugged into many commercially available housings (surface-mounted, base or coupling housing),Locking is done via stainless steel crossbars on the counter housing,For article names with the addition 'BRUSH', the integrated cable gland is supplemented by our innovative SKINTOP® BRUSH brass brush, which enables 360° contact of the copper shielding braid and thus even more effective discharge of interference signals. The brush wires enable easier assembly of the connector
and maintain the gap-free 360° coverage of the copper shielding braid
,The integrated SKINTOP® cable gland made of brass is used for sealing and strain-relieving cable entry. Compared to housings where the cable gland is added separately, the overall size of the housing is more space-saving,Protection class classified according to NEMA 250 and tested according to UL50E
Type: EPIC ULTRA H-B 10 TS QB 7-15 (1)
