U.I. Lapp 53105301 Lapp SKINTOP HYGIENIC SC M16x1,5

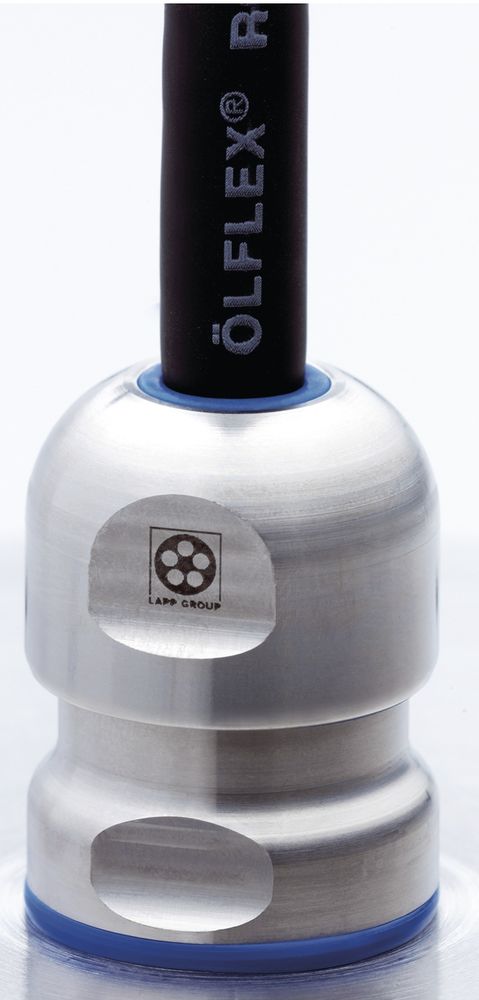

Cable gland SKINTOP® HYGIENIC SC M16X1.5, cable gland, M 16, clamping range (min./max.): 6.5 - 9 mm, wrench size 1: 20, UV-resistant, IP 68 - 10 bar (30 min), IP 69, EMC shielding, areas of application: Withstands high chemical and mechanical stress, Especially for hygiene-critical areas of the food industry, where the product is to be installed in the product zone or in the direct production environment of food, Also for use in hygiene-critical areas of the pharmaceutical and chemical industries, For the EMC-compliant introduction of copper-shielded cables, Benefits: Certified according to EHEDG for use in hygiene-critical areas in Europe (certification type EL, certification class Class I AUX) in compliance with the hygienic design principles (guideline 'Design criteria for hygienic machines, equipment and components'), Best possible sealing enables protection class IP 68 (10 bar) and IP 69,Optimal EMC protection through integrated, highly conductive and flexible contact spring, which creates a low-resistance transition between the copper shielding braid and the screw connection,Multiple Food & Beverage certifications for Europe and North America,Sealing material in blue color to easily distinguish the cable gland from food,Certified according to NSF / ANSI 169 for use in hygiene-critical areas in North America (Standard Special Purpose Food Equipment and Devices / for use in Food Zone Non Contact),Hygienic design with smooth surfaces and contours without corners and edges prevents residues such as liquids and microorganisms from accumulating and posing a contamination risk for food machines. This promotes simple, frequent and safe product cleaning,Sealing material compliant with FDA 21 CFR 1772600, especially for the food and beverage industry in North America,Tested resistance to ECOLAB® disinfection and Cleaning products
Type: SKINTOP HYGIENIC SC M16x1,5

The item price shown refers to 5 pieces U.I. Lapp 53105301
