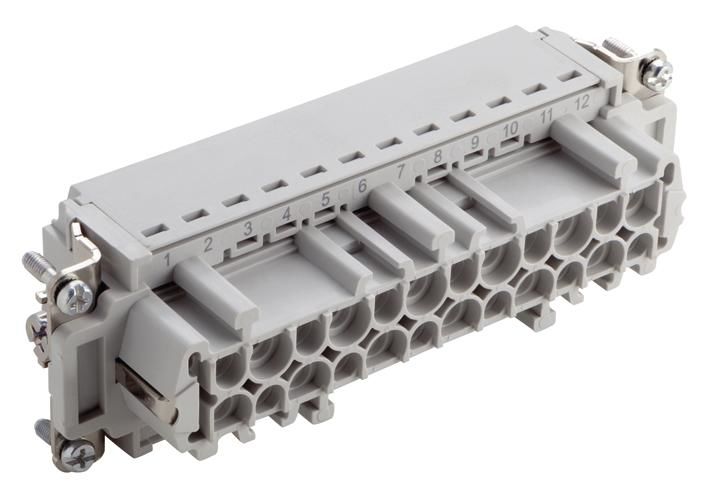

U.I. Lapp 44423207 Lapp EPIC H-BE 24 BP socket insert push-in connection

Insert with push-in connection EPIC® H-BE 24 BP, Insert with push-in connection socket, Number of contacts: 24+PE, Size: 24B, 600 V AC rms / DC according to UL/CSA, 13 A according to UL/CSA, For cross-section (min./max.): 0.14mm² - 2.5mm², Contacts included, Polyamide, Areas of application: For transmitting control signals to actuators and servo drives, Suitable for wiring inside the control cabinet, Typical areas of application are stage, lighting and lifting technology, For connecting the power supply to devices and machines in various applications, Benefits: Made of robust polyamide (flammability class V-0 according to UL94 test procedure for the flammability of plastics), Push-in connection allows the shortest connection times: Stranded wires with wire end ferrules can be inserted and contacted completely without tools, To release the contact all you have to do is press the orange button. For stranded wires without wire end ferrules, the button must be pressed before inserting or removing them to open the spring. ,Inserts from the EPIC® H-BE series are classics in the industry and are ideal for use with higher voltages and currents.,Wide variety of suitable housing variations. ,UL certification in accordance with the technical data enables the product to be used in North America.,The round test socket for 2 mm standard test probes is positioned in such a way that it is still accessible for signal testing even when the insert is already installed in the attachment housing. ,In the EPIC® H-BE series, inserts of different connection types can be combined with one another as desired within the same size (screw, crimp, cage clamp or push-in).
Type: EPIC H-BE 24 BP

The item price shown refers to 5 pieces U.I. Lapp 44423207
