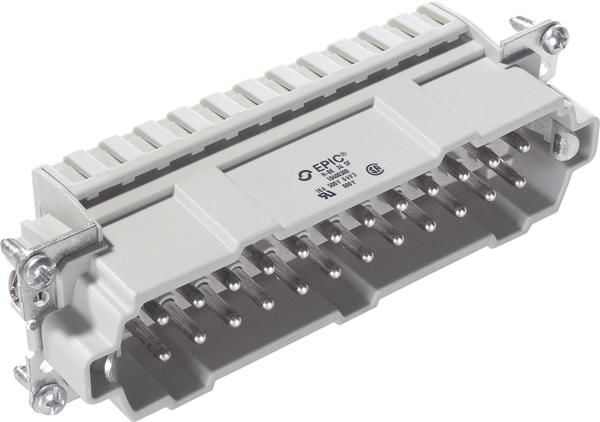

U.I. Lapp 10400300 Lapp contact insert, H-BE 24 SF plug insert m. Clamping spring

This image may differ from the desired article.

101,13 EUR

( 120,34 EUR incl. VAT )

plus delivery charges

Delivery time on request

Sales unit: 5 pieces

Printing view Bookmark Wholesale Inquiry Suggest price

Lieske Part No.:

982065

Mfg Part No:

10400300

UPC/EAN:

4044773582550

Weight:

0.11 kg

Graduated prices net

From pieces	Price per pieces
15	95,06 EUR
30	88,99 EUR
70	82,93 EUR
100	76,86 EUR

Further Industrial Connectors from U.I. Lapp Further products in category Industrial Connectors All products of U.I. Lapp

Product information for U.I. Lapp 10400300:

Insert with cage clamp connection H-BE 24 SF MALE INSERT W. CLAMP SPRING, Insert with cage clamp connection pin, Number of contacts: 24+PE, Size: 24B, 500 V AC rms / DC according to IEC, 16 A according to UL/CSA, For cross section (min./max.): 0.5mm² - 2.5mm², Contacts included, Polycarbonate, Areas of application: For transmitting control signals to actuators and servo drives, Suitable for wiring inside the control cabinet, Typical areas of application are stage, lighting and lifting technology, For connecting the power supply to devices and machines in various applications, Benefits: Inserts from the EPIC® H-BE series are considered classics in industry and are ideal for use with higher voltages and currents, Wide variety of suitable housing variations, UL certification according to technical data enables use of the product in North America, Cage clamp connection allows assembly without special tool and creates a vibration-proof connection between contact and cable. The connection of stranded wires is possible with and without wire end ferrules. Made of robust polycarbonate (flammability class V-2 according to UL94 test procedure for the flammability of plastics). In the EPIC® H-BE series, inserts of different connection types can be combined with one another as desired within the same size (screw, crimp, cage clamp or push-in).
Type: H-BE 24 SF STECKEREI

The item price shown refers to 5 pieces U.I. Lapp 10400300

Questions & answers

What is the delivery time of U.I. Lapp 10400300 Lapp contact insert, H-BE 24 SF plug insert m. Clamping spring?

The article U.I. Lapp 10400300 Lapp contact insert, H-BE 24 SF plug insert m. Clamping spring is currently not in stock und muss auftragsbezogen bestellt werden.

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of U.I. Lapp 10400300 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you U.I. Lapp 10400300 Lapp contact insert, H-BE 24 SF plug insert m. Clamping spring always at the best possible price. We can give you a discount of 2% on U.I. Lapp 10400300 Lapp contact insert, H-BE 24 SF plug insert m. Clamping spring if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 15 pieces of U.I. Lapp 10400300 Lapp contact insert, H-BE 24 SF plug insert m. Clamping spring we can offer you a price of 95,06 EUR per piece. The more you buy, the cheaper the article will be.

You can also send us a price proposal for your desired quantity of U.I. Lapp 10400300 Lapp contact insert, H-BE 24 SF plug insert m. Clamping spring via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.

How many units does the article contain?

U.I. Lapp 10400300 Lapp contact insert, H-BE 24 SF plug insert m. Clamping spring is offered by us in a sales unit of 5 pieces If you need a larger quantity, you can contact us at any time. We will make a special offer for you

1x	Lappkabel H-BE 24 SF STECKEREI - Lapp contact insert 24 SF plug insert Clamping spring U.I. Lapp 10400300 Lapp contact insert, H-BE 24 SF plug insert m. Clamping spring	101,13 EUR
