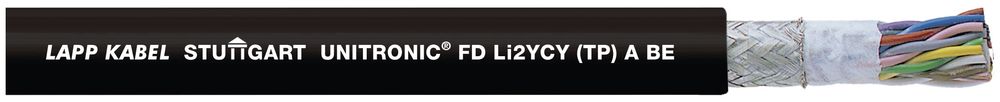

U.I. Lapp 0031405 Lapp UNITRONIC FD Li2YCY (TP) A BE 2X2X0.5 data transmission system

Low frequency data cable UNITRONIC® FD Li2YCY (TP) A BE 2X2X0.5, Low frequency data cable, 2X2X0.5, Core color code: DIN 47100, PVC, Shielded, UL recognized, Drag chain, Areas of application: PVC outer jacket is conditionally oil-resistant, Can be used in dry and damp rooms, For use in control, regulation and measuring circuits, Especially for environments in which electromagnetic compatibility (EMC) is required, Cable structure allows highly flexible, continuously moving use in moving machine parts and in the drag chain, with horizontal travel distances of up to 10 m, Universally applicable at machine interfaces for many applications for data and signal transmission in the low frequency range, Benefits: Relatively very small bending radii are achieved through highly flexible cable structure, Ideal protection against electromagnetic interference through copper shielding braid with a high degree of coverage, Operating voltage of 1000 V according to UL permitted for North America,Compact design enables small outer diameters despite high number of cores,Low-capacitance core insulation for long transmission paths,Product with multiple certification enables universal use, reduces the variety of parts and thus ensures savings in logistics,UL/CSA certification according to technical data enables use of the product in North America,The pair stranding (TP, twisted pair) with short pitch lengths ensures that the conductor circuits are well decoupled,Proven cable, successfully tested for 2 million bending cycles in the drag chain
Type: UNITRONIC FD Li2YCY (TP) A BE 2X2X0,5
