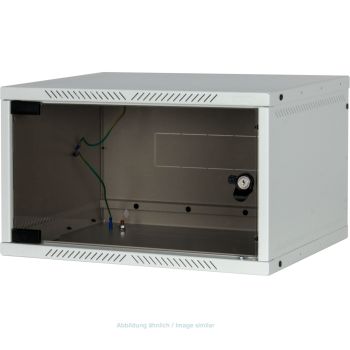

Triton RXA-06-AS4-CAX-A1
48,3 cm ( 19 inch ) Wall Cabinet 6U, 550x400mm, demountable, grey content_copy

RXA wall-mounted cabinet represents the conception of flat pack, which means a demountable cabinet that is supplied disassembled
FLAT-PACK-CONCEPTION
Reduces cost of transportation and storage. Together with a unique construction, it contributes to the attractive price while keeping all functional characteristics.
MOUNTING
Thanks to the unique construction, the assembly procedure of RXA takes only few minutes and it does not almost require any tools (Torx T25). Plastic pins are used to join all the individual parts.
DESCRIPTION, PURPOSE OF USEDemountable 48,3 cm ( 19 inch ) wall mounted cabinet with IP30 protection, supplied disassembled
Cabinet is to be hanged right on the wall.
Cabinet includes two adjustable vertical rails
Cabinet construction: Cabinet is made from parts joined by plastic pins / glass door: safety hardened glass, thickness 4 mm
Max. permissible load of the door is 10 kg.
Min. thickness of the surface finish is 65 micrometer
Cabinets are intended for installation of data and telecommunication devices and their distribution systems
All parts are connected with earthing cables that have to be properly fixed and inserted into connectors during all the time when using the cabinet.
There is one M8 screw placed on the bottom part of the cabinet as an earthing main point
Cable openings covered with breakout-type blanking panels are placed in the top and the bottom part of the cabinet rear side, others are in the top and the bottom side of cabinet
OPERATION CONDITIONS
Operation environment:Office
The cabinet is not intended for outdoor installations and for installations in environment that can influence negatively the functionality of the cabinet and the mounted devices (e.g. environment with danger of explosion or humid and wet surroundings)
Must be protected against:
Mechanical damage
Improper manipulation
A different usage than the cabinet is intended for
Improper manipulation is especially:Overloading (maximum recommended load exceeding)
Device installation that can influence negatively operation and function of the cabinet or the installed equipment
Change of the construction or design of the cabinet
INSTALLATION OF THE CABINET:It is necessary to assemble all single cabinet parts and to join them with delivered plastic pins. See the enclosed manual for the detailed assembly procedure
This type of cabinet is to be hanged right on the wall using screws, wall plugs and washers. Spacing of mounting holes is indicated as "R" in the cabinet scheme
To secure the maximum recommended load, it is necessary to fi x the cabinet on the wall with an appropriate carrying capacity (brick, concrete or similar) and to distribute the installed loading equally
To avoid dust penetration in case that cables lead through some of the cable openings, you can seal it with the use of a blanking panel with a brush
ENVIRONMENT PROTECTION:All parts are made of recyclable materials and after its discard, it is necessary to dispose the cabinet according to valid regulations
Specifications: Demountable 48,3 cm ( 19 inch ) wall mounted cabinet, one-piece
glass door
Dimensions: Width 550mm, Depth 400mm

Technical data
Protection class	IP30
Colour	Grey (RAL7035)
Width packaging	0.550m
Length packaging	0.400m
Height unit	6U
Width	550mm
Weight	13.800kg
Door height	270mm
Door width	505mm
Packaging volume	0.0704m³
Recommended maximum load	25kg
Height (outside)	320mm
Depth	400mm
Height packaging	0.320m
Detachable side panels
Demountable
Detachable rear panel

---
