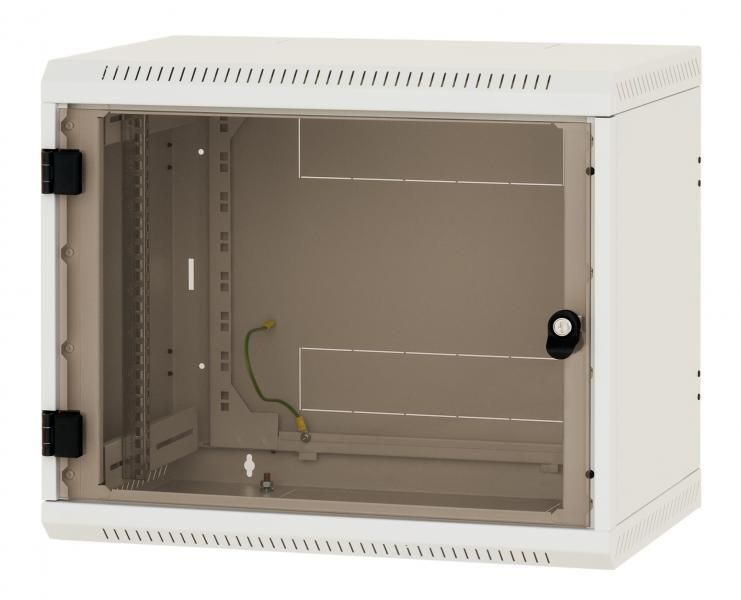

Triton 48,3 cm ( 19 inch ) wall housing, 15U, 1-part, T495, light gray, with fan cutout content_copy

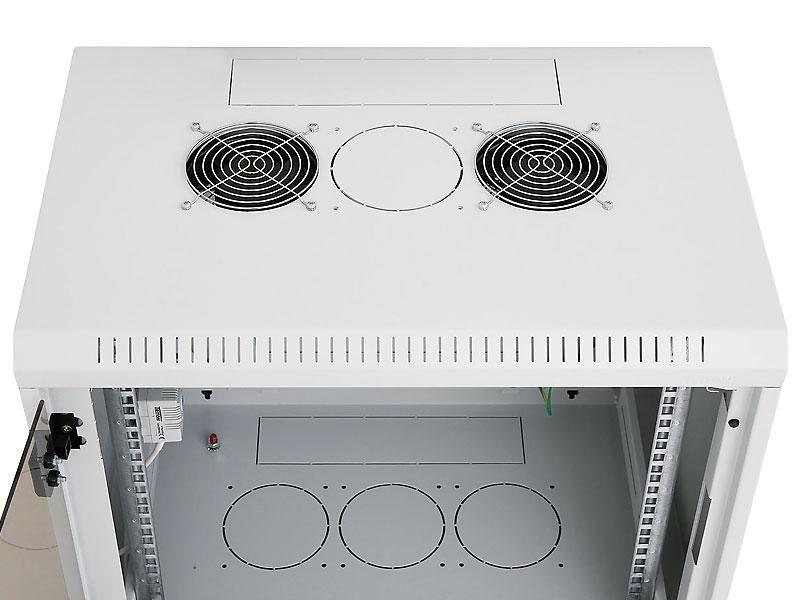

*Order-related, cannot be canceled*, description: One-piece wall distributor housing, protection level IP 30, load capacity 100kg, 15 HE, W600 x H770x D495 mm. Color: RAL 7035 - light gray Consisting of a welded wall housing, with four perforated mounting holes for direct wall mounting. With 2 fastening strips on the left and right, for variable depth adjustment of the 2 galvanized 19 grid rails. Cable entries with break-out covers are located at the top and bottom of the rear wall of the housing, as well as another one each in the roof and floor. With a front glass door that opens 180° and has a security lock. With grounding system (M8 screw as central grounding point, the distribution frame and all removable parts (side and rear panels, doors, ...) are connected with grounding cables, which must be properly fastened and plugged in throughout the entire service life of the cabinet). Break-out openings in the roof and bottom of the housing for the use of fans. Scope of delivery fully assembled. Material: Deep-drawn steel sheet 1.5 mm, 2x 15 HU vertical ratchet rails with adjustable depth, galvanized at the front, 2x 15 HU vertical ratchet rails permanently mounted at the rear. Blind covers pre-assembled. In the accessory pack: 8x screw M6x16, 8x nut M6, 8x plastic washer, 4x wood screw 6x50, 4x washer 6.4, 4x dowel 10mm, 2x door key, 1x brush insert, 1x edging tape 1m.
