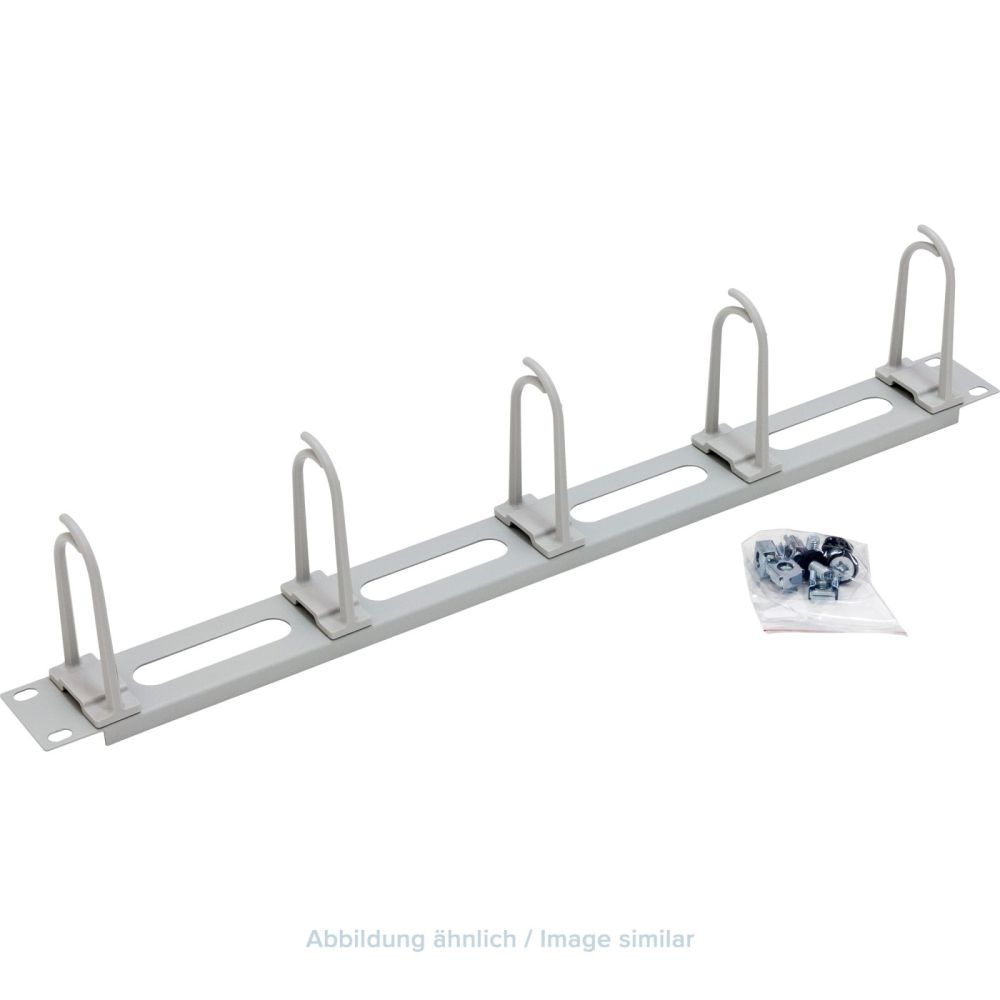

Triton RAC-VP-X16-A1 48,3 cm ( 19 inch ) accessory cable routing plate with 5 click-in ring, oval content_copy

The Triton RAC-VP-X16-A1 is a 48,3 cm ( 19 inch ) cable management panel with a height of 1 U, specifically designed for efficient management and organization of cables in rack enclosures. The panel serves as a structured cable routing level to make cabling clear, facilitate access to devices, and support airflow within the rack environment. It is made of sheet steel and available in Grey (RAL7035), allowing it to blend visually into standardized rack environments.

Applications
This cable management panel is used in IT and network environments where organized cabling in 48,3 cm ( 19 inch ) racks is required. It is particularly suitable for server rooms, data centers, network and communication installations, where clear cable routing structure contributes to maintenance and airflow. Its use in rack enclosures with passive or active ventilation enables improved cooling performance, as cables do not obstruct airflow.

Functions and Equipment in Detail
The panel features six fixed, large cable loops that can be mounted by simply clicking into pre-formed openings. These loops are used for guiding and securing cables, achieving an organized cabling layout. The cable entry holes are oval-shaped and allow flexible adaptation to different cable diameters. The entry holes are fitted with plastic cable entry grommets that protect cable insulation mechanically and prevent damage.

Technology Explained Simply
The panel is manufactured in the standard width of 48.26 cm (19") and thus fits into all common 19" rack systems. The height of 1 U (rack unit) corresponds to a standard dimension of approximately 4.45 cm, enabling efficient use in racks with limited space. The construction from sheet steel ensures high mechanical stability and durability. The Grey color (RAL7035) is standard in the IT and electrical industry and ensures visual harmony with other rack components.

Compatibility and Accessories
The cable management panel is designed for mounting in 48,3 cm ( 19 inch ) racks and is delivered with a mounting kit consisting of four M6x10 screws, four plastic washers, and four M6 cage nuts. These components enable secure and durable mounting in the rack. The cable loops are designed as click-in elements, allowing for quick and tool-free installation. The oval entry holes are universally applicable and adapt to various cable types.

Mounting and Installation
Mounting is done by inserting the screws through the designated holes in the panel and securing them to the rack eyes using the supplied cage nuts. The plastic washers ensure a secure fit and prevent damage to the rack. The cable loops are mounted by simply clicking them into the designated openings, requiring no additional tools. Installation is therefore quick and can be performed without special expertise.

Operational Advantages
Using the cable management panel improves cable clarity, simplifying maintenance and fault diagnosis. The organized cable routing reduces the risk of tangling and damage. The oval entry holes with plastic grommets protect cables and prevent mechanical stress. The mounting components ensure stable installation, even with frequent access to cables. Integration into the rack environment requires no additional modifications, as the panel meets standard 48,3 cm ( 19 inch ) rack dimensions.

Technical data
Height packaging	0.022m
Length packaging	0.485m
Width packaging	0.045m
Height unit	1U
Packaging volume	0.0005m³
Colour	Grey (RAL7035)
Weight	0.220kg

---
