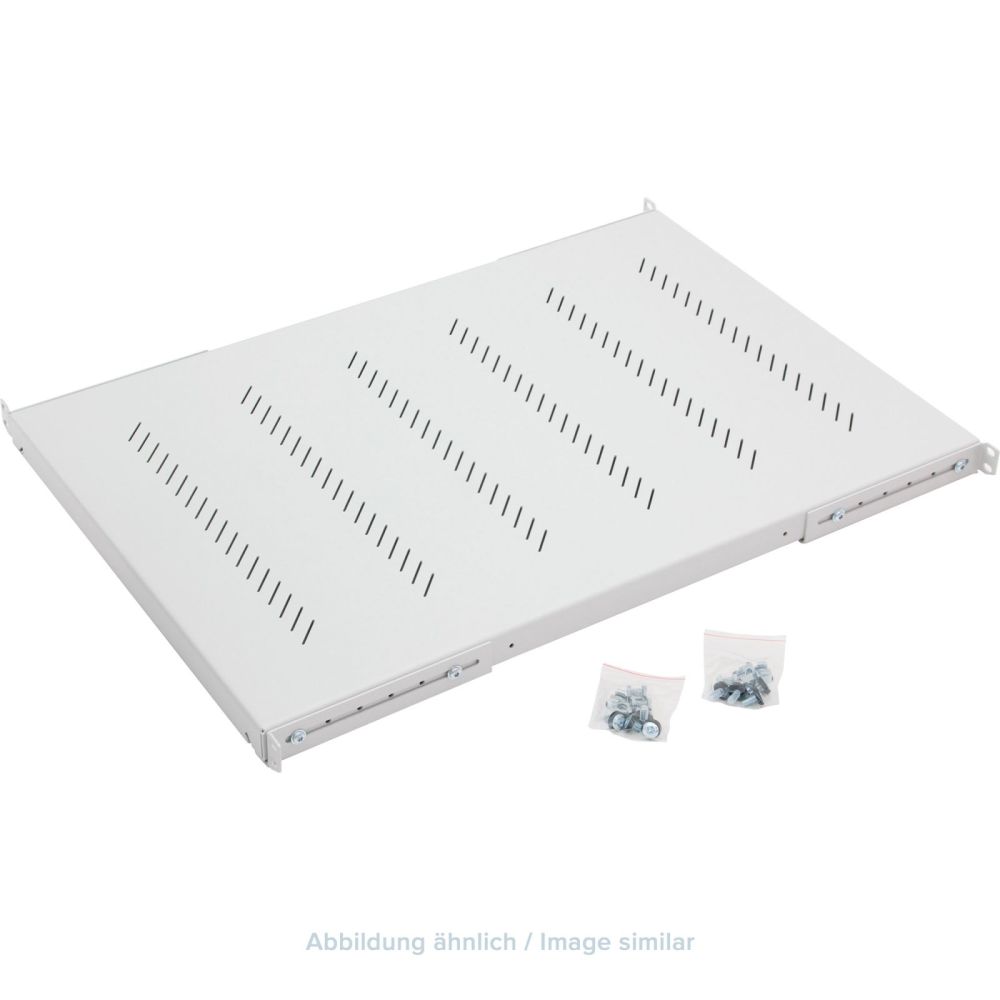

Triton RAC-UP-650-H4 48,3 cm ( 19 inch ) intermediate shelf, 650 mm, front/rear, light gray content_copy

The Triton RAC-UP-650-H4 is a 48,3 cm ( 19 inch ) accessory for server and network enclosures, specifically designed as a shelf base for the secure installation of heavy equipment. With a height unit of 1HE and an installation depth of 502 to 750 mm (distance between front and rear profile rails), it fits into standard 48,3 cm ( 19 inch ) racks and enables the mounting of devices that cannot be directly attached to the rails, such as servers, UPS systems, or other compact units. The product is made of steel sheet and offers a maximum load capacity of 150 kg, making it a robust heavy-duty shelf base. The color is Grey (RAL7035), a standard tone for IT infrastructure components that visually integrates into typical data centers and server rooms.

Applications

The shelf base is suitable for use in 48,3 cm ( 19 inch ) enclosures with a minimum depth of 800 to 900 mm, where the installation depth of the base ranges from 502 to 750 mm. It is mounted to the front and rear profile rails, ensuring a stable installation. The perforated surface of the steel sheet allows for flexible mounting of devices using screws or cable ties, supporting the installation of additional components or cable management. The construction is designed for use in IT and network environments where a secure and load-bearing platform for heavy equipment is required.

Functions and Equipment in Detail

The shelf base is designed as a solid base, ensuring even load distribution. Installation is carried out using M6x10 screws, plastic washers, and M6 cage nuts, which are included in the delivery. Additionally, 4 M5x12 screws are provided for mounting to the rails or for additional connections. The mounting to front and rear profile rails ensures stable anchoring in the rack, allowing the load to be securely supported. The perforated steel sheet construction also provides good ventilation and allows for cable routing or mounting of additional components.

Technology Explained Simply

The load capacity of 150 kg is sufficient for use with heavy IT equipment such as servers or UPS systems. The 1HE height corresponds to the standard for 48,3 cm ( 19 inch ) racks and allows for compact placement in the enclosure. The installation depth of 502 to 750 mm adapts to the dimensions of most standard enclosures, with the front and rear profile rails serving as mounting points. The steel sheet is robust and resistant to mechanical stress. The color RAL7035 is a neutral grey tone that visually integrates into professional IT environments.

Compatibility and Accessories

The shelf base is designed for 48,3 cm ( 19 inch ) enclosures with a minimum depth of 800 to 900 mm. Mounting is done to the front and rear profile rails, enabling universal use in standard racks. The accessory package includes all necessary mounting materials: 8 M6x10 screws, 8 plastic washers, 8 M6 cage nuts, and 4 M5x12 screws. These components are intended for securing the base in the rack and for mounting devices onto the shelf base.

Installation and Mounting

Installation is performed by securing the base to the front and rear 48,3 cm ( 19 inch ) profile rails of the rack. The included screws, washers, and cage nuts enable a secure installation. The perforated surface of the shelf base allows for flexible adaptation to the mounting points of the devices. The installation depth of 502 to 750 mm must be coordinated with the depth of the enclosure to ensure a proper fit. Installation requires no special tools other than a screwdriver or an appropriate wrench.

Operational Advantages

The shelf base provides a stable and load-bearing platform for heavy IT equipment, increasing safety within the rack. The perforated construction allows for good air circulation, supporting device cooling. Mounting to both front and rear profile rails ensures secure installation that remains stable even under vibrations or movements within the enclosure. The included mounting materials simplify installation and reduce the need for additional purchases. The color RAL7035 visually integrates into typical IT infrastructures, ensuring a uniform appearance in the server room.

Technical data
Depth	650mm
Length packaging	0.650m
Height packaging	0.044m
Height unit	1U
Installation system	19" rackmount
Colour	Grey (RAL7035)
Packaging volume	0.0126m³
Distance between front/rear profile rail	395 to 750mm
Material	Sheet steel
Width packaging	0.440m
Max. load-bearing capacity	150kg
Weight	6.380kg

---
