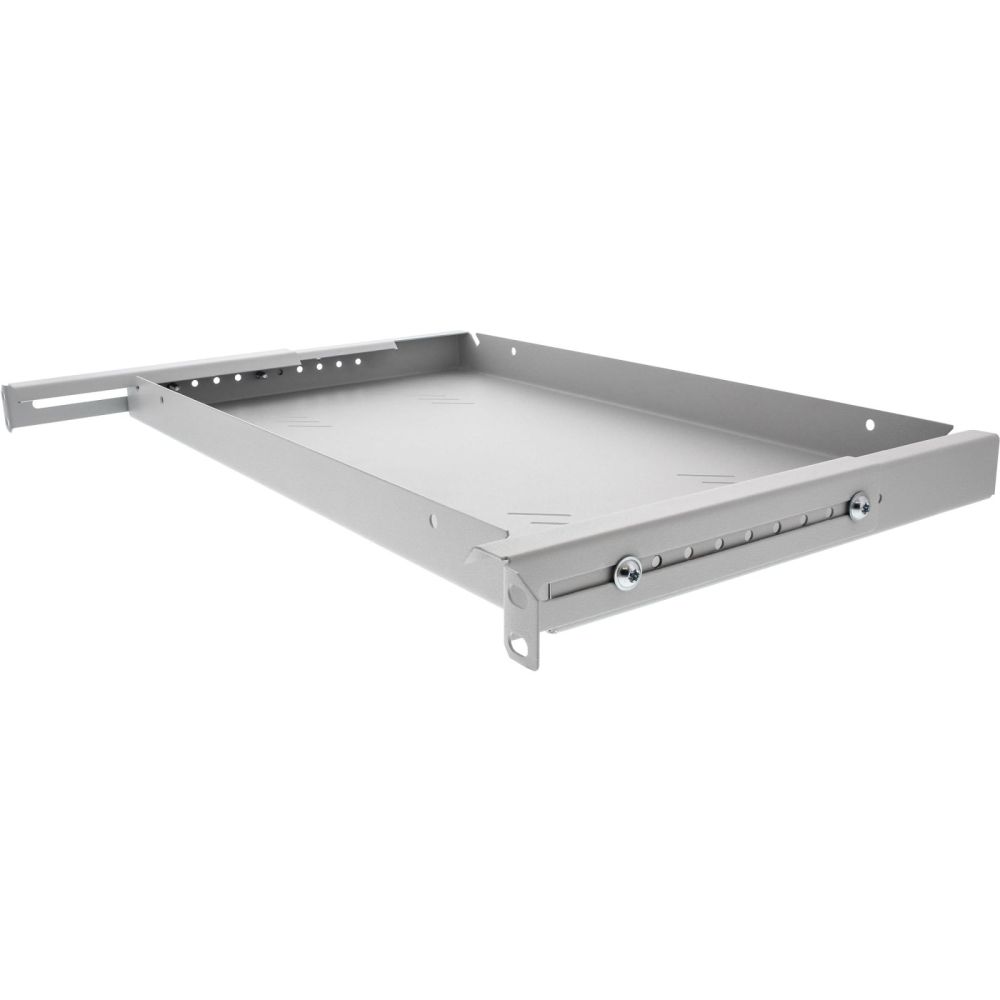

Triton 48,3 cm ( 19 inch ) accessory Shelf, 450mm, front / rear, light gray, content_copy

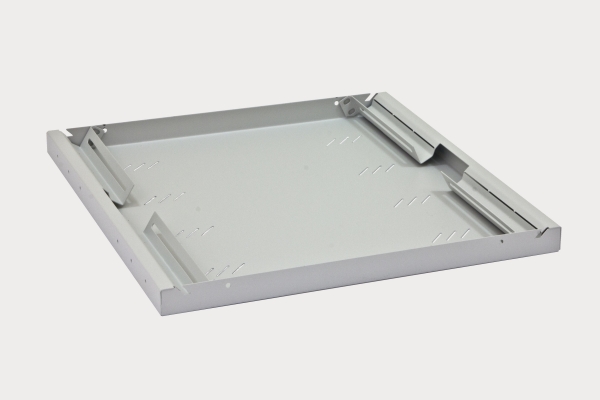

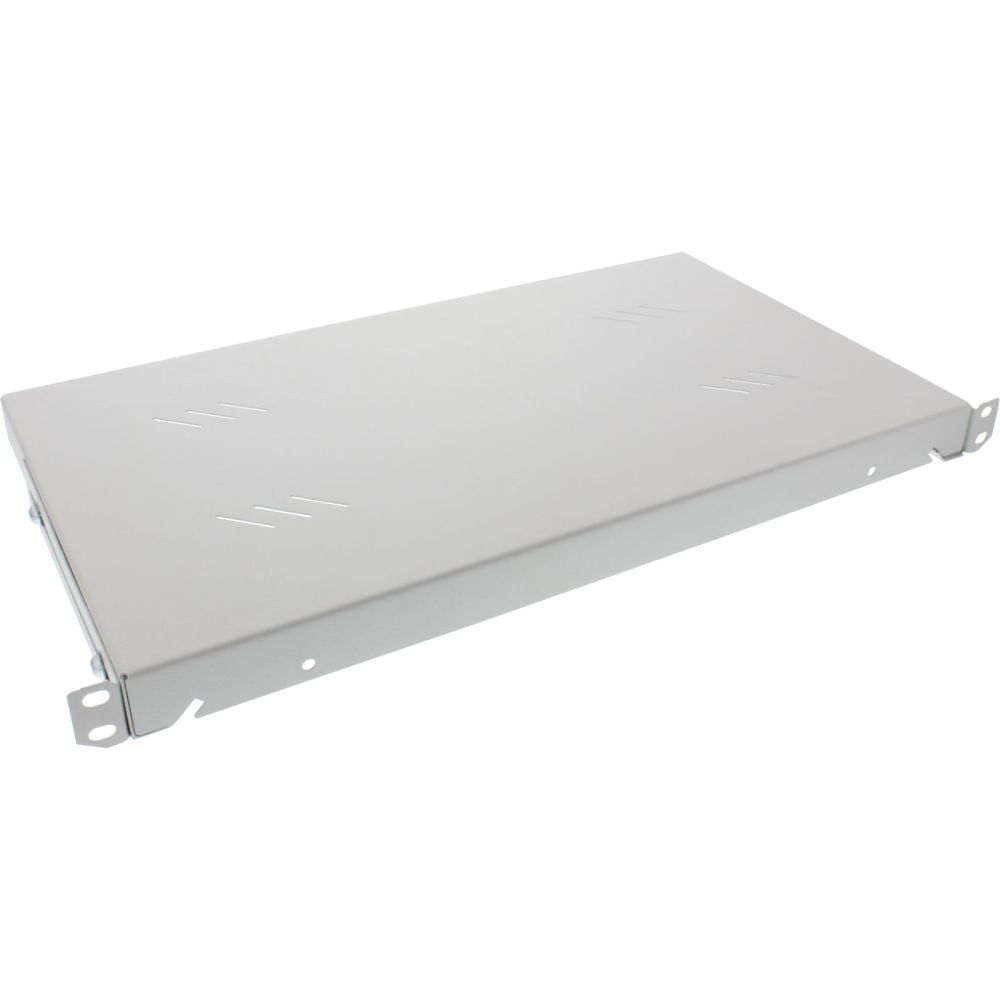

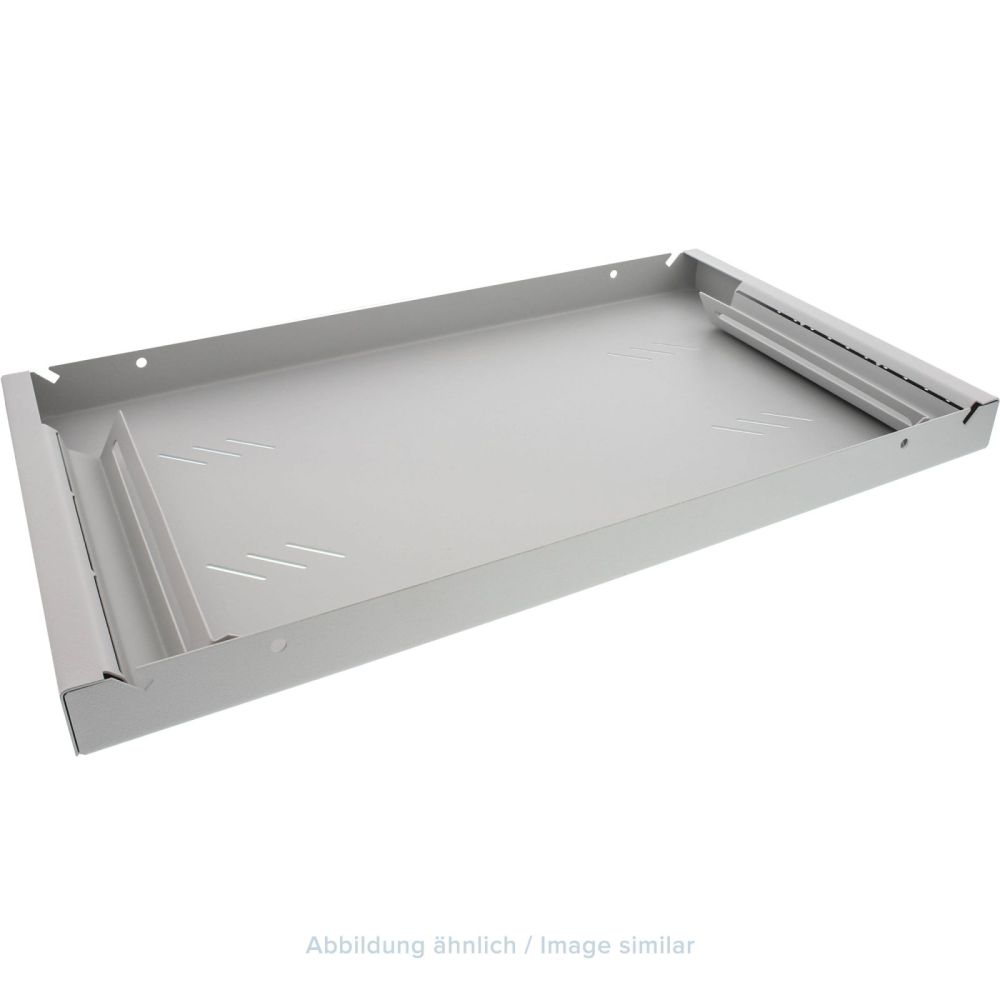

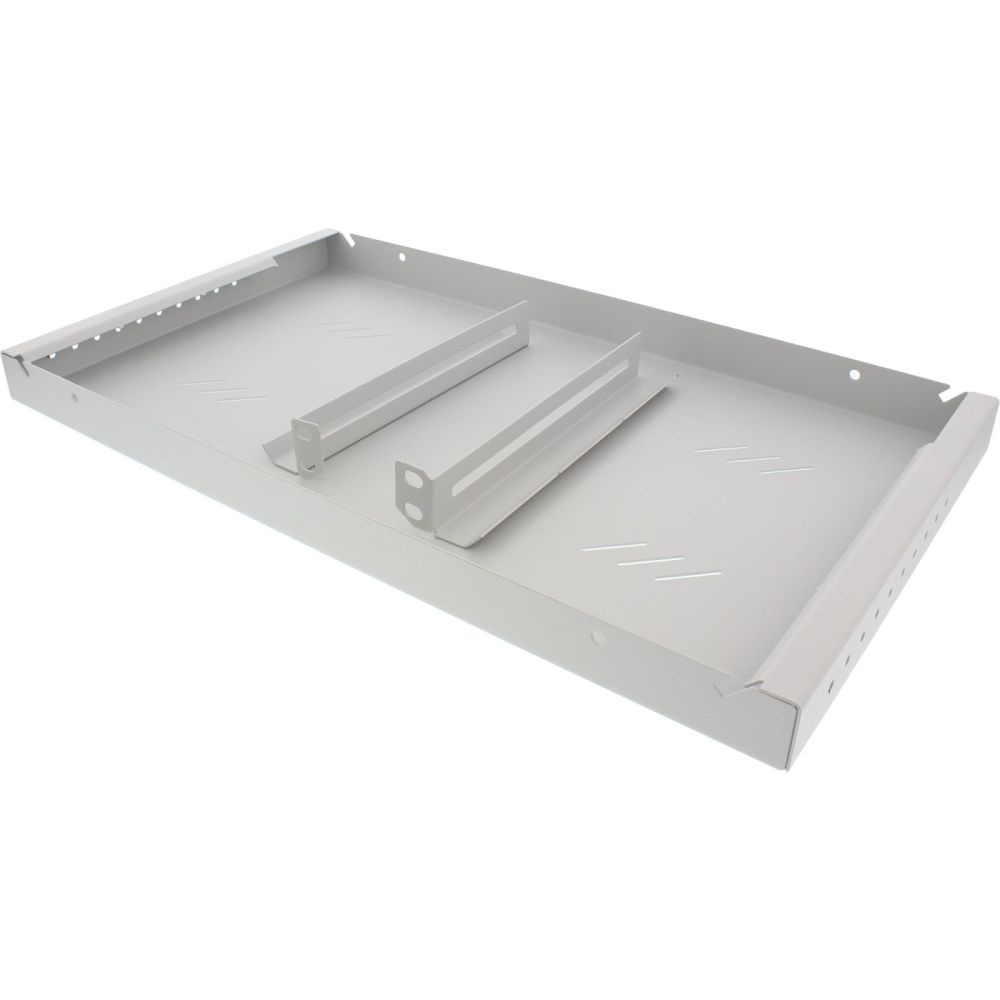

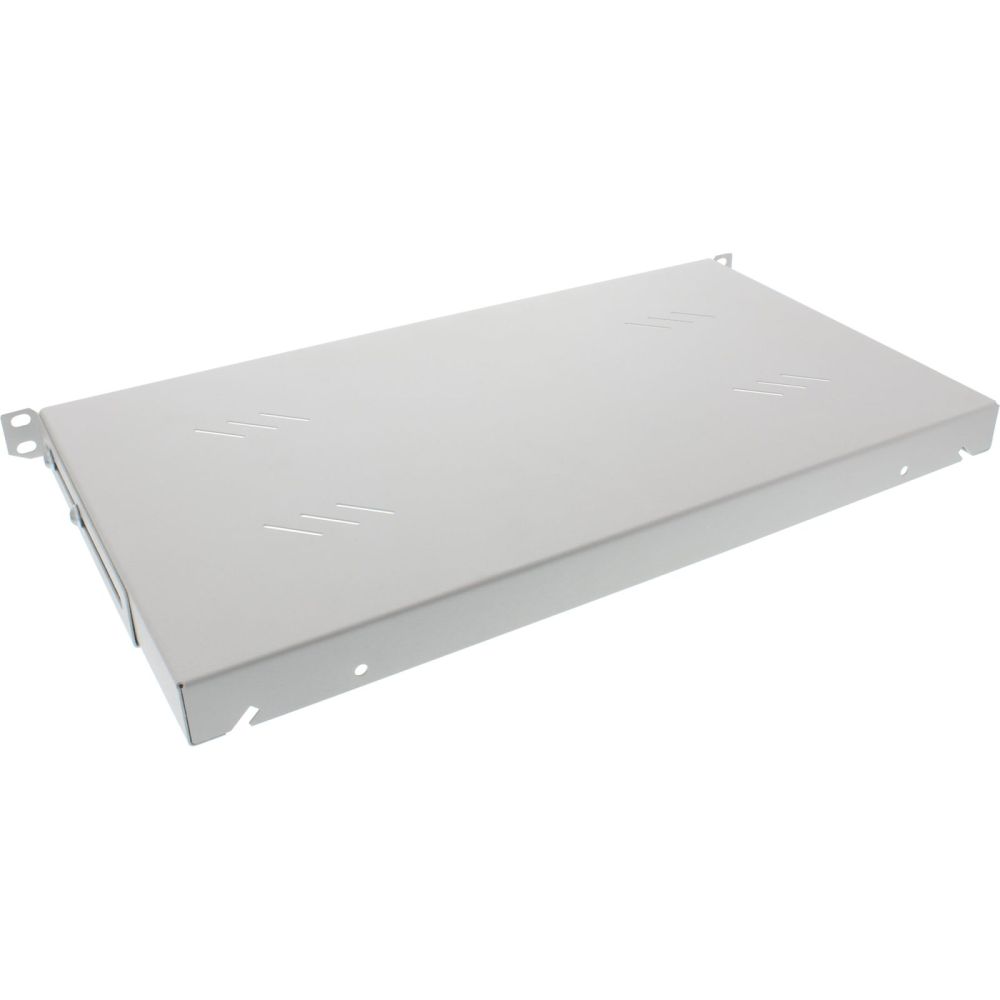

The Triton RAC-UP-450-A4 is a 48,3 cm ( 19 inch ) shelf floor with a height of 1 U, designed for use in standard racks and server enclosure systems. It serves as a stable base for devices that cannot be directly mounted to rack profiles, such as converters, routers, NAS systems, or external USB hard drives. The shelf floor is made of sheet steel and painted in Light Grey (RAL7035), integrating it visually into typical IT and network environments. The depth is 450 mm, making it suitable for devices with corresponding installation depth. The maximum load capacity is 80 kg, with load capacity varying depending on mounting distance: 15 kg at 150 mm, 20 kg at 250 mm, and 50 kg at 350 mm. The shelf floor can be mounted to front and/or rear rack profiles, with the distance between front and rear profile rails ranging from 370 mm to 550 mm.

Applications
This shelf floor is designed for use in IT infrastructures, server rooms, network centers, and other technical facilities where a stable and load-bearing platform is required for non-rack-mountable devices. It is particularly suitable for applications where devices such as external storage, network converters, or small network components must be securely positioned without direct mounting to rack profiles. The perforated surface enables better air circulation and cooling of devices located below.

Functions and Equipment in Detail
The shelf floor features a perforated surface that ensures optimal air circulation, supporting cooling of devices installed below. Mounting is done to front and/or rear rack profiles, with mounting distances ranging from 370 mm to 550 mm. The maximum load capacity of 80 kg is achieved at a distance of 350 mm, with load capacity decreasing for shorter distances.

Technology Explained Simply
The shelf floor is made of sheet steel, ensuring high mechanical stability and durability. The Light Grey color (RAL7035) is standard in IT and server technology, contributing to a uniform visual appearance. The perforated surface improves air circulation, which is especially important for devices generating high heat. Mounting is done via pre-formed brackets attached to the rack profiles. The load capacity of 80 kg depends on the distance between mounting points: the greater the distance, the higher the load capacity. The maximum depth of 450 mm allows installation of devices with corresponding installation depth.

Compatibility and Accessories

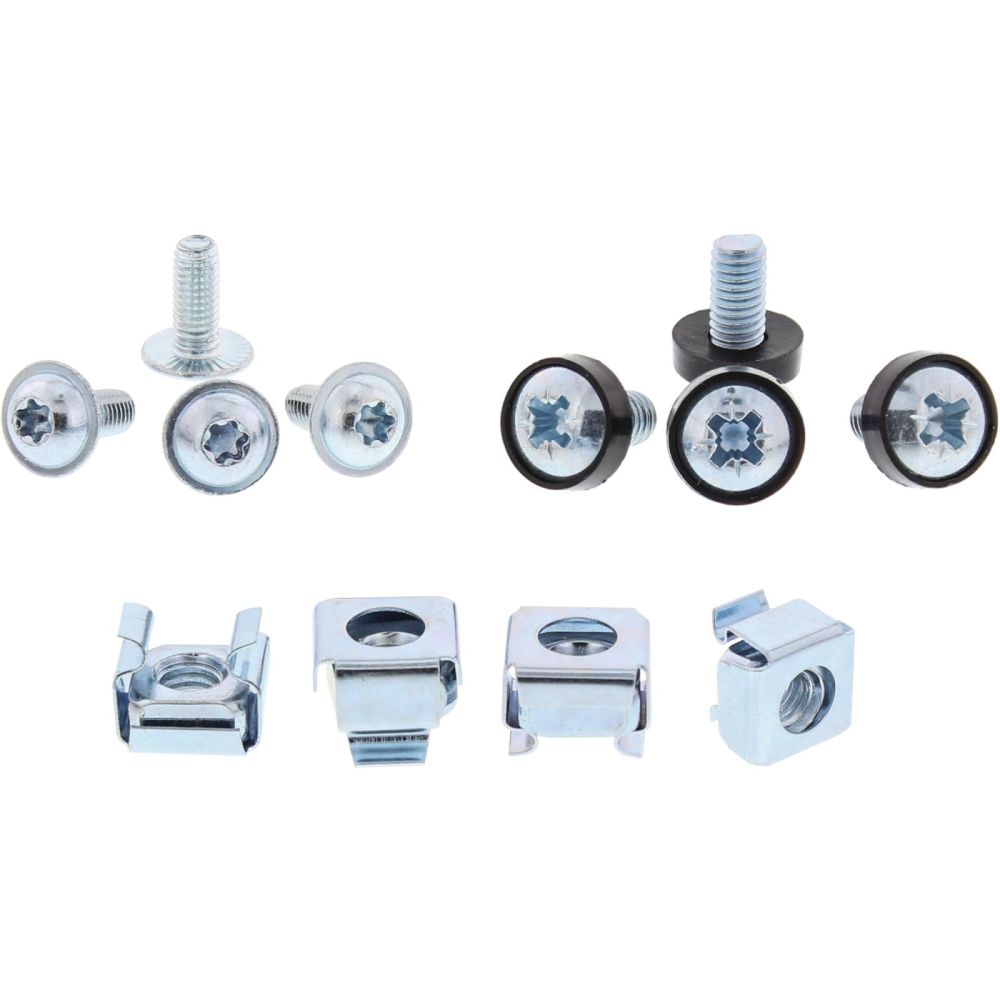

The shelf floor is designed for 48,3 cm ( 19 inch ) rack systems and can be mounted to front and/or rear rack profiles. It is compatible with standard rack profiles and is supplied with mounting materials enabling attachment to the profiles. Mounting is done using screws, plastic washers, and cage nuts designed for securing to the profiles. The delivery includes 8x M6x10 mm screws, 8x plastic washers, 8x M6 cage nuts, 8x M5x12 screws, and 4x rear brackets. These components enable secure and stable installation of the shelf floor in the rack.

Installation and Mounting

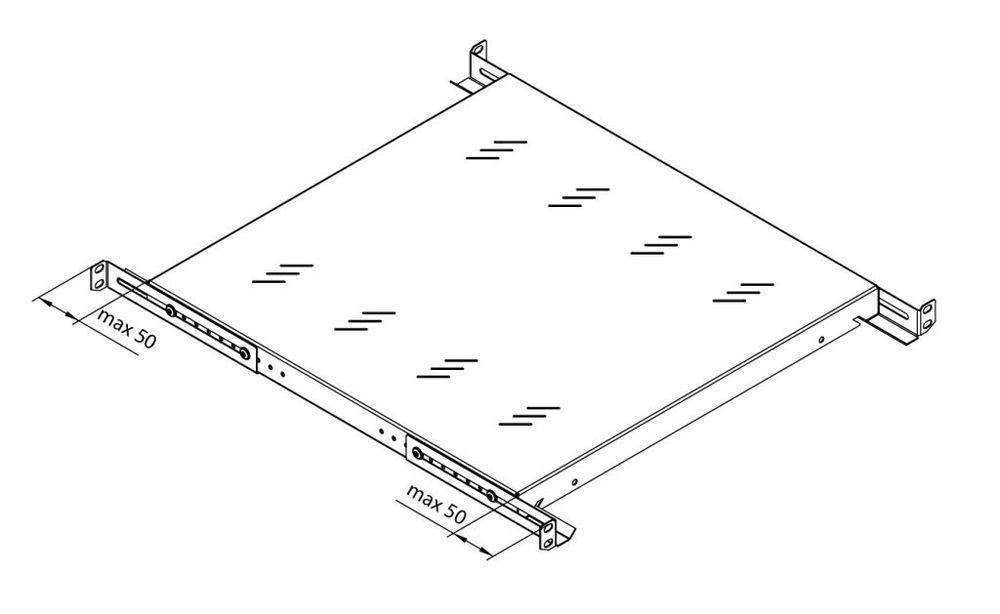

Installation involves securing the pre-formed brackets to the front and/or rear rack profiles. The brackets are designed to attach to the profiles, with distances between 370 mm and 550 mm. The provided screws, washers, and cage nuts ensure secure fastening. Installation is simple and requires no additional tools beyond a screwdriver. The perforated surface facilitates mounting of devices that need to be attached to the underside of the shelf floor.

Operational Advantages
The shelf floor provides a stable and load-bearing platform for devices that cannot be directly mounted to rack profiles. The perforated surface improves cooling and air circulation, potentially extending the lifespan of devices installed below. Installation is simple and requires no additional tools. The maximum load capacity of 80 kg at a distance of 350 mm makes the shelf floor a robust solution for a wide range of applications. The Light Grey color (RAL7035) ensures uniform visual appearance in IT and server environments.

Technical data
Weight	2.530kg
Installation system	19" rackmount
Colour	Grey (RAL7035)
Width packaging	0.440m
Length packaging	0.450m
Material	Sheet steel
Distance between front/rear profile rail	370 to 550mm
Max. load-bearing capacity	80kg
Depth	450mm
Height packaging	0.047m
Height unit	1U
Packaging volume	0.0093m³

---
